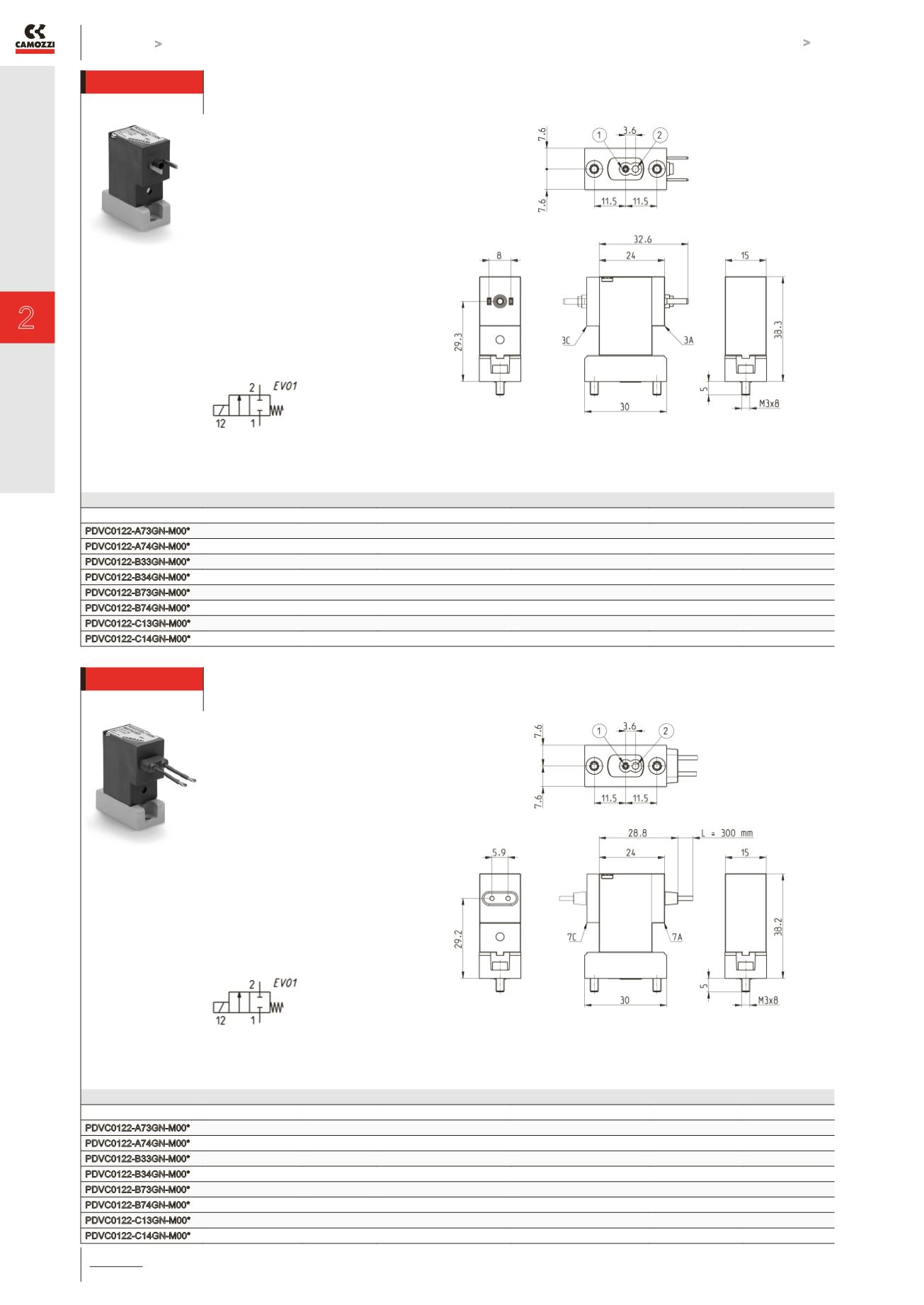

2/2 NC solenoid valve, DIN EN 175 301-803-C (8 mm)
Supplied with:
1x seal
2x M3x8 UNI 5931 screws
NOTE IN THE TABLE BELOW:
* to complete the code, add
ELECTRICAL CONNECTION
(3A or 3C options)
and VOLTAGE
(see CODING EXAMPLE)
Mod. Orifice Ø (mm) kv (l/min) Min/max pressure (bar) Max back pressure (bar) Body material Seal material
PDVC0122-A73GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK FKM
PDVC0122-A74GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK EPDM
PDVC0122-B33GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK FKM
PDVC0122-B34GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK EPDM
PDVC0122-B73GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK FKM
PDVC0122-B74GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK EPDM
PDVC0122-C13GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK FKM
PDVC0122-C14GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK EPDM
NOTE IN THE DRAWING:
1 = INLET PORT
2 = OUTLET PORT
2/2 NC solenoid valve, electrical connection with 300mm cable
Supplied with:
1x seal
2x M3x8 UNI 5931 screws
NOTE IN THE TABLE BELOW:
* to complete the code, add
ELECTRICAL CONNECTION
(7A or 7C options)
and VOLTAGE
(see CODING EXAMPLE)
Mod. Orifice Ø (mm) kv (l/min) Min/max pressure (bar) Max back pressure (bar) Body material Seal material
PDVC0122-A73GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK FKM
PDVC0122-A74GN-M00* 0.8 0.25 0 ÷ 7.0 1.2 PEEK EPDM
PDVC0122-B33GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK FKM
PDVC0122-B34GN-M00* 1.2 0.55 0 ÷ 4.5 1.2 PEEK EPDM
PDVC0122-B73GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK FKM
PDVC0122-B74GN-M00* 1.6 0.65 0 ÷ 4.0 1.2 PEEK EPDM
PDVC0122-C13GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK FKM
PDVC0122-C14GN-M00* 2.0 0.80 0 ÷ 3.0 1.2 PEEK EPDM
NOTE IN THE DRAWING:
1 = INLET PORT
2 = OUTLET PORT
