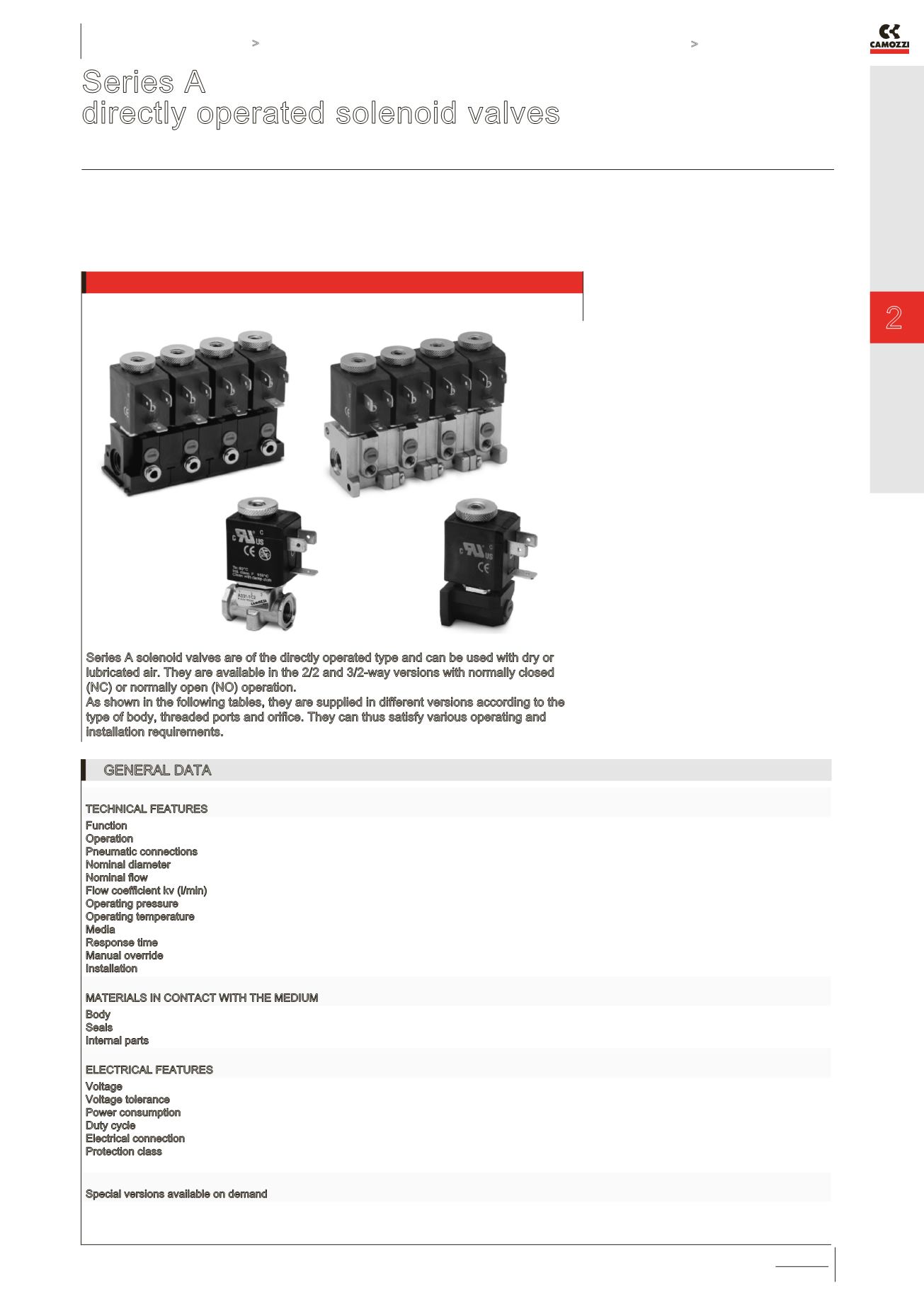

Series A solenoid valves

C_FLUID CONTROL CATALOGUE

2018

CONTROL >

CONTROL

Series A

directly operated solenoid valves

2/2-way - Normally Closed (NC) and Normally Open (NO)

3/2-way - Normally Closed (NC) and Normally Open (NO)

Series A solenoid valves are of the directly operated type and can be used with dry or

lubricated air. They are available in the 2/2 and 3/2-way versions with normally closed

(NC) or normally open (NO) operation.

As shown in the following tables, they are supplied in different versions according to the

type of body, threaded ports and orifice. They can thus satisfy various operating and

installation requirements.

The solenoid can be easily and quickly

replaced without interfering with the

pressurised part of the valve.

On the same mechanical part different

types of solenoids can be interchanged.

The choice of solenoids determines the

performance of the solenoid valve in terms

of consumption and pressure.

Ports: M5, G1/8,

R1/8, cartridge ø4

Bistable version

also available (with

magnetic memory)

GENERAL DATA

TECHNICAL FEATURES

Function

Operation

Pneumatic connections

Nominal diameter

Nominal flow

Flow coefficient kv (l/min)

Operating pressure

Operating temperature

Media

Response time

Manual override

Installation

2/2 NC - 3/2 NC - 2/2 NO - 3/2 NO

direct acting poppet type

M5, G1/8, R1/8 threads - ø4 fitting - CNOMO interface

1.5 … 2.5 mm

40 … 130 Nl/min (air @ 6 bar ΔP 1 bar)

0.62 … 2.0

-0.9 … 15 bar

0°C ÷ 60°C (with dry air -20°C)

filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas

ON <15 msec - OFF <25 msec

see tables

in any position

MATERIALS IN CONTACT WITH THE MEDIUM

Body

Seals

Internal parts

nickel-plated brass - PBT technopolymer

HNBR, FKM

stainless steel

ELECTRICAL FEATURES

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

12 … 110 V DC - 24 … 380 V AC 50/60 Hz

±10% (DC) / -15% ÷ +10% (AC)

3 … 5 W (DC) / 3.5 … 7 VA (AC)

ED 100%

F (155°C)

DIN 43650 connector, (A, B Shape)

IP65 with connector

Special versions available on demand
