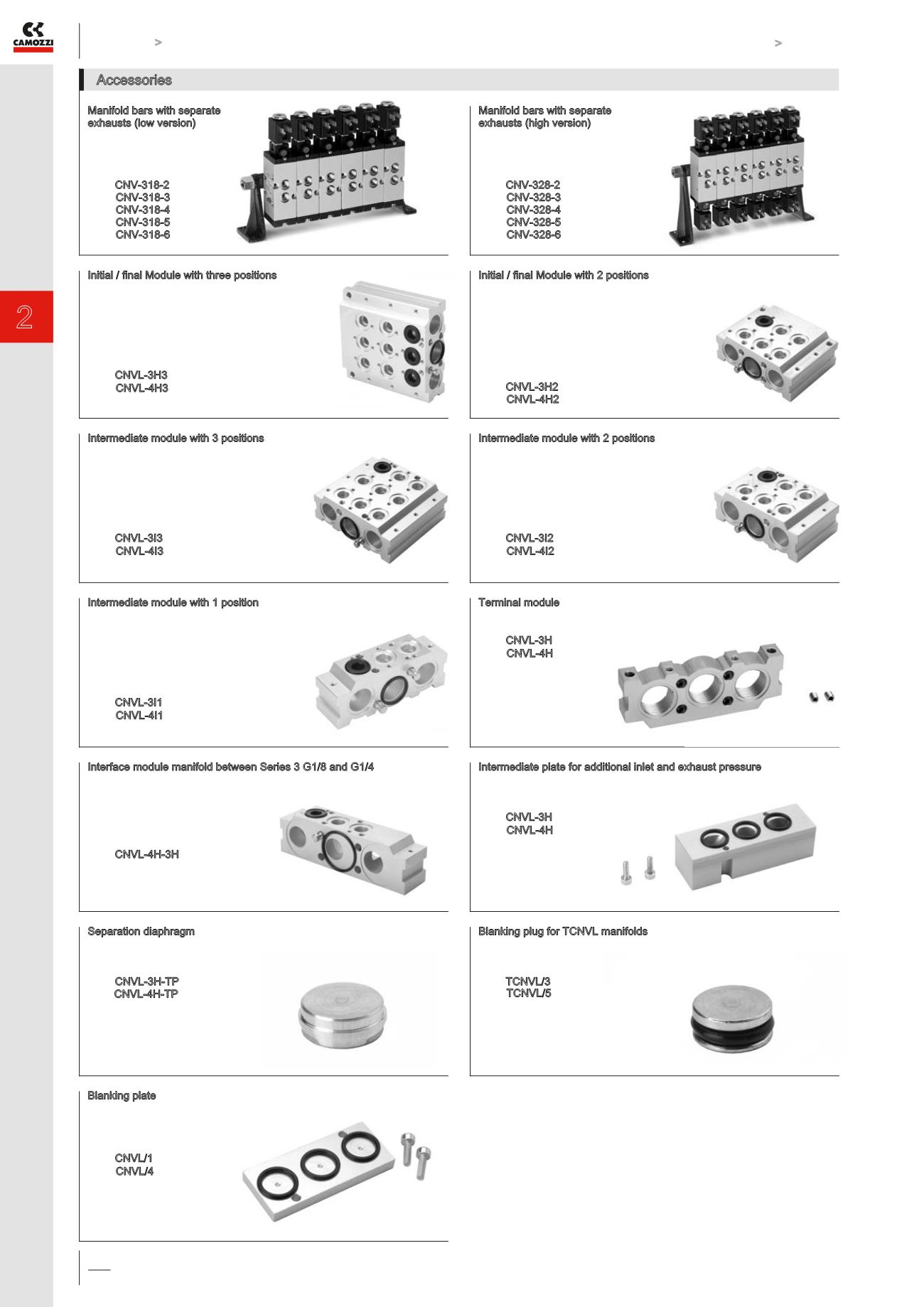

SHORT FORM CATALOGUE > Release 8.8
2
CONTROL
Products designed for industrial applications.
General terms and conditions for sale are available on
CONTROL > Series 3
Intermediate module with 1 position
The following is supplied:
3x interface O-Rings manifold/manifold,
2x fixing nuts,
2x junction plugs,
3x interface seals valve/manifold (CNVL-3I1)
or 1x interface seal valve/manif. (CNVL-4I1),
2x fixing screws for valves
Mod. CNVL-3I1
CNVL-4I1
Terminal module
The following is supplied:
2x fixing nuts
Mod. CNVL-3H
CNVL-4H
Interface module manifold between Series 3 G1/8 and G1/4
The following is supplied:
3x interface seal,
2x screws,
2x pins,
4x plugs,
6x O-Rings
Mod. CNVL-4H-3H
Intermediate plate for additional inlet and exhaust pressure
The following is supplied:
3x O-Rings,
2x fixing screws
Mod. CNVL-3H
CNVL-4H
Separation diaphragm
For separation of channel: 1 - 3 - 5.
The following is supplied:
1x diaphragm
Mod. CNVL-3H-TP for Series 3, G1/8
CNVL-4H-TP for Series 3, G1/4
Blanking plate
Accessory for Series CNVL manifolds
The following is supplied:
2x fixing screws,
3x O-Rings
Mod. CNVL/1
CNVL/4
Blanking plug for TCNVL manifolds
The following is supplied:
1x blanking plug,
1x O-Ring
Mod. TCNVL/3 for Series 3, G1/8
TCNVL/5 for Series 3, G1/4
Accessories
Initial / final Module with 2 positions
Initial module with 2 positions
The following is supplied:
3x interface O-Rings manifold/manifold,
2x fixing nuts,
2x junction plugs,
6x interface seals valve/manifold (CNVL-3H2)
or 2x interface seals valve/manif. (CNVL-4H2),
4x fixing screws for valves
Mod. CNVL-3H2
CNVL-4H2
Manifold bars with separate
exhausts (low version)
The following is supplied:
2x feet, 1x manifold,
1x inlet fitting, 1x plug,
4x washers
Mod. CNV-318-2
CNV-318-3
CNV-318-4
CNV-318-5
CNV-318-6
Manifold bars with separate
exhausts (high version)
The following is supplied:
2x feet, 1x manifold,
1x inlet fitting, 1x plug,
4x washers
Mod. CNV-328-2
CNV-328-3
CNV-328-4
CNV-328-5
CNV-328-6
Initial / final Module with three positions
The following is supplied:
3x interface O-Rings manifold/manifold,
2x fixing nuts,
2x junction plugs,
9x interface seals valve/manifold (CNVL-3H3)
or 3x interface seals valve/manif. (CNVL-4H3),
6x fixing screws for valves
Mod. CNVL-3H3
CNVL-4H3
Intermediate module with 3 positions
The following is supplied:
3x interface O-Rings manifold/manifold,
2x fixing nuts,
2x junction plugs,
9x interface seals valve/manifold (CNVL-3I3)
or 3x interface seals valve/manif. (CNVL-4I3),
6x fixing screws for valves
Mod. CNVL-3I3
CNVL-4I3
Intermediate module with 2 positions
The following is supplied:
3x interface O-Rings manifold/manifold;
2x fixing nuts,
2x junction plugs,
6x interface seals valve/manifold (CNVL-3I2)
or 2x interface seals valve/manif. (CNVL-4I2),
4x fixing screws for valves
Mod. CNVL-3I2
CNVL-4I2
