SHORT FORM CATALOGUE > Release 8.8
2
CONTROL
Products designed for industrial applications.
General terms and conditions for sale are available on

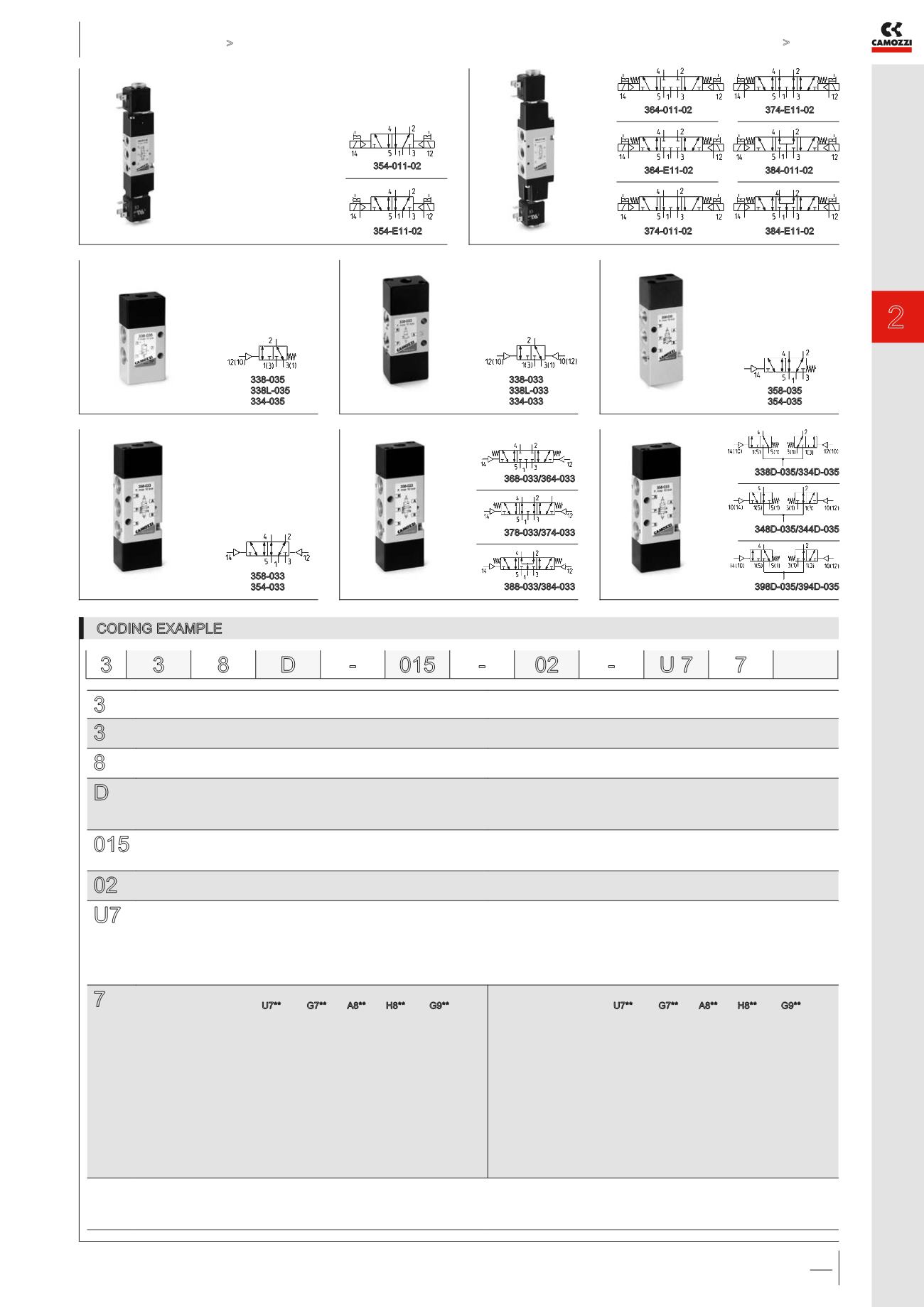

CONTROL > Series 3
Mod. 354-011-02
Mod. 354-E11-02
Mod. 374-E11-02
Mod. 384-011-02
Mod. 384-E11-02
Mod. 364-011-02
Mod. 364-E11-02
Mod. 374-011-02
Mod. 338-035
338L-035
334-035
Mod. 358-035
354-035
Mod. 338-033
338L-033
334-033
Mod. 358-033
354-033
Mod. 368-033/364-033
Mod. 378-033/374-033
Mod. 388-033/384-033
Mod. 338D-035/334D-035
Mod. 348D-035/344D-035
Mod. 398D-035/394D-035
CODING EXAMPLE
3 SERIES
3 NUMBER OF WAYS - POSITIONS:
3 = 3/2 NC - 4 = 3/2 NO - 5 = 5/2 - 6 = 5/3 CC - 7 = 5/3 CO - 8 = 5/3 CP - 9 = 1x3/2 NC + 1x3/2 NO
8 PORTS:
8 = G1/8 - 4 = G1/4
D VERSION:
= standard
D = double valve 2x3/2
L = for manifold assembly (only for solenoid valves 3/2 with G1/8 ports)
015 ACTUATION:
011 = double solenoid - 015 = single solenoid, spring return - 016 = single solenoid, pneumatic spring return
E11 = double solenoid external servo-command - E15 = single solenoid, external servo-command - 033 = pneumatic pneumatic - 035 = pneumatic spring
02 SOLENOID INTERFACE:
02 = mech. sol. 22 x 22
U7 ENCAPSULATING MATERIAL / SOLENOID DIMENSIONS:
A8 = PPS / 30 x 30
G7 = PA / 22 x 22
G8 = PA / 30 x 30 (solo 24 V DC)
G9 = PA / 22 x 58
H8 = PA 6 V0 / 30 x 30
U7 = PET / 22 x 22
7 SOLENOID VOLTAGE:
U7** G7** A8** H8** G9**
B 24V AC 50/60Hz - - 5VA 5,3VA -
C 48V AC 50/60Hz - - - 5,3VA -
D 110V AC 50/60Hz - - 5VA 5,3VA -
E 230V AC 50/60Hz - - 5VA 5,3VA -
F 380V AC 50/60Hz 7VA 7VA - - -
H 24V 50/60Hz 3,5VA 3,5VA - - -
12V DC 3,1W 3,1W - - -
K 72V DC 4,8W 4,8W - - -
110V AC 50/60Hz 3,8VA 3,8VA - - -
125V AC 50/60Hz 5,5VA 5,5VA - - -
K1* 72V DC 5,6W 5,6W - - -
110V AC 50/60Hz 5,8VA 5,8VA - - -
125V AC 50/60Hz 8,3VA 8,3VA - - -
J 230V AC 50/60Hz 3,5VA 3,5VA - - -
240V AC 50/60Hz 4VA 4VA - - -
U7** G7** A8** H8** G9**
J 230V AC 50/60Hz 3,5VA 3,5VA - - -
240V AC 50/60Hz 4VA 4VA - - -
1 6V DC 5,1W 5,1W - - -
2 12V DC 5W 5W - - -
3 24V DC 5W 5W 4W 5,4W 4/2W
4 48V DC 5,3W 5,3W 4W - -
6 110V DC 4,2W 4,2W - - -
7 24V DC 3,1W 3,1W - - -
48V AC 50/60Hz 3,5VA 3,5VA - - -
71* 24V DC 3,1W 3,1W - - -
48V AC 50/60Hz 3,5VA 3,5VA - - -
9 48V DC 3,1W 3,1W - - -
10 110V DC 3,2W 3,2W - - -
* = Only for valve models NO in line
** = Substitute 0 with letter or number at the beginning of the line
TYPE OF MANUAL OVERRIDE:
= bistable, standard
IL = bistable, lever type (available on demand)
IM = monostable (available on demand)
3 3 8 D - 015 - 02 - U 7 7
