www.camozzi.com.Series TC shut-off micro-valves
C_FLUID CONTROL CATALOGUE
2
102
>
2018
CONTROL >
CONTROL

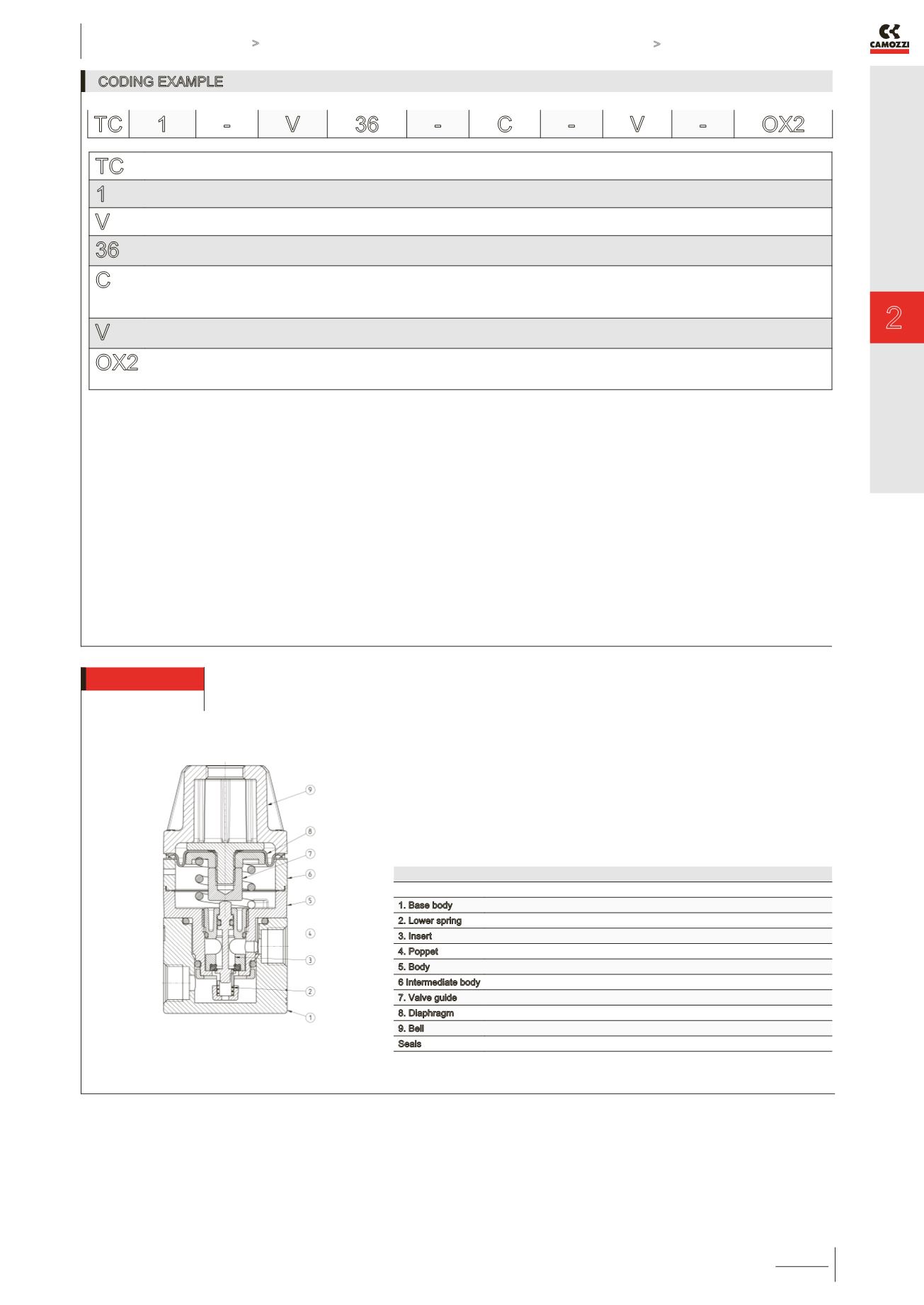

CODING EXAMPLE
TC
SERIES
1
SIZE
V
VALVE
36
CONSTRUCTION:
36 = pneumatic command
C
PORTS:
C = Cartridge
1/8 = G1/8
1/8TF = 1/8NPTF
V
SEALS MATERIAL:
V = FKM
OX2
VERSIONS:
OX1 = for oxygen (non-volatile residue lower than 550 mg/m²)
OX2 = for oxygen (non-volatile residue lower than 33 mg/m²)
TC 1 -
V 36 -
C -
V -
OX2
PARTS
MATERIALS
1. Base body
Anodized aluminium
2. Lower spring
Stainless steel
3. Insert
PPS
4. Poppet
Stainless steel
5. Body
PPS
6 Intermediate body
Anodized aluminium
7. Valve guide
Polyamide
8. Diaphragm
FKM
9. Bell
Polyamide
Seals
FKM
Series TC shut-off micro-valves - materials
