101 / 220
General terms and conditions for sale are available on
www.camozzi.com.Series 8 pneumatically and electropneumatically operated valves
C_FLUID CONTROL CATALOGUE
2
98
>
2018
CONTROL >
CONTROL

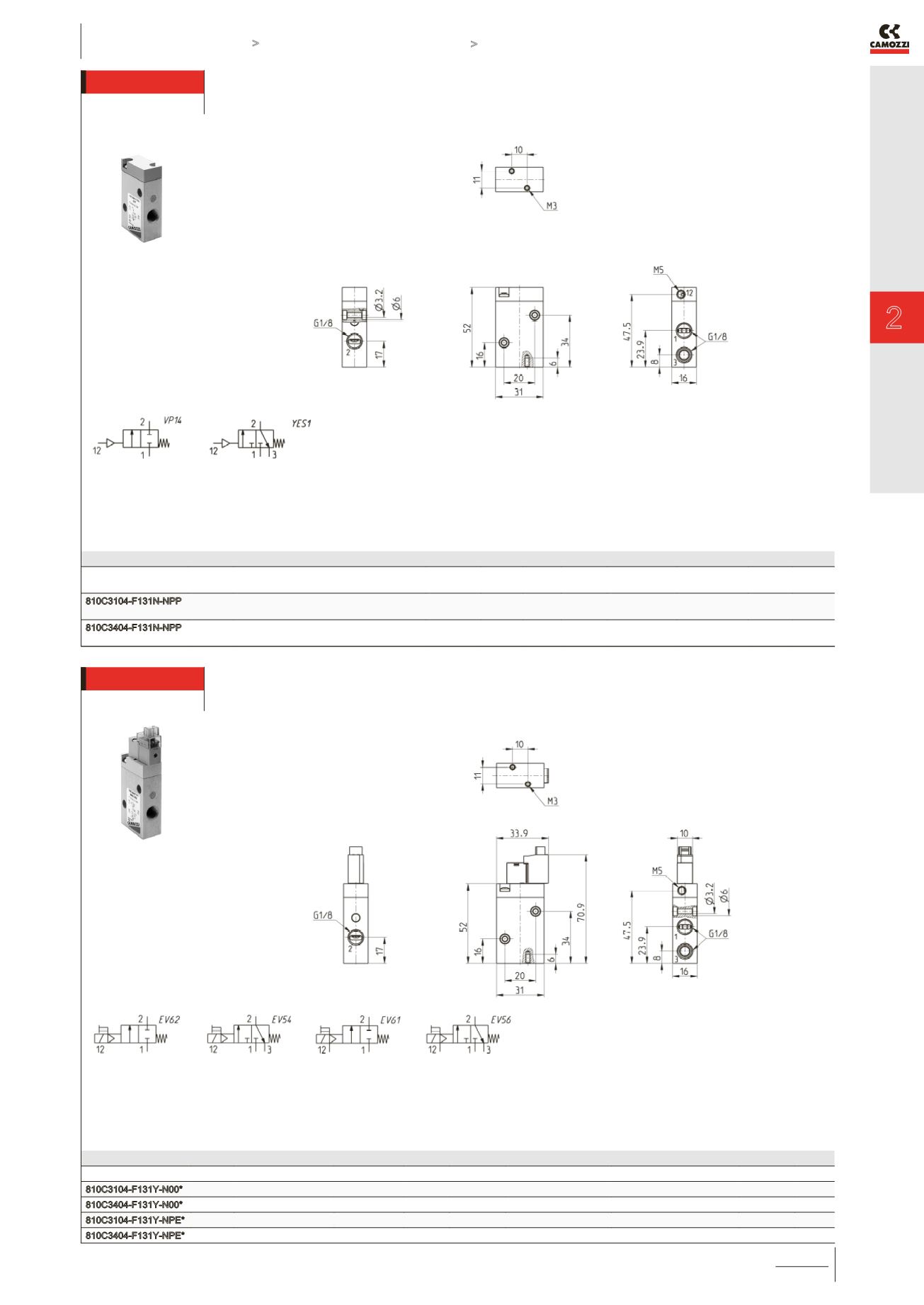

Pneumatic valve size 1 - 2/2- and 3/2-way, NC and NO
Mod.
Function
Pneumatic
connection
Orifice Ø
(mm)
kv
(l/min)
Qn
(Nl/min)
Min÷max
pressure (bar)
Min÷max pilot
pressure (bar)
Pilot
supply
Symbol
810C3104-F131N-NPP 2/2 NC (for the NO function it is required to maintain a
continuos pneumatic pilot supply)
G1/8
5.0
6.5
420
0 ÷ 6
3 ÷ 6
External
VP14
810C3404-F131N-NPP 3/2 NC (for the NO function it is required to maintain a
continuos pneumatic pilot supply)
G1/8
5.0
6.5
420
0 ÷ 6
3 ÷ 6
External
YES1
Solenoid valve size 1, 2/2- and 3/2-way, NC
Mod.
Function Pneumatic connection Orifice Ø (mm) kv (l/min) Qn (Nl/min) Min÷max pressure (bar) Min÷max pilot pressure (bar) Pilot supply Symbol
810C3104-F131Y-N00* 2/2 NC
G1/8
5.0
6.5
420
3 ÷ 6
-
Internal
EV62
810C3404-F131Y-N00* 3/2 NC
G1/8
5.0
6.5
420
3 ÷ 6
-
Internal
EV54
810C3104-F131Y-NPE* 2/2 NC
G1/8
5.0
6.5
420
0 ÷ 6
3 ÷ 6
External
EV61
810C3404-F131Y-NPE* 3/2 NC
G1/8
5.0
6.5
420
0 ÷ 6
3 ÷ 6
External
EV56
* please complete the
code with ELECTRIC
CONNECTION (option 2C
or 2F) and VOLTAGE (see
the CODING EXAMPLE).
