103 / 220
General terms and conditions for sale are available on
www.camozzi.com.Series 8 pneumatically and electropneumatically operated valves
C_FLUID CONTROL CATALOGUE
2
100
>
2018
CONTROL >
CONTROL

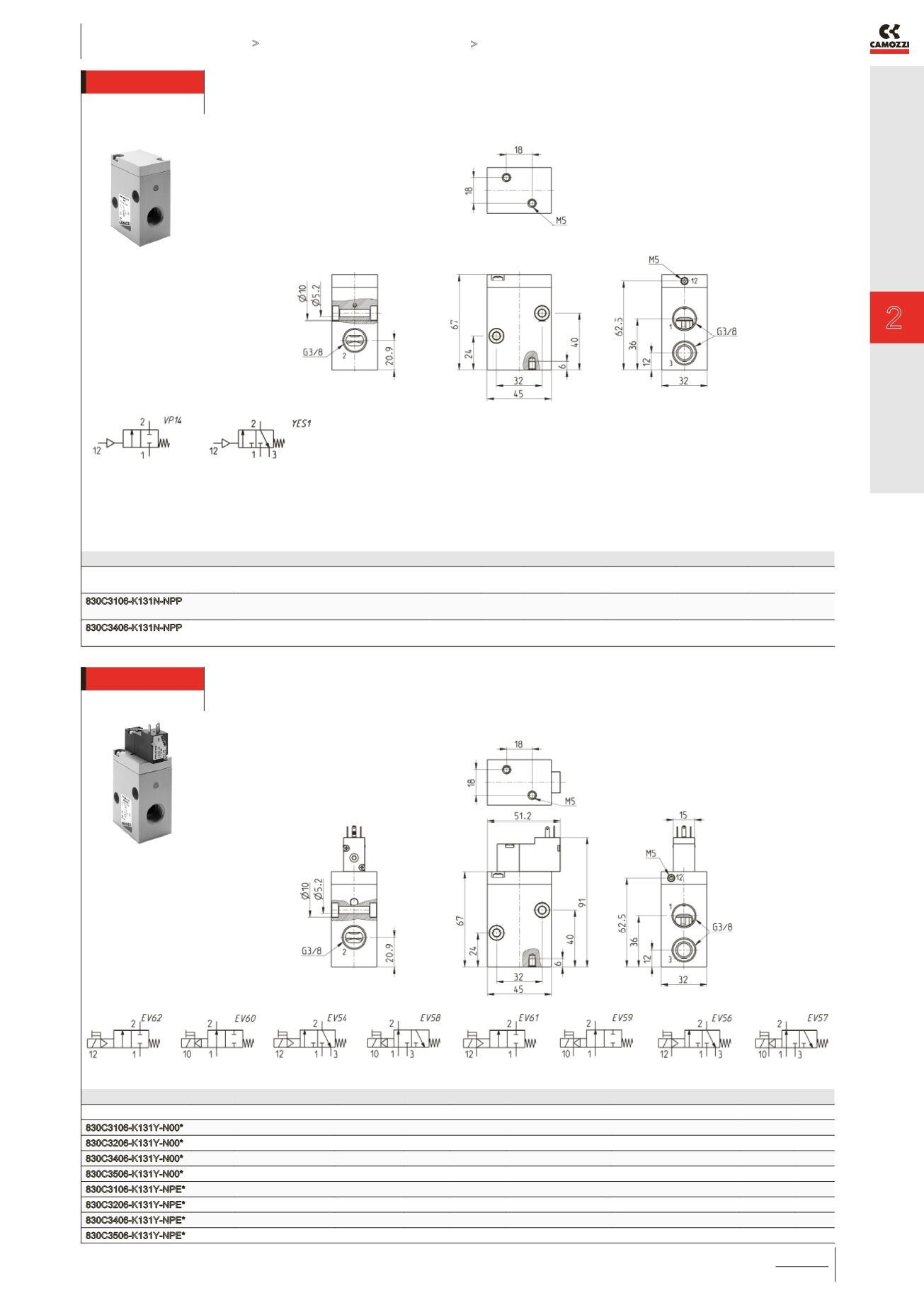

Pneumatic valve size 3 - 2/2- and 3/2-way, NC and NO
Mod.
Function
Pneumatic
connection
Orifice Ø
(mm)
kv
(l/min)
Qn
(Nl/min)
Min÷max
pressure (bar)
Min÷max pilot
pressure (bar)
Pilot
supply
Symbol
830C3106-K131N-NPP 2/2 NC (for the NO function it is required to maintain a
continuos pneumatic pilot supply)
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
VP14
830C3406-K131N-NPP 3/2 NC (for the NO function it is required to maintain a
continuos pneumatic pilot supply)
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
YES1
Solenoid valve size 3, 2/2- and 3/2-way, NC and NO
Mod.
Function Pneumatic connection Orifice Ø (mm) kv (l/min) Qn (Nl/min) Min÷max pressure (bar) Min÷max pilot pressure (bar) Pilot supply Symbol
830C3106-K131Y-N00* 2/2 NC
G3/8
9.0
23
1480
3 ÷ 6
-
Internal
EV62
830C3206-K131Y-N00* 2/2 NO
G3/8
9.0
23
1480
3 ÷ 6
-
Internal
EV60
830C3406-K131Y-N00* 3/2 NC
G3/8
9.0
23
1480
3 ÷ 6
-
Internal
EV54
830C3506-K131Y-N00* 3/2 NO
G3/8
9.0
23
1480
3 ÷ 6
-
Internal
EV58
830C3106-K131Y-NPE* 2/2 NC
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
EV61
830C3206-K131Y-NPE* 2/2 NO
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
EV59
830C3406-K131Y-NPE* 3/2 NC
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
EV56
830C3506-K131Y-NPE* 3/2 NO
G3/8
9.0
23
1480
0 ÷ 6
3 ÷ 6
External
EV57
* please complete the
code with ELECTRIC
CONNECTION (option 3A,
4A o 7A) and VOLTAGE
(see the CODING
EXAMPLE).
