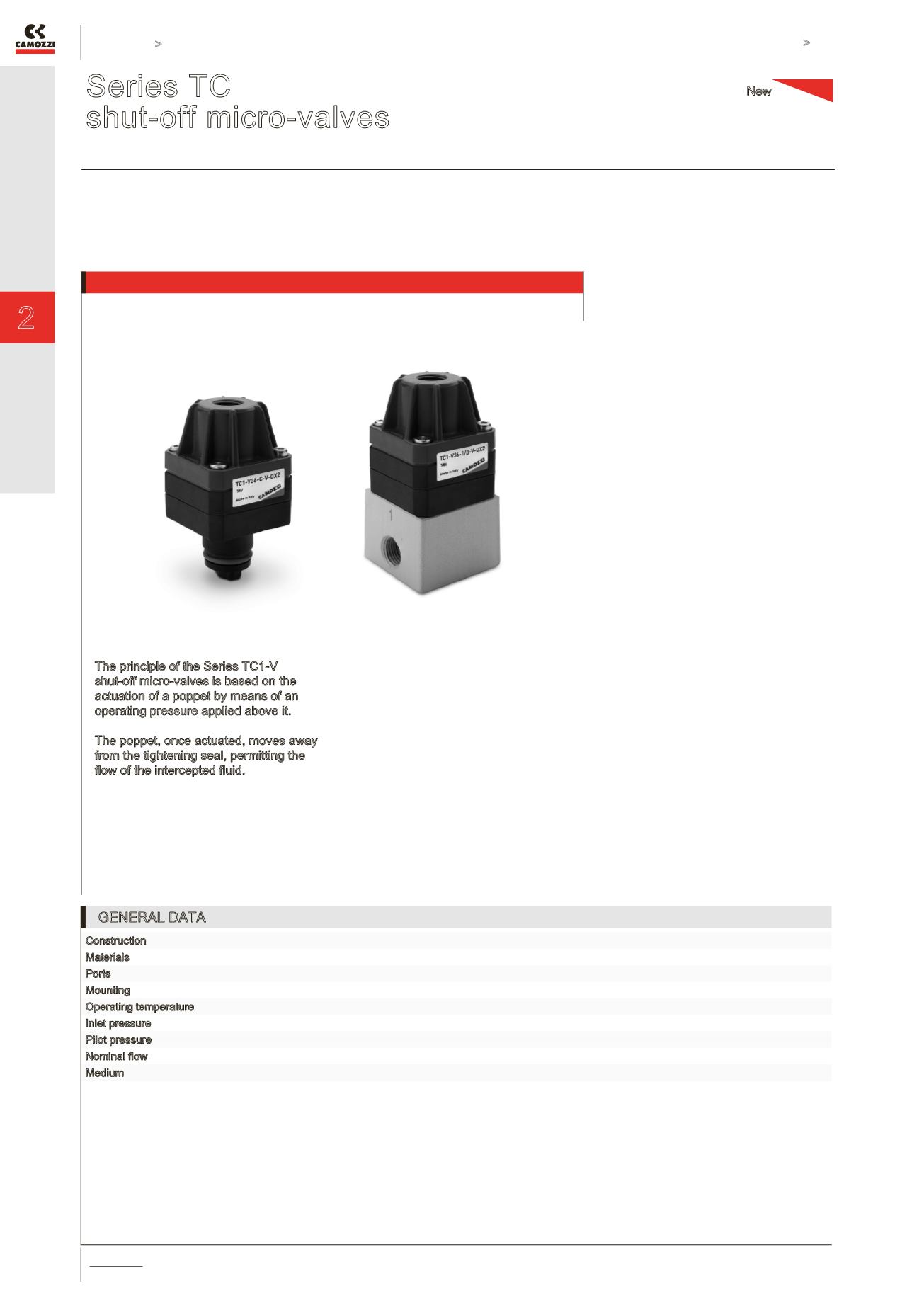

Series TC shut-off micro-valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
101
CONTROL
Series TC
shut-off micro-valves
2/2-way - Normally Closed (NC)
The principle of the Series TC1-V
shut-off micro-valves is based on the
actuation of a poppet by means of an
operating pressure applied above it.
The poppet, once actuated, moves away
from the tightening seal, permitting the
flow of the intercepted fluid.
By removing the actuation pressure, the
poppet repositions itself on the tightening
seal by means of a spring positioned
below that closes the flow of the fluid.
For its realization the most suitable
materials for contact with fluids were
selected. The body in PPS and the
FKM tightening seals guarantee full
compatibility with a wide range of
gaseous fluids.
»
»
Compact design
»
»
High performance
»
»
Ease of installation
»
»
Compatibility between
materials used and
several gaseous fluids
»
»
Suitable for applications
with oxygen
GENERAL DATA
Construction
compact with pre-formed diaphragm
Materials
see the TABLE OF MATERIALS
Ports
cartridge construction in manifold - G1/8 or 1/8NPTF (only for aluminium body version)
Mounting
in-line or cartridge (any position)
Operating temperature -5°C ÷ 50°C
Inlet pressure
0 ÷ 10 bar
Pilot pressure
0.6 ÷ 10 bar
Nominal flow
240 Nl/min (6 bar ∆P 1 bar)
Medium
air, inert/medical gases and oxygen
New
