Series VBO and VBU blocking valves C_FLUID CONTROL CATALOGUE
2
168
> 2018 CONTROL >
CONTROL

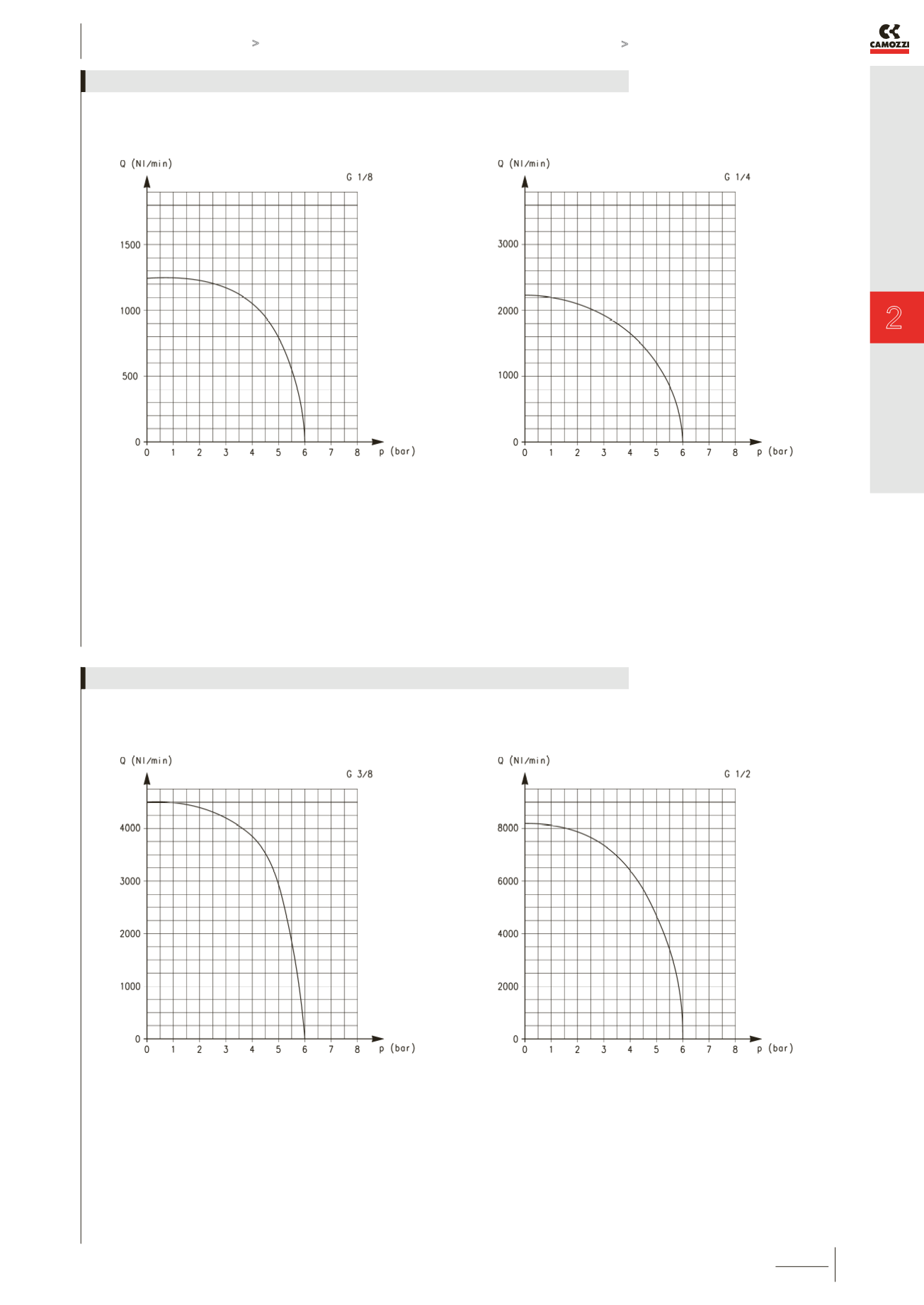

Diagram for valves VBU and VBO with G1/8 ports.
Q is the flow measured in Nl/min and determined with an inlet
pressure of 6 bar.
Diagram for valves VBU and VBO with G1/4 ports.
Q is the flow measured in Nl/min and determined with an inlet
pressure of 6 bar.
FLOW DIAGRAMS OF UNIDIRECTIONAL AND BIDIRECTIONAL VALVES
Diagram for valves VBU and VBO with G3/8 ports.
Q is the flow measured in Nl/min and determined with an inlet
pressure of 6 bar.
Diagram for valves VBU and VBO with G1/2 ports.
Q is the flow measured in Nl/min and determined with an inlet
pressure of 6 bar.
FLOW DIAGRAMS OF UNIDIRECTIONAL AND BIDIRECTIONAL VALVES
