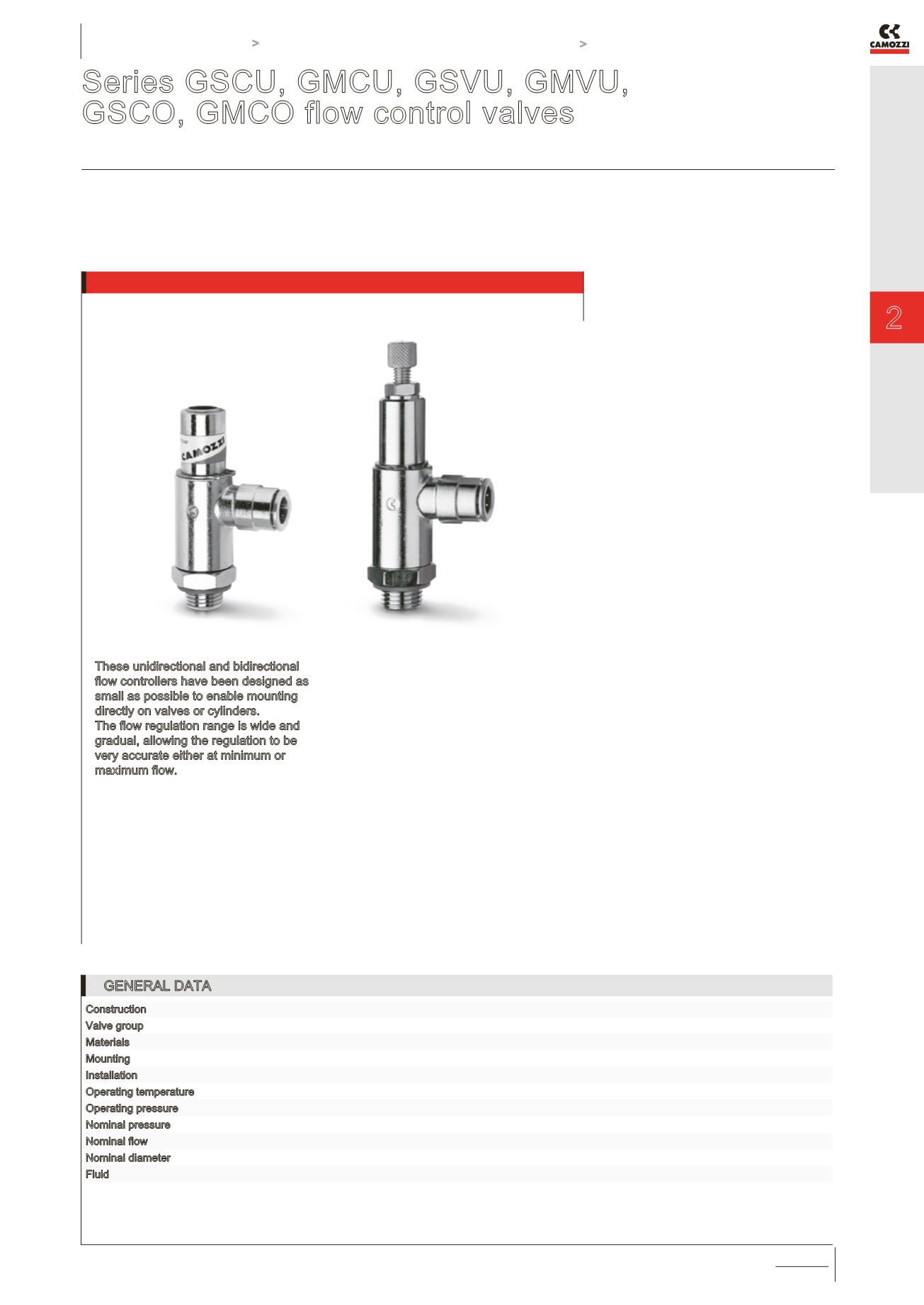

Series GSCU, GMCU, GSVU, GMVU,
GSCO, GMCO flow control valves
Unidirectional and bidirectional banjo flow controllers with nominal
diameter 1,5 - 3,5 - 5 mm
Ports: M5, G1/8 and G1/4
These unidirectional and bidirectional
flow controllers have been designed as
small as possible to enable mounting
directly on valves or cylinders.
The flow regulation range is wide and
gradual, allowing the regulation to be
very accurate either at minimum or
maximum flow.
GENERAL DATA
Construction needle - type
Valve group unidirectional and bidirectional controller
Materials body and screws M5 inox; 1/8 - 1/4 - 3/8 - 1/2 OT58 seals NBR
Mounting by male threaded
Installation in any position
Operating temperature 0°C ÷ 80°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar
Nominal pressure 6 bar
Nominal flow see graph
Nominal diameter M5 = 1.5 mm - G1/8 = 2 mm - G1/4 = 4 mm G3/8 = 7 mm - G1/2 = 12 mm
Fluid filtered air
