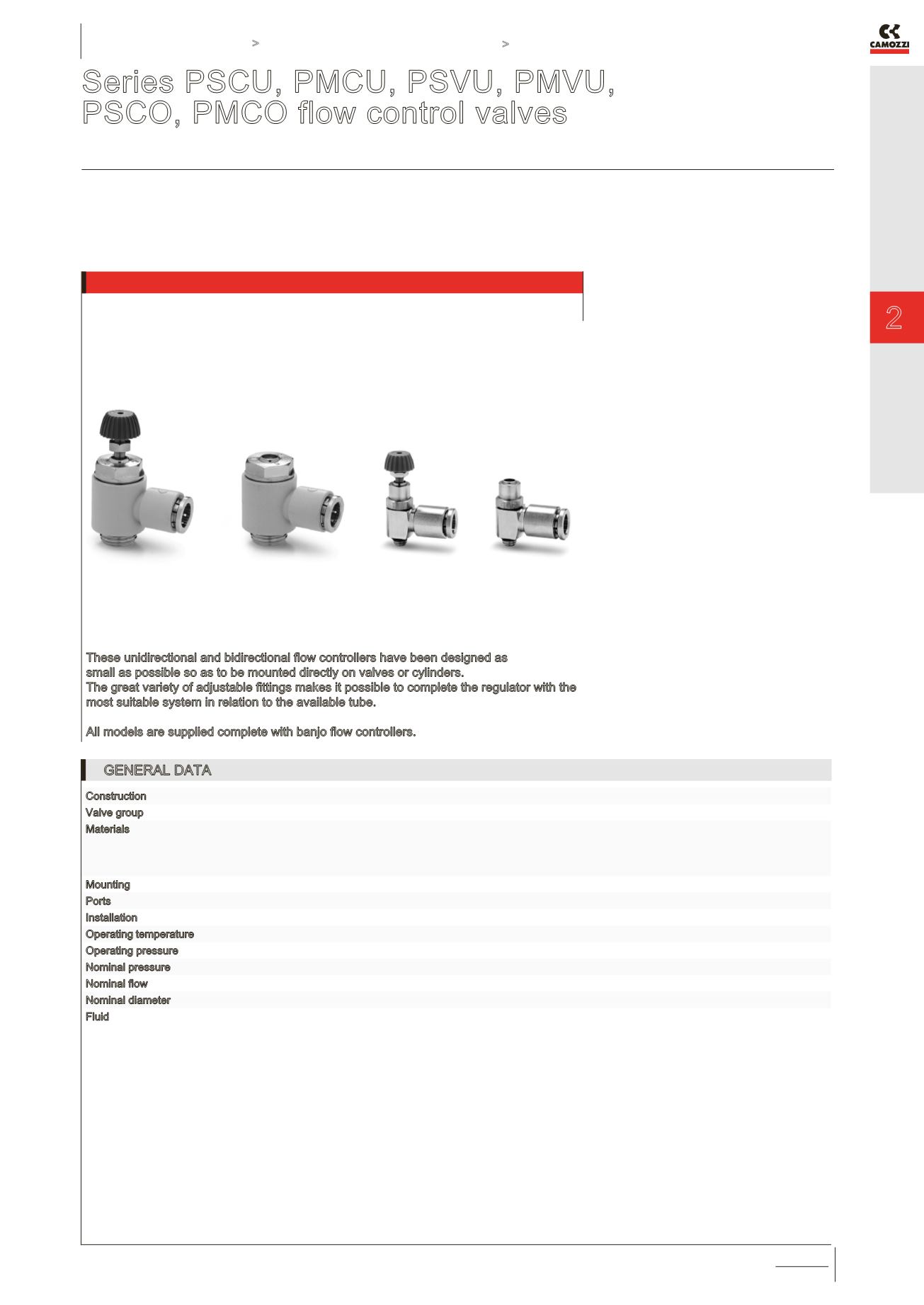

Series PSCU, PMCU, PSVU, PMVU,
PSCO, PMCO flow control valves
Unidirectional and bidirectional flow regulators with banjo in brass
(M5) or in technopolymer (G1/8, G1/4, G3/8)
Ports: M5, G1/8, G1/4, G3/8
These unidirectional and bidirectional flow controllers have been designed as
small as possible so as to be mounted directly on valves or cylinders.
The great variety of adjustable fittings makes it possible to complete the regulator with the
most suitable system in relation to the available tube.
All models are supplied complete with banjo flow controllers.
GENERAL DATA
Construction needle type
Valve group unidirectional and bidirectional controller
Materials body, regulation screw: stainless steel (M5), brass (G1/8 - G1/4 - G3/8)
collet and insert = brass
banjo: brass (M5), technopolymer (G1/8 - G1/4 - G3/8)
controller = technopolymer - seals = NBR
Mounting by male thread
Ports M5 - G1/8 - G1/4 - G3/8
Installation in any position
Operating temperature 0°C ÷ 60°C (with dry air -20°C)
Operating pressure 1 ÷ 10 bar
Nominal pressure 6 bar
Nominal flow see graph
Nominal diameter M5 = 1.5 mm - G1/8 = 2 mm - G1/4 = 4 mm - G3/8 = 7 mm
Fluid filtered air
