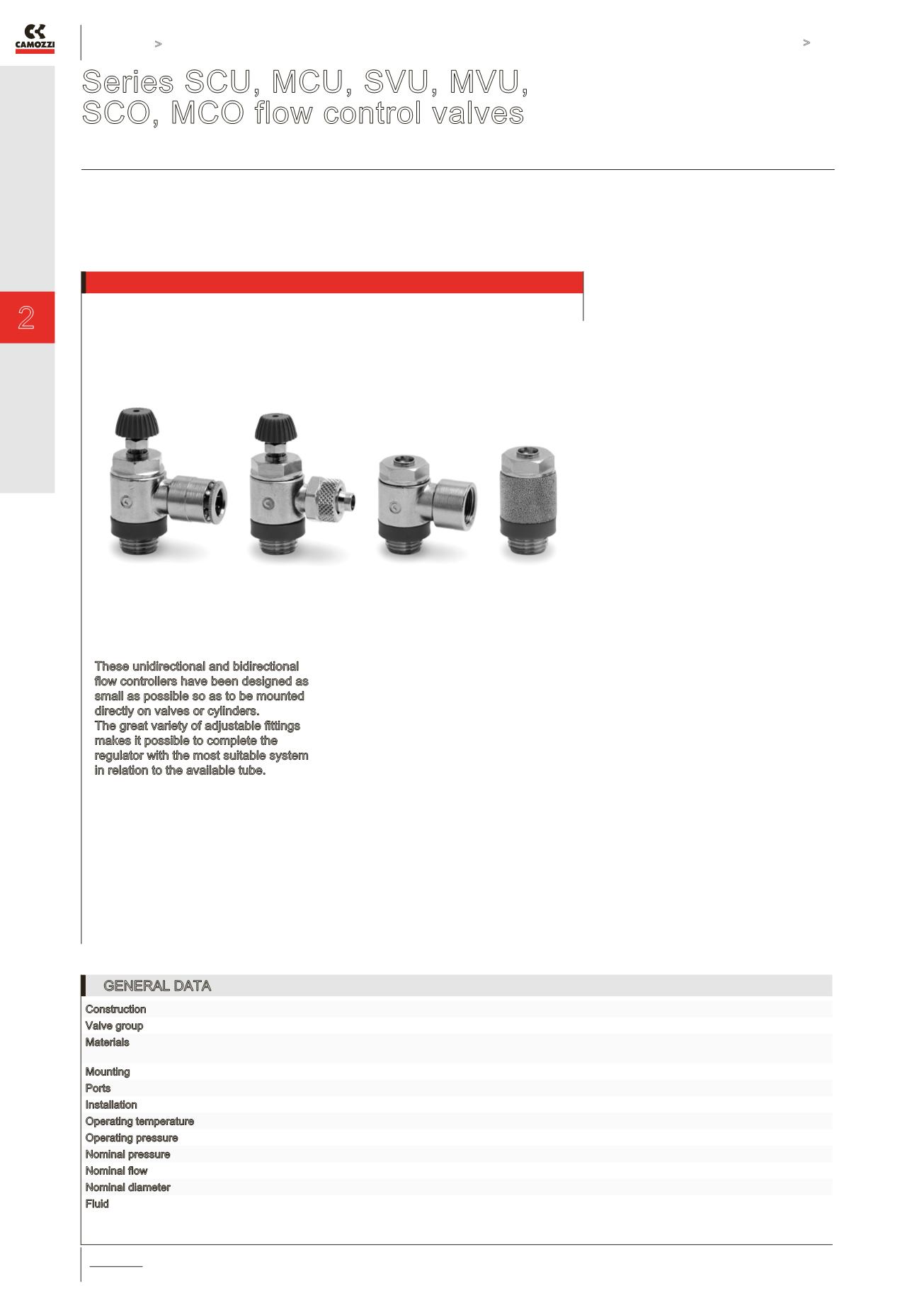

174 / 220
General terms and conditions for sale are available on
www.camozzi.com.2
Series SCU, MCU, SVU, MVU, SCO, MCO valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
171
CONTROL
Series SCU, MCU, SVU, MVU,
SCO, MCO flow control valves
Unidirectional and bidirectional banjo flow control regulators
Ports: M5, G1/8, G1/4, G3/8, G1/2
These unidirectional and bidirectional
flow controllers have been designed as
small as possible so as to be mounted
directly on valves or cylinders.
The great variety of adjustable fittings
makes it possible to complete the
regulator with the most suitable system
in relation to the available tube.
Only the G1/2 model is supplied
complete with banjo flow controllers.
For the other models the banjo flow
controller is to be requested separately.
GENERAL DATA
Construction
needle type
Valve group
unidirectional and bidirectional controller
Materials
body and regulation screw: M5 = stainless steel; 1/8 - 1/4 - 3/8 - 1/2 = OT;
seals = NBR
Mounting
by male thread
Ports
M5 - G1/8 - G1/4 - G3/8 - G1/2
Installation
in any position
Operating temperature 0°C ÷ 80°C (with dry air - 20°C)
Operating pressure 1 ÷ 10 bar
Nominal pressure
6 bar
Nominal flow
see graph
Nominal diameter
M5 = 1,5 mm - G1/8 = 2 mm - G1/4 = 4 mm - G3/8 = 7 mm - G1/2 = 12 mm
Fluid
filtered air
