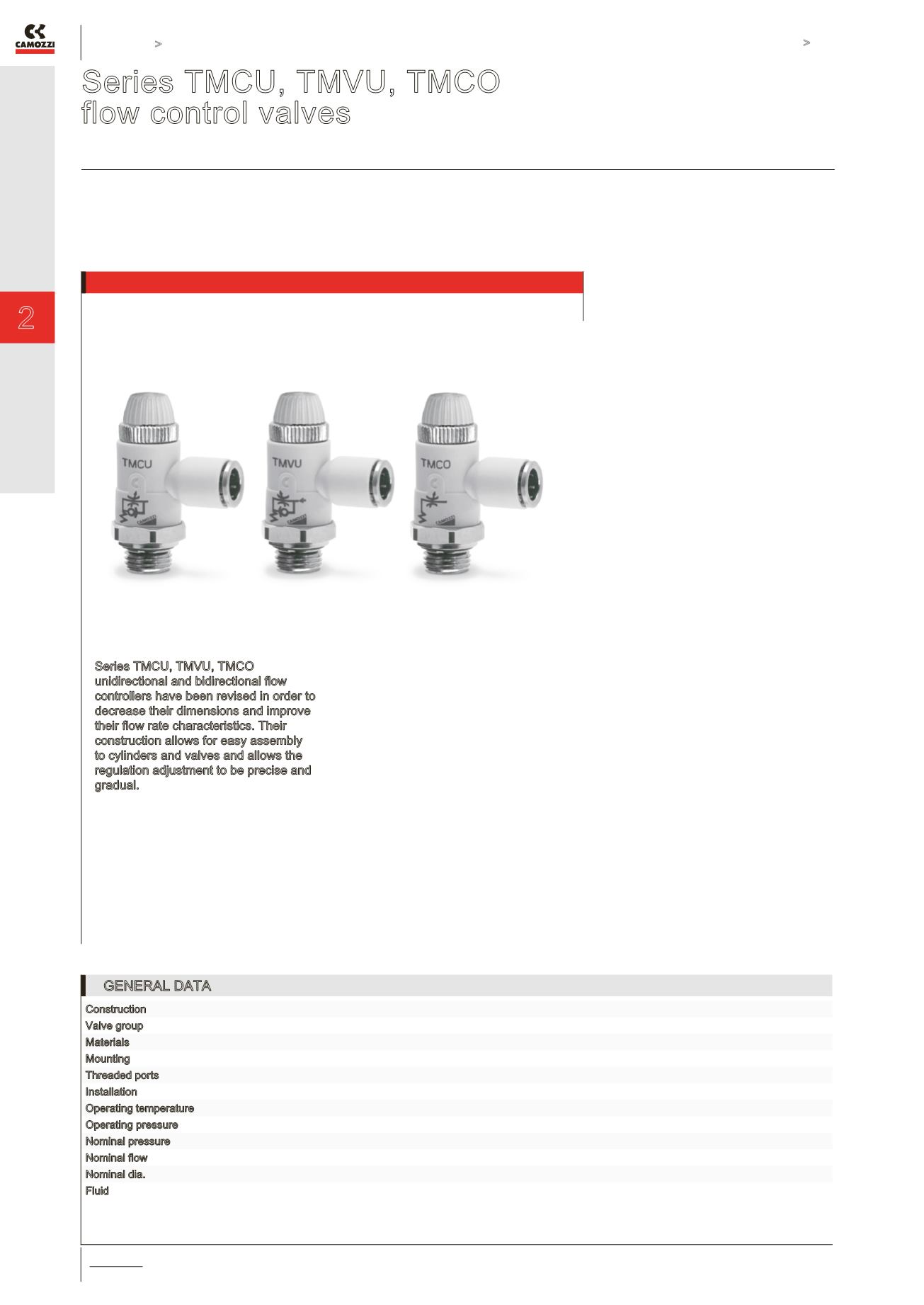

Series TMCU, TMVU, TMCO valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
173
CONTROL
Series TMCU, TMVU, TMCO
flow control valves
Unidirectional and bidirectional banjo flow controllers with nominal
diameter 2 - 3,8 - 5,8 - 8 mm
Ports: G1/8, G1/4, G3/8, G1/2
Series TMCU, TMVU, TMCO
unidirectional and bidirectional flow
controllers have been revised in order to
decrease their dimensions and improve
their flow rate characteristics. Their
construction allows for easy assembly
to cylinders and valves and allows the
regulation adjustment to be precise and
gradual.
GENERAL DATA
Construction
needle - type
Valve group
unidirectional and bidirectional controller
Materials
brass - technopolymer - NBR
Mounting
by male threaded
Threaded ports
G1/8 - G1/4 - G3/8 - G1/2
Installation
in any position
Operating temperature 0°C ÷ 60°C (with dry air -20°C)
Operating pressure 0,5 ÷ 10 bar
Nominal pressure
6 bar
Nominal flow
see graph
Nominal dia.
Tube 4 Ø2 - Tube 6 Ø3,8 - Tube 8 Ø5,8 - Tube 10 and 12 Ø8
Fluid
filtered air
If lubricated air is used, it is recommended to use ISOVG 32 oil. Once applied the lubrication should never be interrupted.
