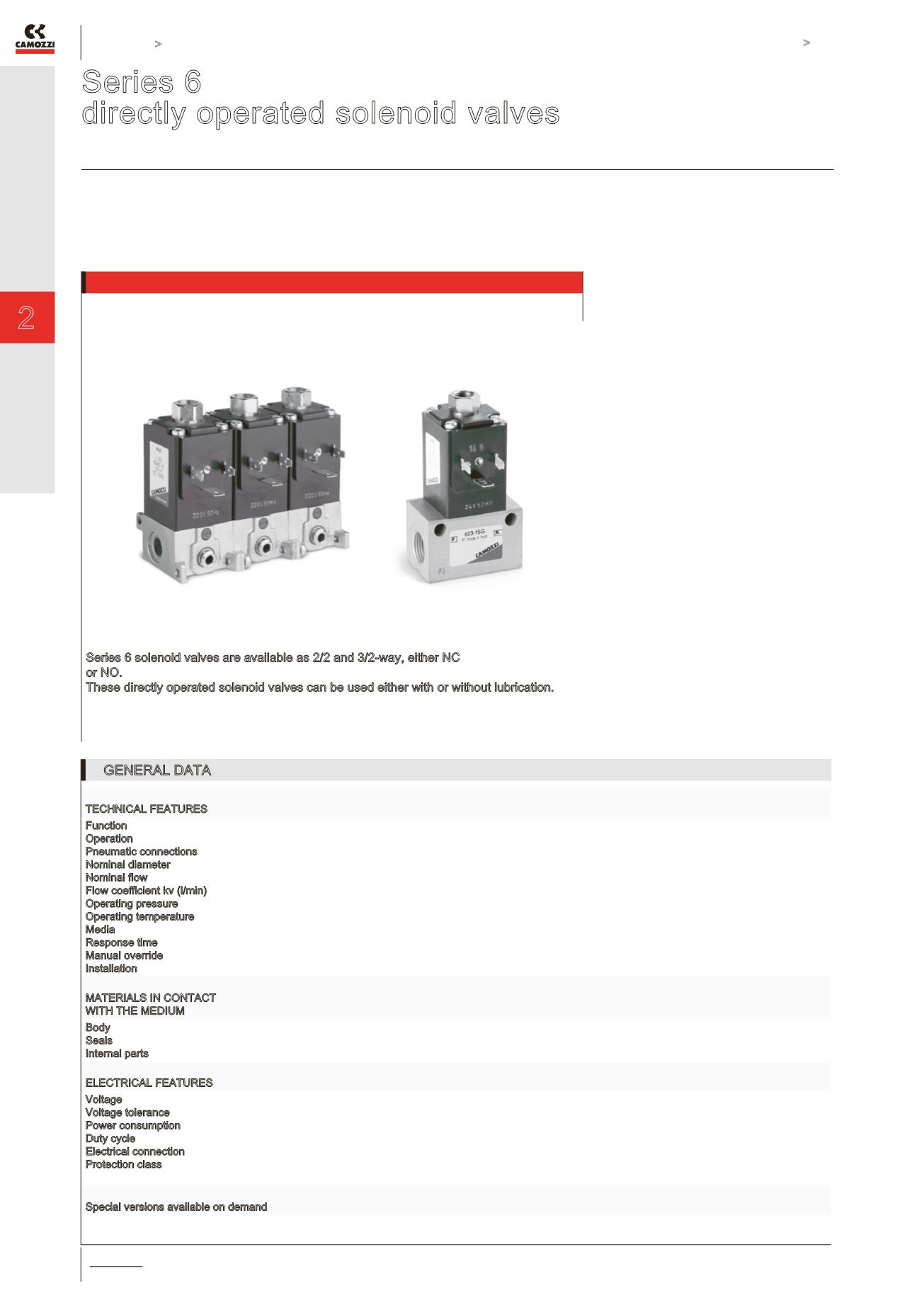

Series 6 solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
79
CONTROL
Series 6
directly operated solenoid valves
2/2-way - Normally Closed (NC)
3/2-way - Normally Closed (NC), Normally Open (NO)
Series 6 solenoid valves are available as 2/2 and 3/2-way, either NC
or NO.
These directly operated solenoid valves can be used either with or without lubrication.
The bodies of these valves can be used
either individually or in manifolds.
The latter are provided with G1/8 threaded
ports or an inbuilt diameter 4 cartridge(G3/8
for 2-way only).
» » Ports: G1/8, G3/8,
cartridge Ø4
»
» Available also in version
for the low temperatures
up to -50°C
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time
Manual override
Installation
2/2 NC - 3/2 NC - 3/2 NO
direct acting poppet type
G1/8, G3/8 threads - ø4 fitting - CNOMO interface
2 … 4 mm
80 … 350 Nl/min (air @ 6 bar ΔP 1 bar)
1.2 … 5.4
0 ÷ 4 … 15 bar
0°C ÷ 60°C (seals in FKM) / -50°C ÷ +50°C (seals in NBR)
filtered air, class 5.4.4 (5.1.4 for versions -50°C) according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
ON <15 msec - OFF <15 msec
see tables
in any position
MATERIALS IN CONTACT
WITH THE MEDIUM
Body
Seals
Internal parts
nickel-plated brass - anodized aluminium
FKM (NBR for versions -50°C)
stainless steel
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
12 … 110 V DC - 24 … 230 V AC 50/60 Hz
±10% (DC) - +10% ÷ -15% (AC)
10 W (DC) - 19 VA (inrush AC), 12 VA (holding AC)
ED 100%
H (180°C)
with connector DIN EN 175 301-803-A
IP65 with connector
Special versions available on demand
