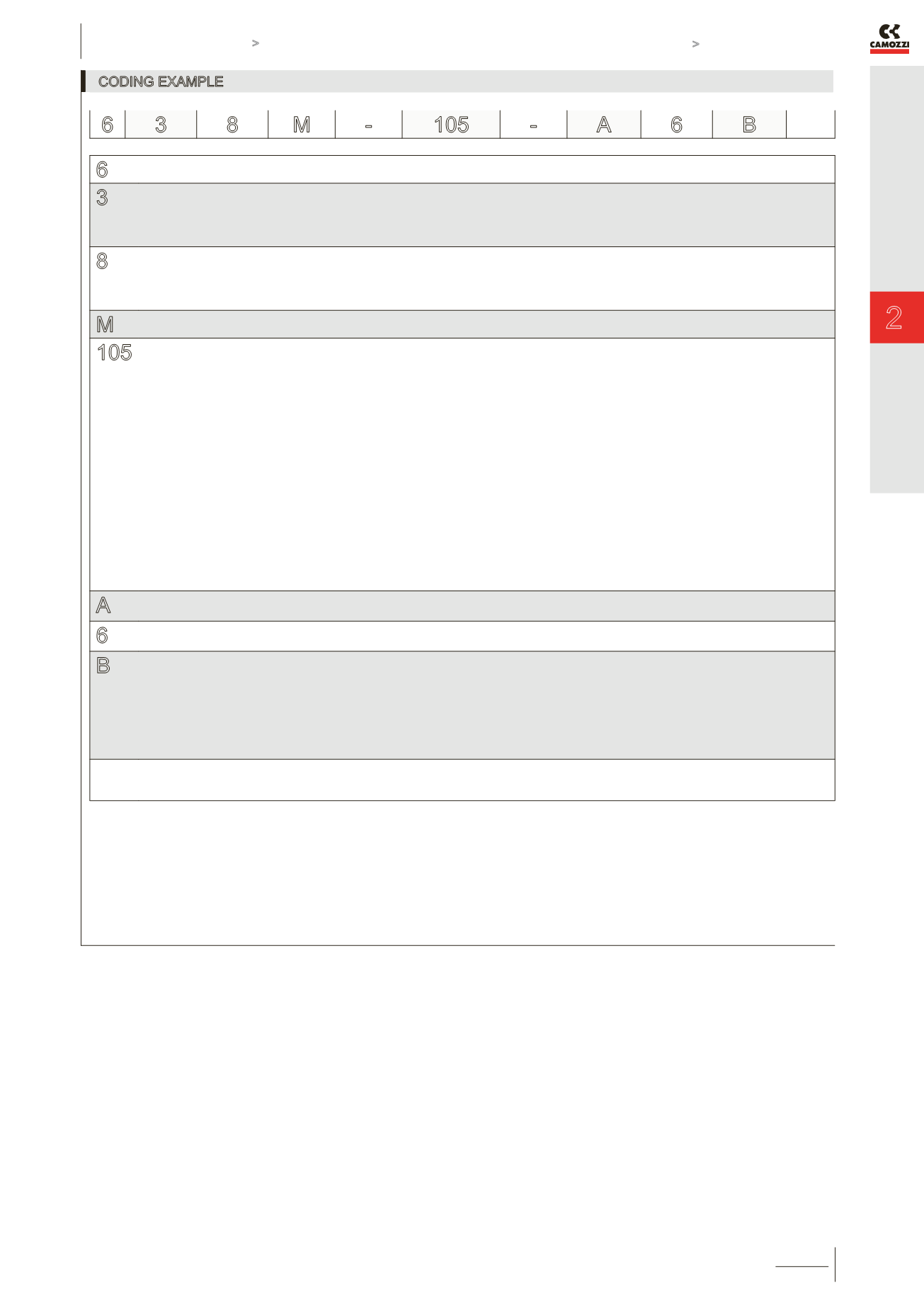

CODING EXAMPLE
6 3 8 M -
105
-
A 6 B
6
SERIES:
3
NUMBER OF PORTS AND FUNCTIONS:
0 = interface
2 = 2-way NC
3 = 3-way NC
4 = 3-way NO
8
CONNECTION:
0 = interface
3 = G3/8
8 = G1/8
C = cartridge Ø 4
M
M = manifold
105
TYPE OF BODY:
150 = threaded body G1/8 - orifice Ø 2 mm
15E = threaded body G3/8 - orifice Ø 2.5 mm
15F = threaded body G3/8 - orifice Ø 3 mm
15G = threaded body G3/8 - orifice Ø 4 mm
450 = base with rotatable interface
457 = base with fixed interface
101 = single manifold
102 = manifold - 2 pieces
103 = manifold - 3 pieces
104 = manifold - 4 pieces
105 = manifold - 5 pieces
106 = manifold - 6 pieces
107 = manifold - 7 pieces
108 = manifold - 8 pieces
109 = manifold - 9 pieces
110 = manifold - 10 pieces
111 = manifold - 11 pieces
112 = manifold - 12 pieces
113 = manifold - 13 pieces
114 = manifold - 14 pieces
115 = manifold - 15 pieces
A
COIL MATERIAL:
A = PPS
6
SOLENOID DIMENSIONS:
6 = 32x32
B
SOLENOID VOLTAGE:
B = 24V 50/60Hz
C = 48V 50/60 Hz
D = 110V 50/60 Hz
E = 230V 50/60 Hz
2 = 12V DC
3 = 24V DC
4 = 48V DC
6 = 110V DC
VERSIONS:
= standard
LT = for low temperatures
