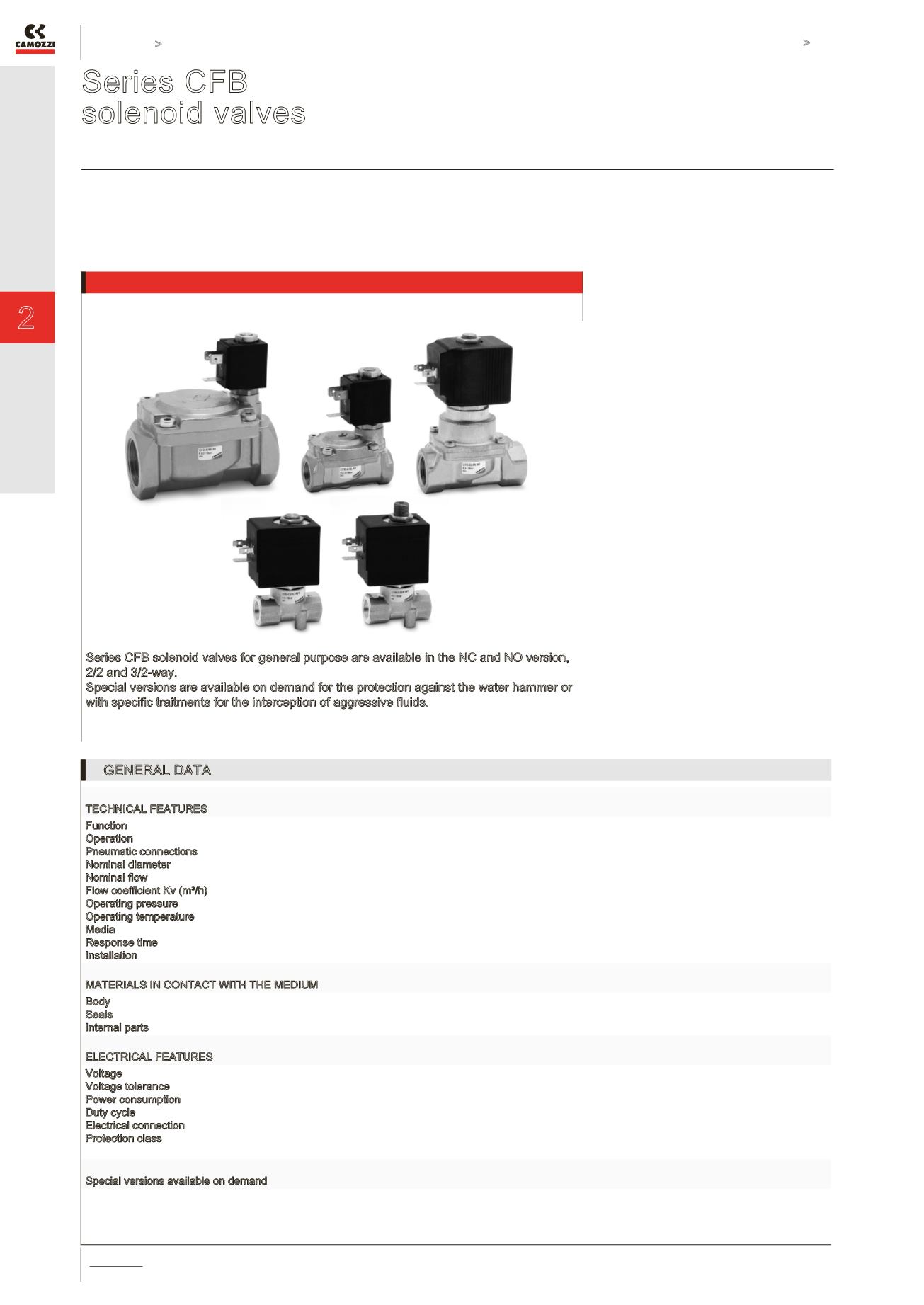

Series CFB solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
83
CONTROL
Series CFB
solenoid valves
2/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Normally Closed (NC) and Normally Open (NO)
Series CFB solenoid valves for general purpose are available in the NC and NO version,
2/2 and 3/2-way.
Special versions are available on demand for the protection against the water hammer or
with specific traitments for the interception of aggressive fluids.
The valve function is determined by a
poppet or by a diaphragm with operation
direct or indirect.
Different versions are available according
to the nominal diameter and to the threaded
ports, as shown in the following tables. They
can thus satisfy various requirements in
terms of flow rates and working pressures.
» » Solenoid valves for
air and water
»
» Great reliability over
time, even in heavy
working conditions
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient Kv (m³/h)
Operating pressure
Operating temperature
Media
Response time
Installation
2/2 NC - 3/2 NC - 2/2 NO
direct acting poppet type - servo-assisted with diaphragm
G1/8 … G2 threads
1.4 … 50 mm
See Kv
0.14 … 45
0 ÷ 0.8 … 22 bar
-10°C ÷ +90°C ... 140°C
air, water, liquid and gaseous fluids with max viscosity 37 cSt (5° E)
ON <15 msec - OFF <25 msec
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
brass (alimentary or anti-limestone nickel-platings on demand)
NBR (CFB-A) - FKM (CFB-B, CFB-D) - EPDM (on demand)
stainless steel - stainless steel and brass (CFB-D1)
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
12 V DC, 24 V DC - 24 V 50 Hz, 110 V 50/60 Hz, 220/230 V 50/60 Hz
±5% (DC) - ±10% (AC)
10 … 30 W (DC) - 9 … 29 VA (AC)
ED 100%
H (180°C)
DIN 43650 connector, (A shape)
IP65 with connector
Special versions available on demand
It is recommended to use connections with internal diameters bigger than valve orifices, otherwise there may be a performance change.
