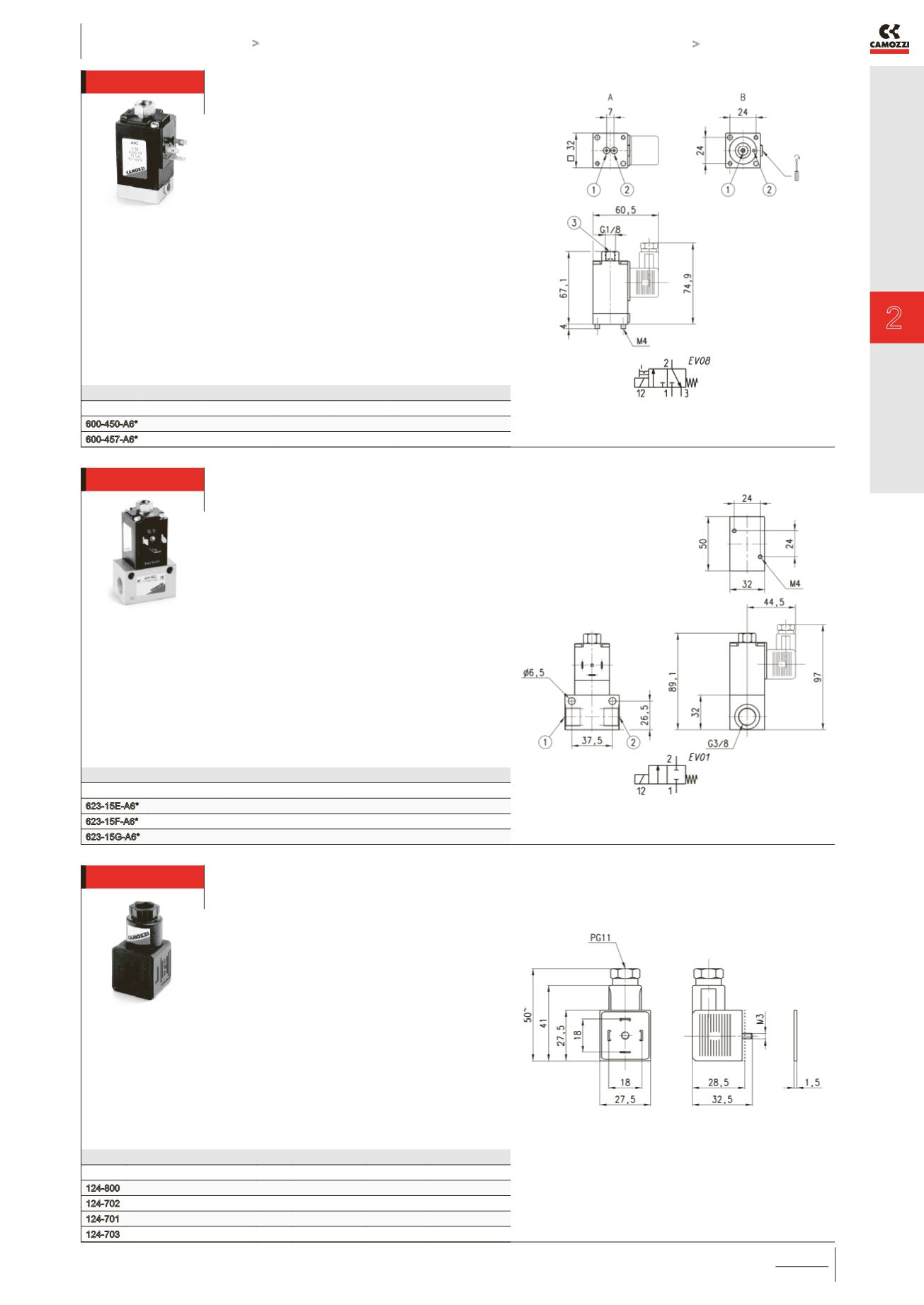

3/2-way NC solenoid valve - Mod. 600
These solenoid valves are equipped with an
override and are available with two types of
interface:
A = fixed interface
B = swivel interface
Mod. Interface Orifice Ø (mm) kv (l/min) Qn (Nl/min) Pressure min-max (bar)
600-450-A6* Swivel 2 1.6 106 0 ÷ 10
600-457-A6* Fixed 2 1.6 106 0 ÷ 10
* = choose the solenoid voltage
according to the CODING
EXAMPLE
2/2-way solenoid valves NC, G3/8 - Mod. 623
Mod. Orifice Ø (mm) kv (l/min) Qn (Nl/min) Min-max pressure (bar)
623-15E-A6* 2.5 3.4 220 0 ÷ 12 [ AC 50Hz ] - 0 ÷ 15 [ DC ]
623-15F-A6* 3 4.5 290 0 ÷ 10 [ AC 50Hz ] - 0 ÷ 14 [ DC ]
623-15G-A6* 4 5.4 350 0 ÷ 4 [ AC 50Hz ] - 0 ÷ 7 [ DC ]
* = choose the solenoid voltage
according to the CODING
EXAMPLE
Connector Mod. 124-... DIN EN 175 301-803-A
Protection class IP65
Mod. description colour working voltage cable holding tightening torque
124-800 connector, without electronics black - PG9/PG11 0.5 Nm
124-702 connector, varistor + Led black 110 V AC/DC PG9/PG11 0.5 Nm
124-701 connector, varistor + Led black 24 V AC/DC PG9/PG11 0.5 Nm
124-703 connector, varistor + Led black 230 V AC/DC PG9/PG11 0.5 Nm
