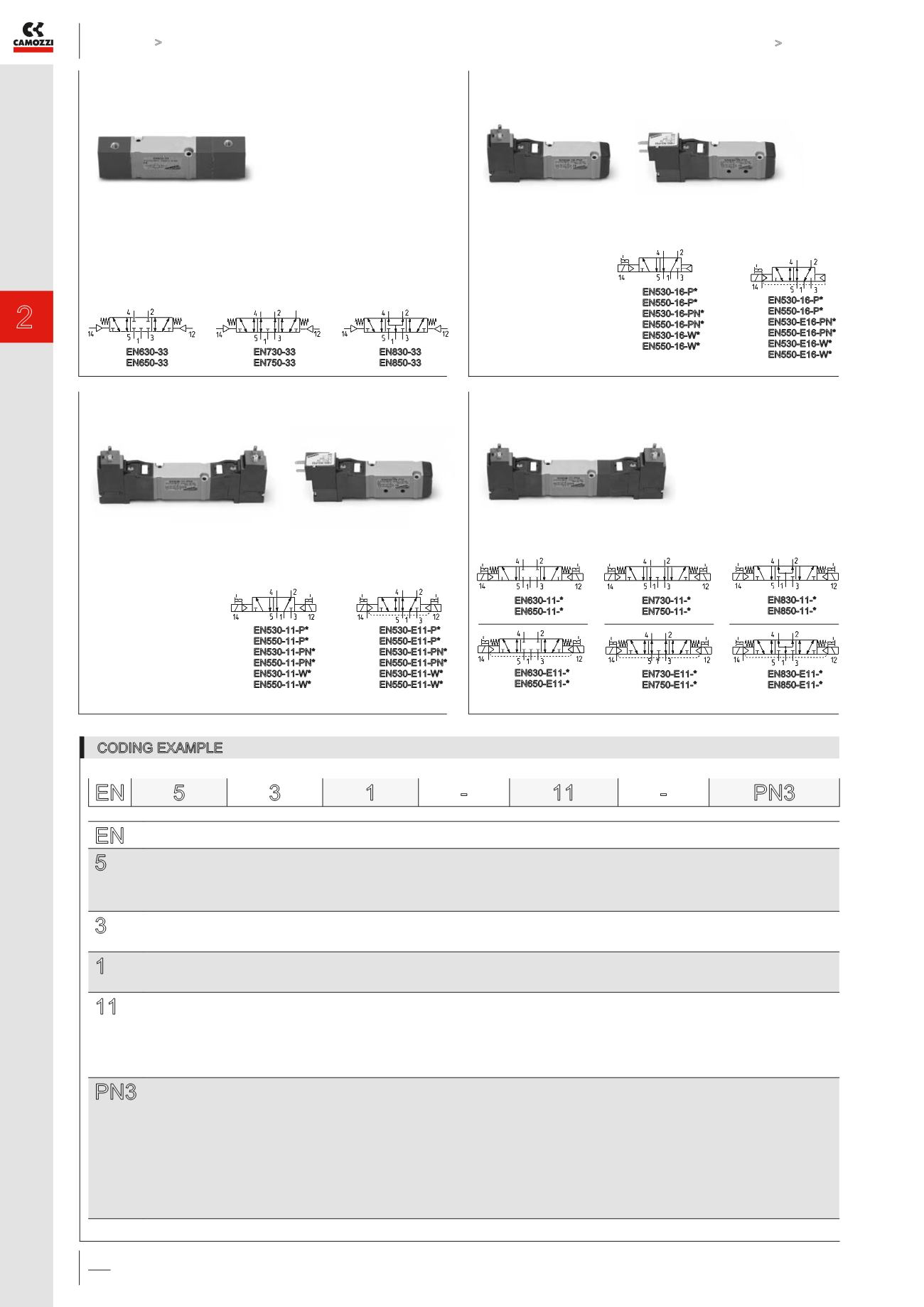

CONTROL > Series EN
EN SERIES
5 FUNCTION:
5 = 5/2
6 = 5/3 Centre Closed
7 = 5/3 Centre Open
8 = 5/3 Pressure Centre
3 SIZE:
3 = size 16
5 = size 19
1 BODY TYPE:
1 = body with threaded plate
0 = body for sub-base
11 ACTUATION:
11 = electro-pneumatic, bistable
16 = electro-pneumatic, monostable
33 = pneumatic bistable
36 = pneumatic monostable
E11 = electro-pneumatic, bistable with external servo-pilot supply
E16 = electro-pneumatic, monostable with external servo-pilot supply
PN3 TYPE OF SOLENOID:
PN3 = 24V DC - 1W
PN4 = 48V DC - 2W
PN6 = 110V DC - 2W
PN7 = 230V - 2W
P13 = 24V DC - 1W
P54 = 48V DC - 2W
P56 = 110V DC - 2W
W53 = 24V DC - 2W
W54 = 48V DC - 2W
In case of applications with alternate current, use a bridge rectifier connector
CODING EXAMPLE
EN 5 3 1 - 11 - PN3
Mod. EN530-16-P*
EN550-16-P*
EN530-E16-PN*
EN550-E16-PN*
EN530-E16-W*
EN550-E16-W*
Mod. EN530-16-P*
EN550-16-P*
EN530-16-PN*
EN550-16-PN*
EN530-16-W*
EN550-16-W*
Mod. EN630-33
EN650-33 * = choose the most suitable solenoid (see the coding example)
* = choose the most suitable solenoid (see the coding example) * = choose the suitable solenoid (see the coding example)
Mod. EN830-33
EN850-33
Mod. EN730-33
EN750-33
Mod. EN530-E11-P*
EN550-E11-P*
EN530-E11-PN*
EN550-E11-PN*
EN530-E11-W*
EN550-E11-W*
Mod. EN530-11-P*
EN550-11-P*
EN530-11-PN*
EN550-11-PN*
EN530-11-W*
EN550-11-W*
Mod. EN630-E11-*
EN650-E11-*
Mod. EN630-11-*
EN650-11-*
Mod. EN830-E11-*
EN850-E11-*
Mod. EN730-E11-*
EN750-E11-*
Mod. EN830-11-*
EN850-11-*
Mod. EN730-11-*
EN750-11-*
