CONTROL
Products designed for industrial applications.
General terms and conditions for sale are available on

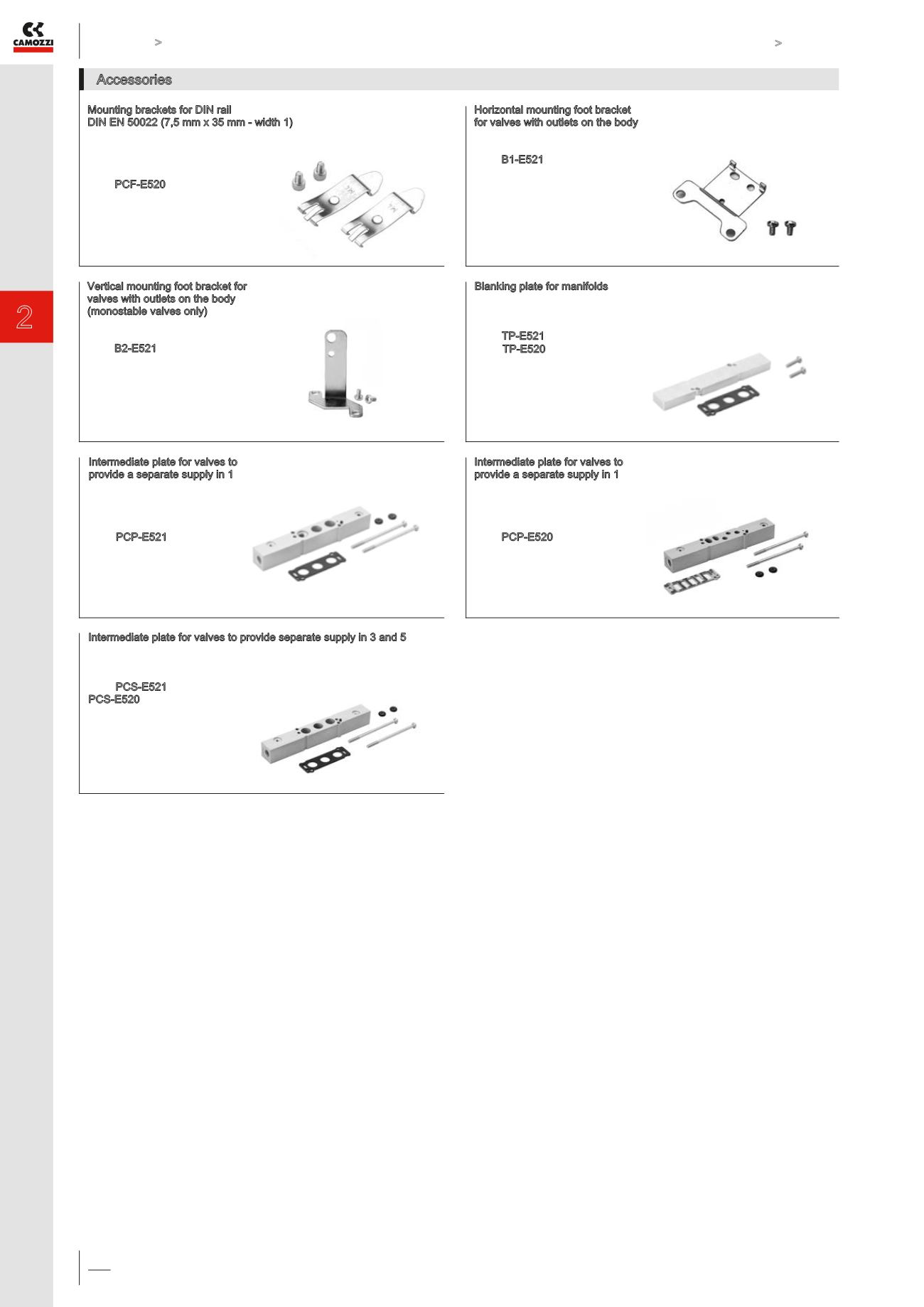

CONTROL > Series E
Mounting brackets for DIN rail
DIN EN 50022 (7,5 mm x 35 mm - width 1)
Suitable for all manifolds
Supplied with:
2x plates
2x screws M4x6 UNI 5931
Mod. PCF-E520
Horizontal mounting foot bracket
for valves with outlets on the body
The following is supplied:
1x foot bracket, 2x screws
Mod. B1-E521
Vertical mounting foot bracket for
valves with outlets on the body
(monostable valves only)
The following is supplied:
1x foot bracket, 2x screws
Mod. B2-E521
Blanking plate for manifolds
The following is supplied:
1x blanking plate,
2x screws, 1x seal
Mod. TP-E521 (valves with outlets on the body)
TP-E520 (valves mounted on sub-base)
Intermediate plate for valves to
provide a separate supply in 1
Base mounted valves
The following is supplied:
1x plate, 2x screws,
1x interface seal, 2x O-Ring
Mod. PCP-E521
Intermediate plate for valves to
provide a separate supply in 1
Base mounted valves
The following is supplied:
1x plate, 2x screws,
1x interface seal, 2x O-Ring
Mod. PCP-E520
Intermediate plate for valves to provide separate supply in 3 and 5
The following is supplied:
1x plate, 2x screws,
1x interface seal, 2x O-Ring
Mod. PCS-E521 (valves with outlets on the body)
PCS-E520 (valves mounted on sub-base)
Accessories
