Series 8 pneumatically and electropneumatically operated valves

C_FLUID CONTROL CATALOGUE

2018

CONTROL >

CONTROL

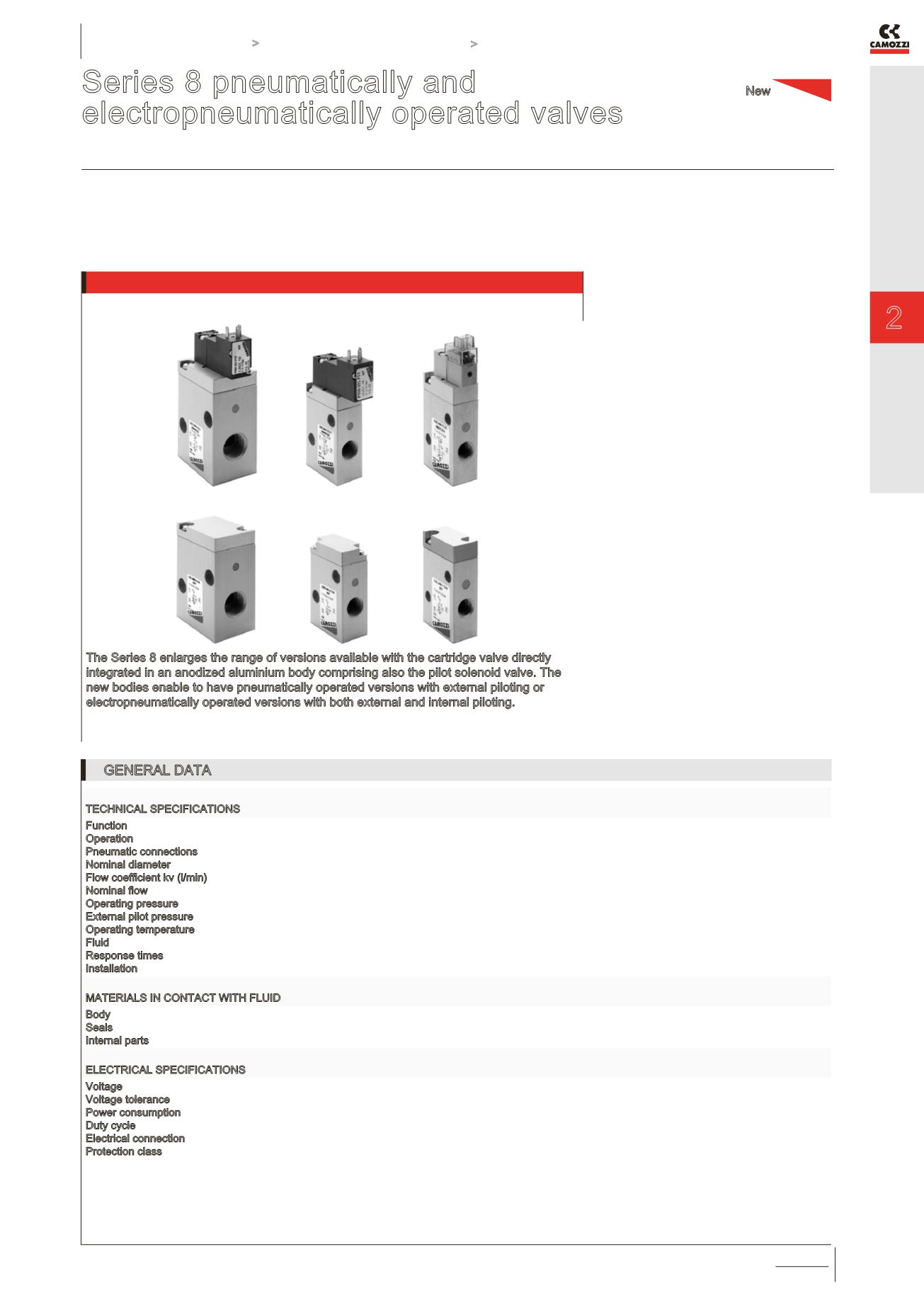

Series 8 pneumatically and

electropneumatically operated valves

2/2-way - Normally Closed (NC), Normally Open (NO)

3/2-way - Normally Closed (NC), Normally Open (NO)

The Series 8 enlarges the range of versions available with the cartridge valve directly

integrated in an anodized aluminium body comprising also the pilot solenoid valve. The

new bodies enable to have pneumatically operated versions with external piloting or

electropneumatically operated versions with both external and internal piloting.

High flow

Available in 3 different

sizes for general purpose

Version for use with

oxygen available

GENERAL DATA

TECHNICAL SPECIFICATIONS

Function

Operation

Pneumatic connections

Nominal diameter

Flow coefficient kv (l/min)

Nominal flow

Operating pressure

External pilot pressure

Operating temperature

Fluid

Response times

Installation

2/2 NC – 2/2 NO – 3/2 NC - 3/2 NO

pneumatic or electropneumatic

G1/8 – G1/4 – G3/8

5 … 9 mm

6.5 … 23

420 … 1480 Nl/min (air at 6 bar ∆P 1 bar)

3 ÷ 6 bar (0 ÷ 6 bar with external pilot supply)

3 ÷ 6 bar

0 ÷ +50°C

filtered air class 5.4.4 according to ISO 8573-1 (oil viscosity max. 32 cSt), inert gases

ON <10 msec - OFF <10 msec

any position

MATERIALS IN CONTACT WITH FLUID

Body

Seals

Internal parts

Aluminium

FKM

Aluminium – Brass

ELECTRICAL SPECIFICATIONS

Voltage

Voltage tolerance

Power consumption

Duty cycle

Electrical connection

Protection class

24 V DC – other voltages upon request

Size 1 = ±10% - Size 2 and 3 = -10% +15%

Size 1 = 1.3 W (inrush) 0.25 W (holding) – Size 2 and 3 = 2 W

ED 100%

connectors – wires (length = 300 mm)

Size 1 = IP50 – Size 2 and 3 = IP65 (with connector)

New
