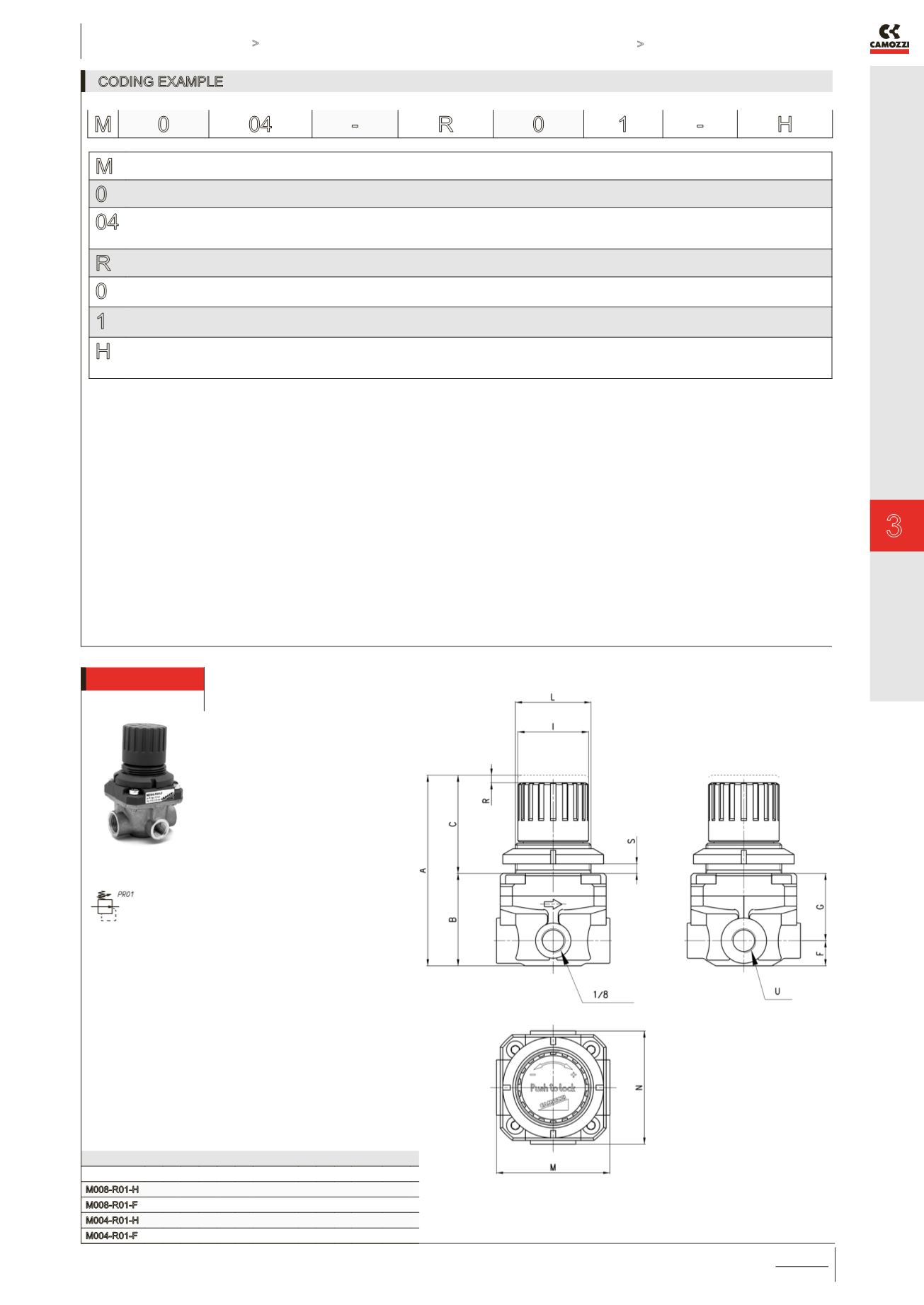

Series M pressure microregulators C_FLUID CONTROL CATALOGUE
3
184
> 2018 TREATMENT >
TREATMENT
CODING EXAMPLE
M SERIES
0 SIZE
04 PORTS:
08 = G1/8
04 = G1/4
R REGULATOR
0 OPERATING PRESSURE:
0 = 0.5 ÷ 10 bar
1 DESIGN TYPE:
1 = non relieving
H VERSION:
H = for use with water
F = for use with various fluids
M 0 04 - R 0 1 - H
Series M pressure microregulator
DIMENSIONS
Mod. A B C F G I L M N R S U
M008-R01-H 76 37 39 10 27 28 M30x1,5 45 45 3 0 ÷ 6 G1/8
M008-R01-F 76 37 39 10 27 28 M30x1,5 45 45 3 0 ÷ 6 G1/8
M004-R01-H 76 37 39 10 27 28 M30x1,5 45 45 3 0 ÷ 6 G1/4
M004-R01-F 76 37 39 10 27 28 M30x1,5 45 45 3 0 ÷ 6 G1/4
