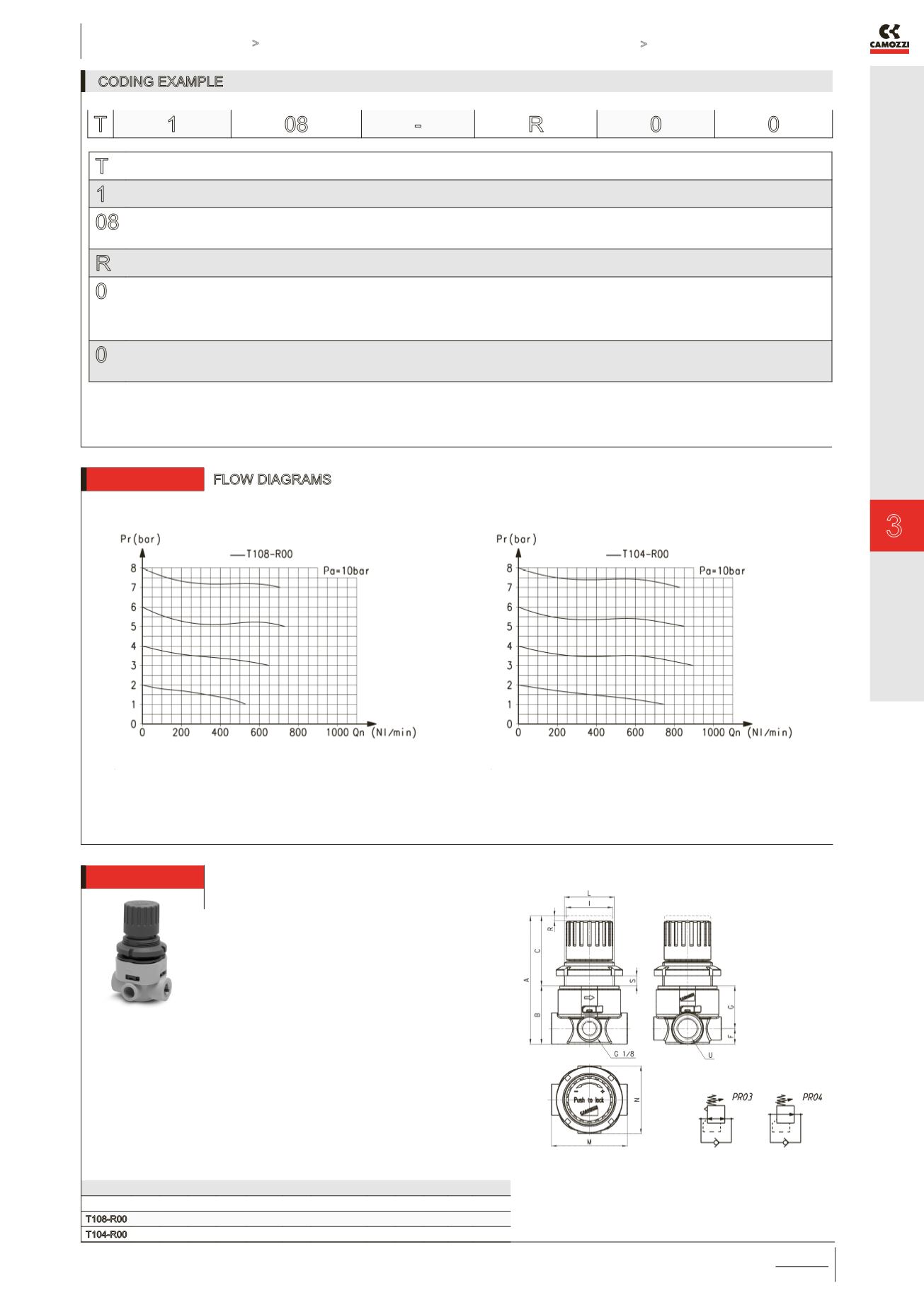

Series T pressure microregulators C_FLUID CONTROL CATALOGUE
3
186
> 2018 TREATMENT >
TREATMENT
CODING EXAMPLE
T SERIES
1 SIZE
08 PORTS:
08 = G1/8
04 = G1/4
R REGULATOR
0 OPERATING PRESSURE:
0 = 0,5 ÷ 10
1 = 0 ÷ 4
2 = 0 ÷ 2
7 = 0 ÷ 7 (standard)
0 DESIGN TYPE:
0 = self-relieving
1 = non relieving
T 1 08 - R 0 0
6512 FLOW DIAGRAMS
Flow diagram for model: T108-R00
Pa = Inlet pressure
Pr = Regulated pressure
Qn = Flow
Flow diagram for model: T104-R00
Pa = Inlet pressure
Pr = Regulated pressure
Qn = Flow
Series T pressure microregulator
DIMENSIONS
Mod. A B C F G I L M N R S U
T108-R00 77 35 42 9.5 25.5 28 M30X1.5 46 41 3 7 G1/8
T104-R00 77 35 42 9.5 25.5 28 M30X1.5 46 41 3 7 G1/4
PR03 = regulator with relieving
and by-pass valve
PR04 = regulator without relieving
and with by-pass valve
