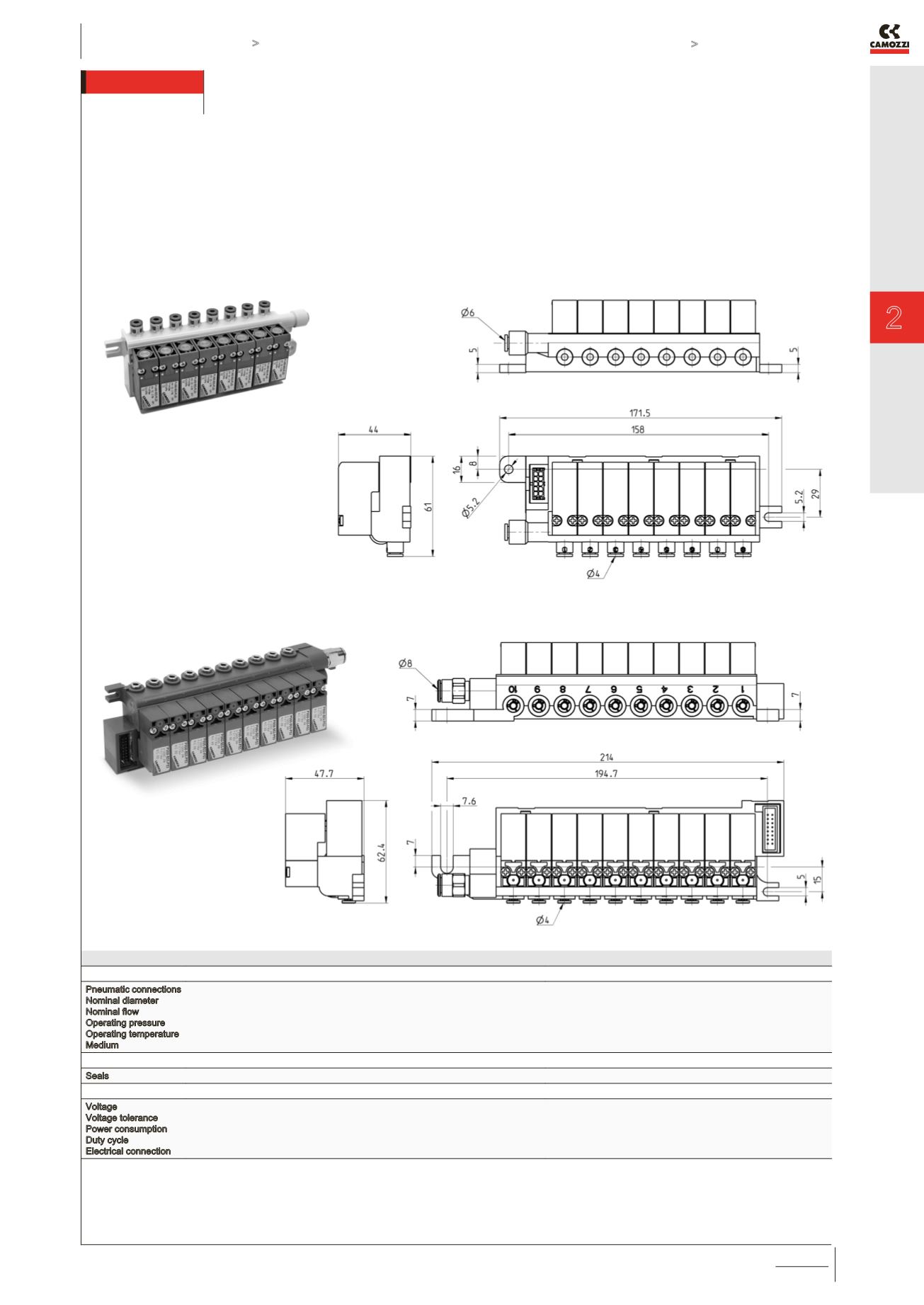

SERIES P MANIFOLD VERSION
Plug-In system based on Series P solenoid valves
Valve functions: 3/2 NC
Feasible versions: 8, 10 positions
Valve width: 15mm
Multipole electrical connection
Flexible assembly
Easy installation
Pneumatic connections
Nominal diameter
Nominal flow
Operating pressure
Operating temperature
Medium
tube* collect inlet and exhaust ø 8 mm - outlets ø 4 mm
1.5 mm
35 Nl/min (single solenoid valve)
0 ÷ 7 bar
0 ÷ +50°C
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
* it is recommended to use tube Mod. TPC 4/2 (PU 98°Sh).
For further information see Camozzi catalogue, section 4.4.15.
Seals FKM, NBR (FKM on demand)
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
24 V DC
±10%
2 W
ED 100%
Multipole
