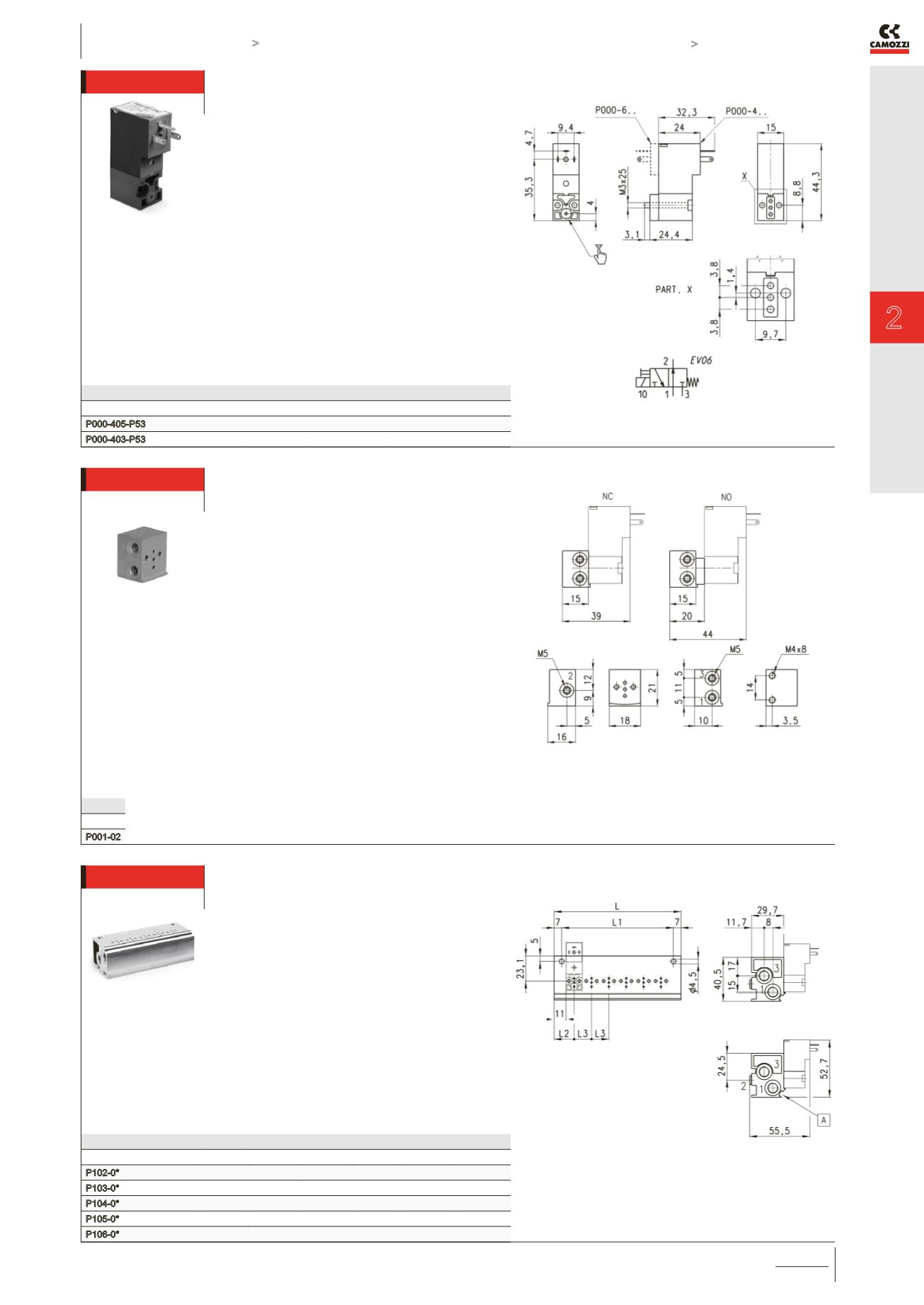

47 / 220
General terms and conditions for sale are available on
www.camozzi.com.Series P solenoid valves
C_FLUID CONTROL CATALOGUE
2
44
>
2018
CONTROL >
CONTROL
3/2-way NO solenoid valve
Supplied with:
1x interface for NO version
(connections 1 and 3 are inverted)
2x interface seals
2x screws M3x25 UNI 8112 (for standard version)
Mod.
Orifice Ø (mm)
kv (l/min)
Qn (Nl/min)
Pressure min-max (bar)
P000-405-P53
0.9
0.23
15
0 ÷ 10
P000-403-P53
1.5
0.54
-
0 ÷ 5
Single sub-base
Mod.
P001-02
Single manifold with rear outlets
DIMENSIONS
Mod.
N° Valves
L
L1
L2
L3
1 (P)
3 (R)
P102-0*
2
53
39
18,5
16
G1/8
G1/8
P103-0*
3
69
55
18,5
16
G1/8
G1/8
P104-0*
4
85
71
18,5
16
G1/8
G1/8
P105-0*
5
101
87
18,5
16
G1/8
G1/8
P106-0*
6
117
103
18,5
16
G1/8
G1/8
* = see the type of PORTS in the
CODING EXAMPLE TABLE.
A = groove for electric connection
identification
