Series PL solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
49
CONTROL

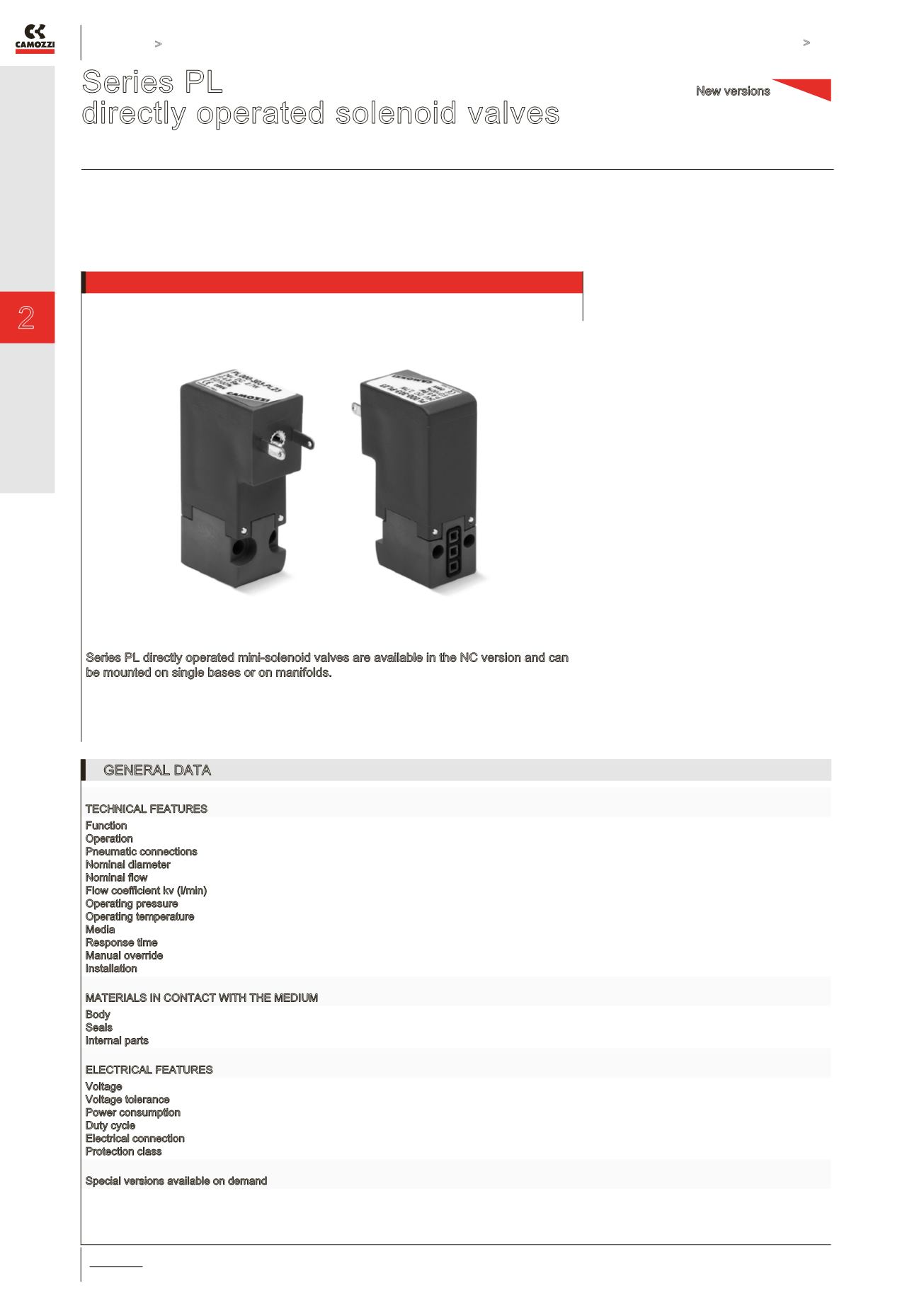

Series PL
directly operated solenoid valves
3/2-way - Normally Closed (NC)
Series PL directly operated mini-solenoid valves are available in the NC version and can
be mounted on single bases or on manifolds.
Please note that all Series PL solenoid
valves are supplied with direct current (DC).
To operate in alternating current (AC), it is
necessary to use the connector with bridge
rectifier Mod. 125-900.
» » Can be mounted on a single
base (M5 connections) or on
manifold (M5 connections
or cartridge ø 3 and 4)
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time
Manual override
Installation
3/2 NC
direct acting poppet type
on subbase with ISO 15218 interface by means of screws
1.5 mm
35 Nl/min (air @ 6 bar ΔP 1 bar)
0.54
0 ÷ 3.5 or 4 ÷ 8 bar
0°C ÷ 50°C
filtered air, class 5.4.4 according to ISO 8573-1 (max oil viscosity 32 cSt), inert gas
ON <10 msec - OFF <15 msec
not foreseen
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
PBT technopolymer
FKM, NBR
stainless steel, NBR
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - other voltages on demand
±10%
2.7 W
ED 100%
with industrial standard connector (9.4 mm)
IP65 with connector
Special versions available on demand
New versions
