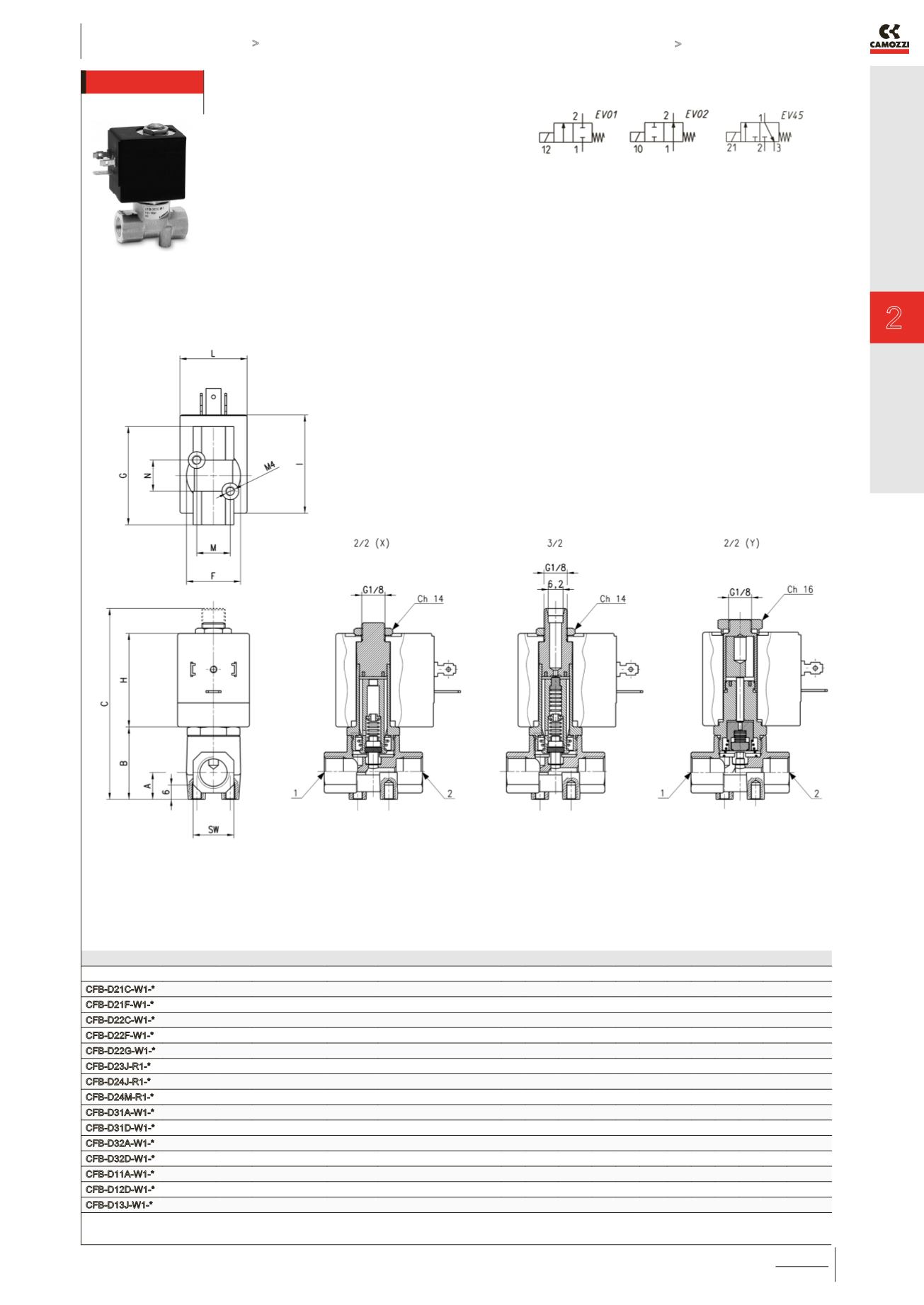

Directly operated 2/2 NC - NO and 3/2 NC solenoid valve
The direct control of these solenoid valves enables
them to work with operating pressures which are
equal to zero. Ports: G1/8 and G1/2.
DRAWING LEGEND:
X = NC valve
Y = NO valve
Mod.
Function Ports Ø Orifice (mm) Kv (m³/h)
Pressure min÷max (bar)
A B C F G SW H I
L N M Symbol
CFB-D21C-W1-*
2/2 NC G1/8
2.5
0.14
0 ÷ 15 [ AC / DC ]
11 30 73.8 23 41 17 39 41 30 13 14 EV01
CFB-D21F-W1-*
2/2 NC G1/8
4
0.25
0 ÷ 6 [ AC / DC ]
11 30 73.8 23 41 17 39 41 30 13 14 EV01
CFB-D22C-W1-*
2/2 NC G1/4
2.5
0.14
0 ÷ 15 [ AC / DC ]
11 30 73.8 23 41 17 39 41 30 13 14 EV01
CFB-D22F-W1-*
2/2 NC G1/4
4
0.25
0 ÷ 6 [ AC / DC ]
12 31.5 75 26 41 17 39 41 30 13 14 EV01
CFB-D22G-W1-*
2/2 NC G1/4
6
0.6
0 ÷ 2.5 [ AC / DC ] ***
12 31.5 75 26 41 17 39 41 30 13 14 EV01
CFB-D23J-R1-*
2/2 NC G3/8
8
1
0 ÷ 2 [ AC ] - 0 ÷ 0.8 [ DC ]
15 45 89 37 55 27 39 47 36 22 22 EV01
CFB-D24J-R1-*
2/2 NC G1/2
8
1
0 ÷ 2 [ AC ] - 0 ÷ 0.8 [ DC ]
15 45 89 37 55 27 39 47 36 22 22 EV01
CFB-D24M-R1-*
2/2 NC G1/2
13
2.4
0 ÷ 1 [ AC ] - /
15 45 89 37 55 27 39 47 36 22 22 EV01
CFB-D31A-W1-* 3/2 NC ** G1/8
1.4
0.06
0 ÷ 14 [ AC / DC ]
11 30 79.6 23 41 17 39 41 30 13 14 EV45
CFB-D31D-W1-* 3/2 NC ** G1/8
2.8
0.14
0 ÷ 5 [ AC / DC ]
11 30 79.6 23 41 17 39 41 30 13 14 EV45
CFB-D32A-W1-* 3/2 NC ** G1/4
1.4
0.06
0 ÷ 14 [ AC / DC ]
11 30 79.6 23 41 17 39 41 30 13 14 EV45
CFB-D32D-W1-* 3/2 NC ** G1/4
2.8
0.14
0 ÷ 5 [ AC / DC ]
11 30 79.6 23 41 17 39 41 30 13 14 EV45
CFB-D11A-W1-*
2/2 NO G1/8
1.4
0.07
0 ÷ 22 [ AC 50Hz / DC ]
11 30 75 23 41 17 39 41 30 13 14 EV02
CFB-D12D-W1-*
2/2 NO G1/4
2.8
0.20
0 ÷ 7.5 [ AC 50Hz / DC ]
11 30 75 23 41 17 39 41 30 13 14 EV02
CFB-D13J-W1-*
2/2 NO G3/8
8
1
0 ÷ 1.5 [ AC 50Hz ]
15 45 89 37 55 27 39 47 36 22 22 EV02
TABLE NOTES:
* = choose the suitable solenoid(see the table on page 2/1.30.03).
** = the performances shown in the table refer to the use with inlet
from “2” and outlet from “1”.
*** = 0 ÷ 4 with B9... solenoid
