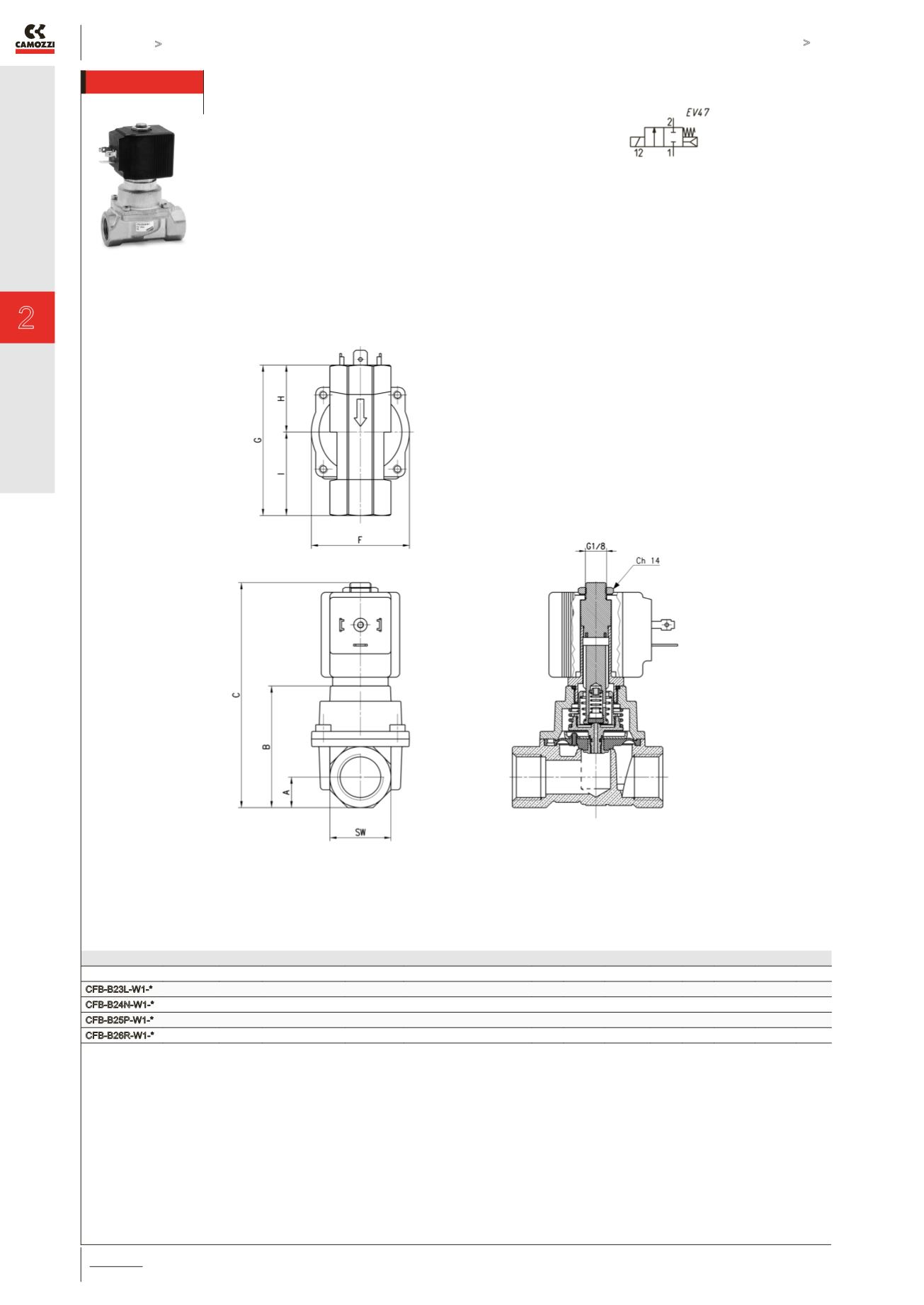

Series CFB solenoid valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
87
CONTROL
Directly oper. 2/2 NC solenoid valve with linked diaphragm
The diaphragm which is linked to the mobile plunger
is a good arrangement between high fluid flow rates
and working pressures (zero pressures as well).
Ports: from G3/8 to G1.
The standard diaphragm is supplied in FKM.
Mod.
Function Ports Ø Orifice (mm)
Kv (m³/h)
Pressure min÷max (bar)
A B
C F G H
I
SW
CFB-B23L-W1-*
2/2 NC G3/8
11.5
2.1
0 ÷ 15 [ AC ] - 0 ÷ 8 [ DC ]
14 55.8 103.2 45 64 28.2 35.8 28
CFB-B24N-W1-*
2/2 NC G1/2
13.5
2.5
0 ÷ 15 [ AC ] - 0 ÷ 8 [ DC ]
14 55.8 103.2 45 69 30.7 38.3 28
CFB-B25P-W1-*
2/2 NC G3/4
18
5
0 ÷ 15 [ AC ] - 0 ÷ 5 [ DC ]
21
72
119.4 71 93 43.5 49.5 42
CFB-B26R-W1-*
2/2 NC G1
26
8
0 ÷ 15 [ AC ] - 0 ÷ 5 [ DC ]
21
72
119.4 71 93 43.5 49.5 42
TABLE NOTE:
* = choose the suitable solenoid(see the table on page 2/1.30.03).
