Series CFB solenoid valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
89
CONTROL

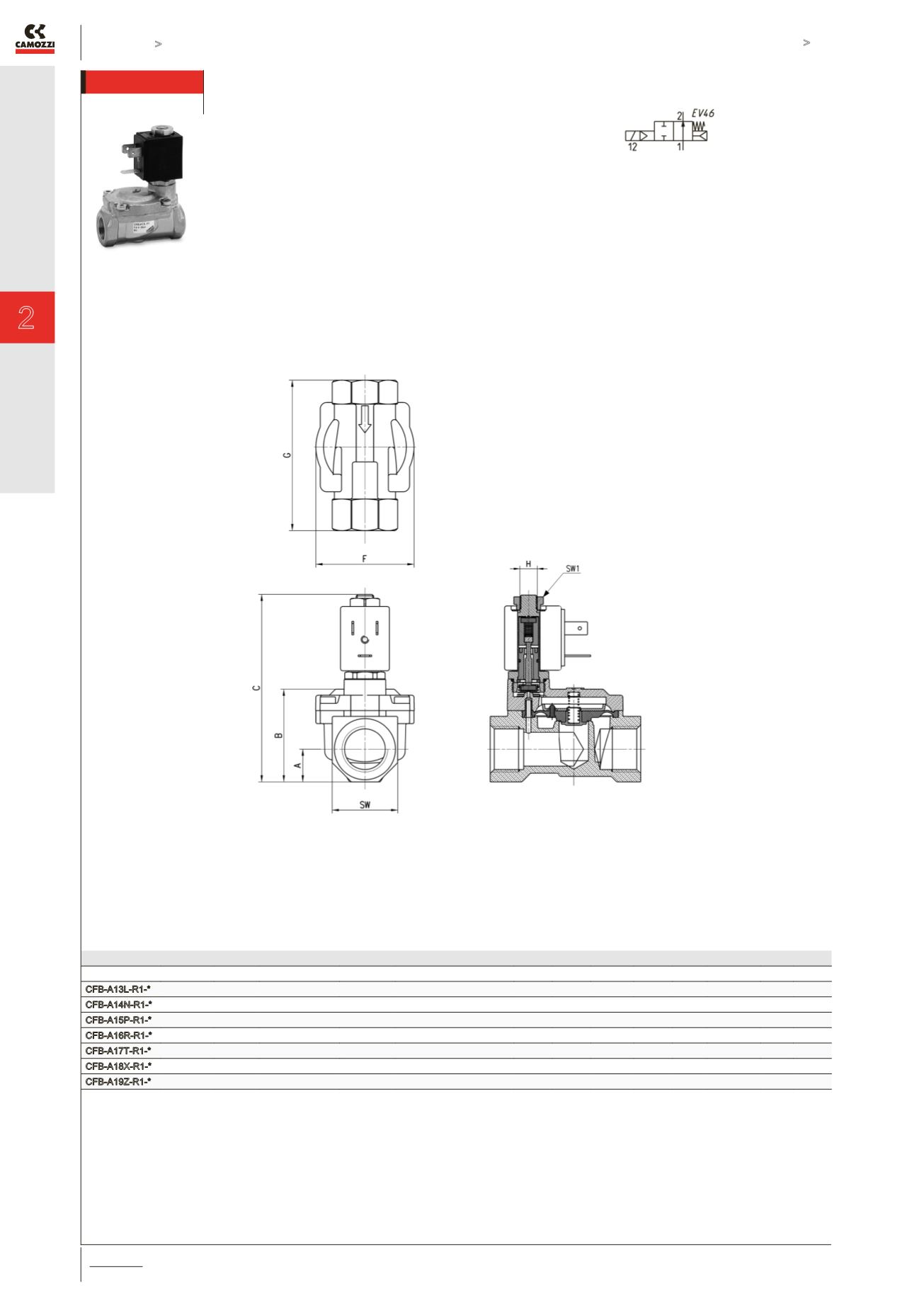

Indirectly operated 2/2 NO solenoid valve
The pilot of these indirectly operated solenoid
valves controls the diaphragm position through a
differential pressure. These valves are therefore
particularly suitable for controlling high fluid flow
rates and require very low working pressures.
Ports: from G3/8 to G2.
The standard diaphragm is supplied in NBR.
On demand it can be supplied in FKM or EPDM.
Mod.
Function Ports Ø Orifice (mm)
Kv (m³/h)
Pressure min÷max (bar)
A
B
C
F
G
H SW SW1
CFB-A13L-R1-*
2/2 NO G3/8
11.5
2.6
0.1 ÷ 15 [ AC / DC ]
12 32.5 78.5 41.9 57 M8x0.75 24 13.5
CFB-A14N-R1-*
2/2 NO G1/2
13.5
3.5
0.1 ÷ 15 [ AC / DC ]
15 39.7 85.7
45
69 M8x0.75 30 13.5
CFB-A15P-R1-*
2/2 NO G3/4
18
5.8
0.2 ÷ 15 [ AC / DC ]
18 46.5 92.7 54.4 74 M8x0.75 36 13.5
CFB-A16R-R1-*
2/2 NO G1
26
9.5
0.2 ÷ 12 [ AC / DC ]
22.5 59.8 104.5 71
93 M8x0.75 45 13.5
CFB-A17T-R1-*
2/2 NO G1 1/4
32
12.5
0.4 ÷ 12 [ AC / DC ]
27.5 73.5 130 86.6 111
G1/8
55 14
CFB-A18X-R1-*
2/2 NO G1 1/2
45
31
0.4 ÷ 10 [ AC / DC ]
31
85 138.3 110 138
G1/8
62 14
CFB-A19Z-R1-*
2/2 NO G2
50
45
0.4 ÷ 10 [ AC / DC ]
37.5 98.8 152 110 145
G1/8
75 14
TABLE NOTE:
* = choose the suitable solenoid(see the table on page 2/1.30.03).
