www.camozzi.com.Series 8 cartridge valves
C_FLUID CONTROL CATALOGUE
2
94
>
2018
CONTROL >
CONTROL

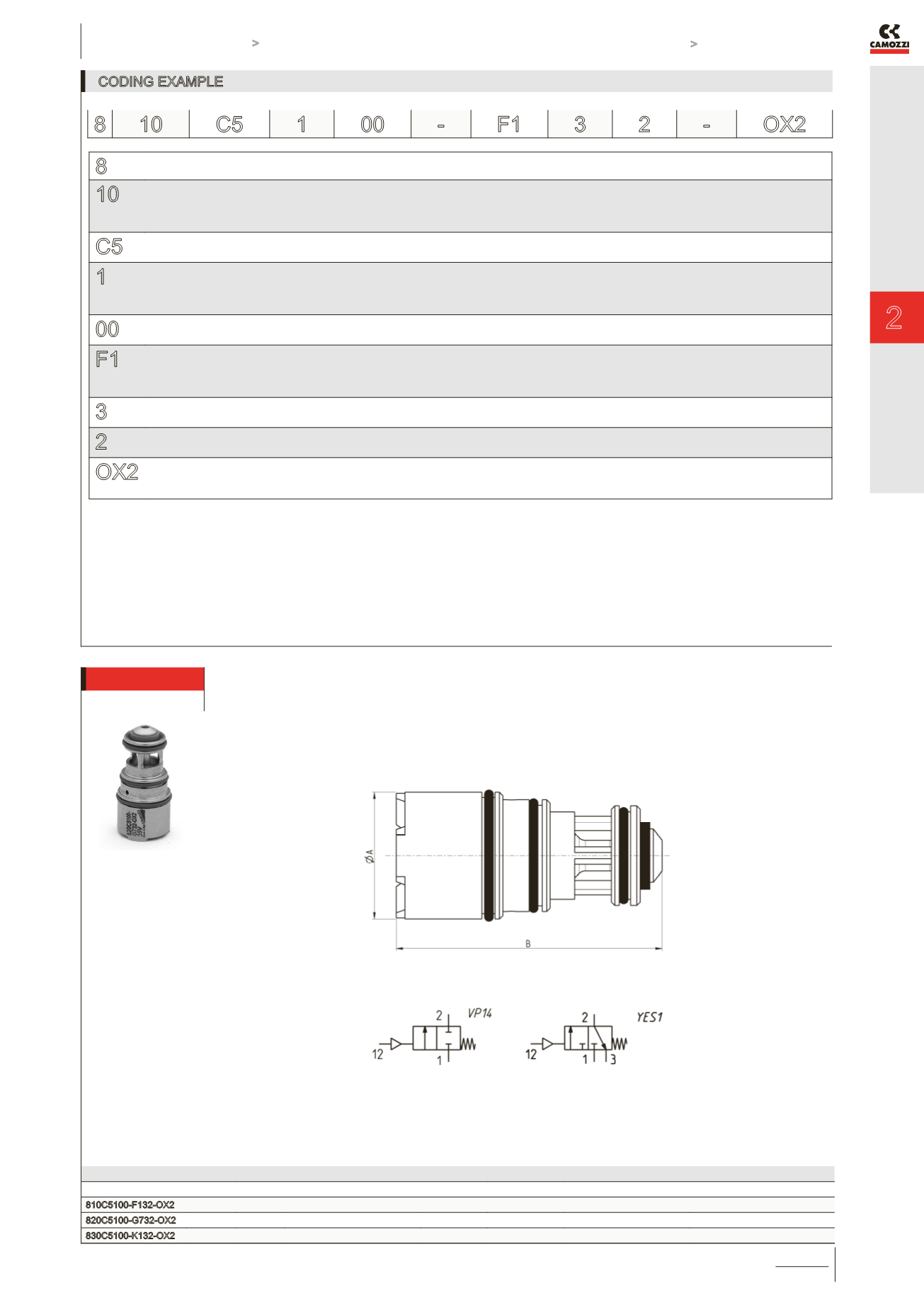

CODING EXAMPLE
8
SERIES
10
SIZE:
10 = Size 1
20 = Size 2
30 = Size 3
C5
BODY DESIGN:
C5 = cartridge
1
NUMBER OF WAYS - FUNCTIONS:
1 = 2/2-way NC or 3/2-way NC
NOTE: The function depends on the seat used (for further details see the following pages)
00
PNEUMATIC CONNECTIONS:
00 = cartridge
F1
NOMINAL DIAMETER:
F1 = Ø 5.0 mm (size 1 only)
G7 = Ø 6.6 mm (size 2 only)
K1 = Ø 9.0 mm (size 3 only)
3
SEAL MATERIAL:
3 = FKM
2
BODY MATERIAL:
2 = brass
OX2
OX2 = for use with oxygen (non volatile residual less than 33 mg/m²)
NOTE: the OX2 suffix must be added also in case of use with air/gas.
8 10 C5 1 00 -
F1 3 2 -
OX2
Pneumatic cartridge valve 2/2-way NC
For 2/2-way (pneumatic symbol VP14) or 3/2-way (pneumatic symbol YES1) function, see the seat
dimensioning in the next pages.
Mod.
ØA
B
Nominal diameter Ø (mm)
kv (l/min)
Qn (Nl/min)
Min/max pressure (bar)
Min/max pilot pressure (bar)
810C5100-F132-OX2
10
26.7
5.0
6.5
420
0 ÷ 6
3 ÷ 6
820C5100-G732-OX2
14.5
30.3
6.6
12.5
800
0 ÷ 6
3 ÷ 6
830C5100-K132-OX2
22
34.8
9.0
23
1480
0 ÷ 6
3 ÷ 6
