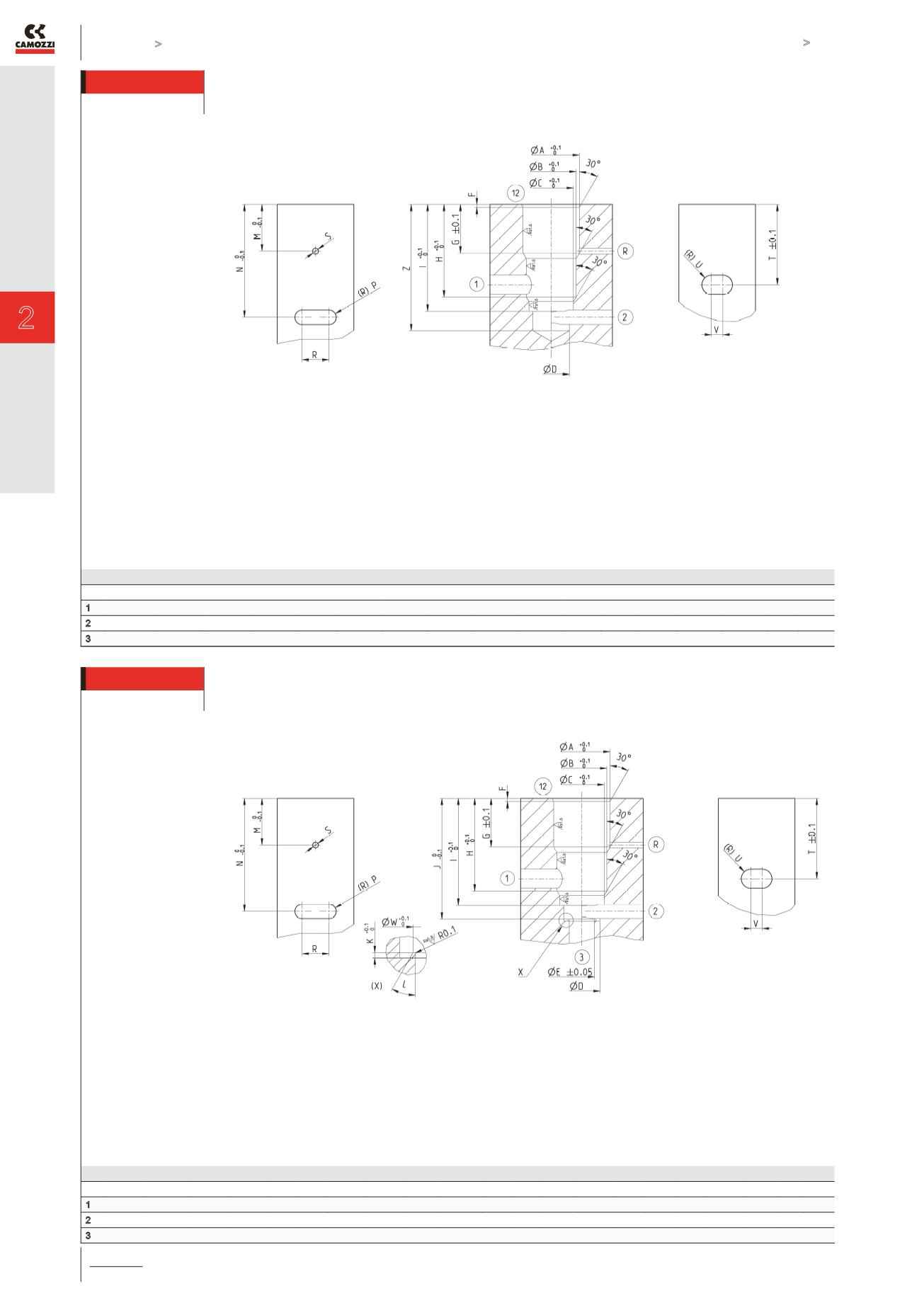

Seat for Series 8 pneumatic valve with 2/2-way NC function
SERIES 8
Size A
B
C
D
F
G
H
I
M N
P
R S
T
U V Z
1
10.4
9.7
9
8.2
0.8
14.5
20.7
25
13.2
26.2
1.5
5
1.5
19.1
3
5 30
2
14.65
12.95
11.55
9.5
0.8
12.8
24.2
27.9
12.2
29.3
1.9
7
1.5
20.5
2.5
4 33
3
22.1
20.6
19.6
16.2
0.5
15
28.7
33.4
12.5
37.1
4
4.4 2.5
24.8
3.75
5 41
NOTE IN THE DRAWING:
1 = inlet
2 = outlet
12 = pilot supply
R = poppet chamber
exhaust
Seat for Series 8 pneumatic valve with 3/2-way NC function
SERIES 8
Size A
B
C D E F G H I
J
K L
M N P R S T
U V W
1 10.4
9.7
9
8.2 5 0.8 14.5 20.7 25
28 0.3 45 13.2 26.2 1.5 5 1.5 19.1 3 5 5.4
2 14.65 12.95 11.55 9.5 6.6 0.8 12.8 24.2 27.9 31.55 0.5 45 12.2 29.3 1.9 7 1.5 20.5 2.5 4 7
3 22.1 20.6 19.6 16.2 9 0.5 15 28.7 33.4 38.05 1 60 12.5 37.1 4 4.4 2.5 24.8 3.75 5 10
NOTE IN THE DRAWING:
1 = inlet
2 = outlet
3 = exhaust
12 = pilot supply
R = poppet chamber
exhaust
