COMPACT AND SHORT-STROKE CYLINDERS
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
102

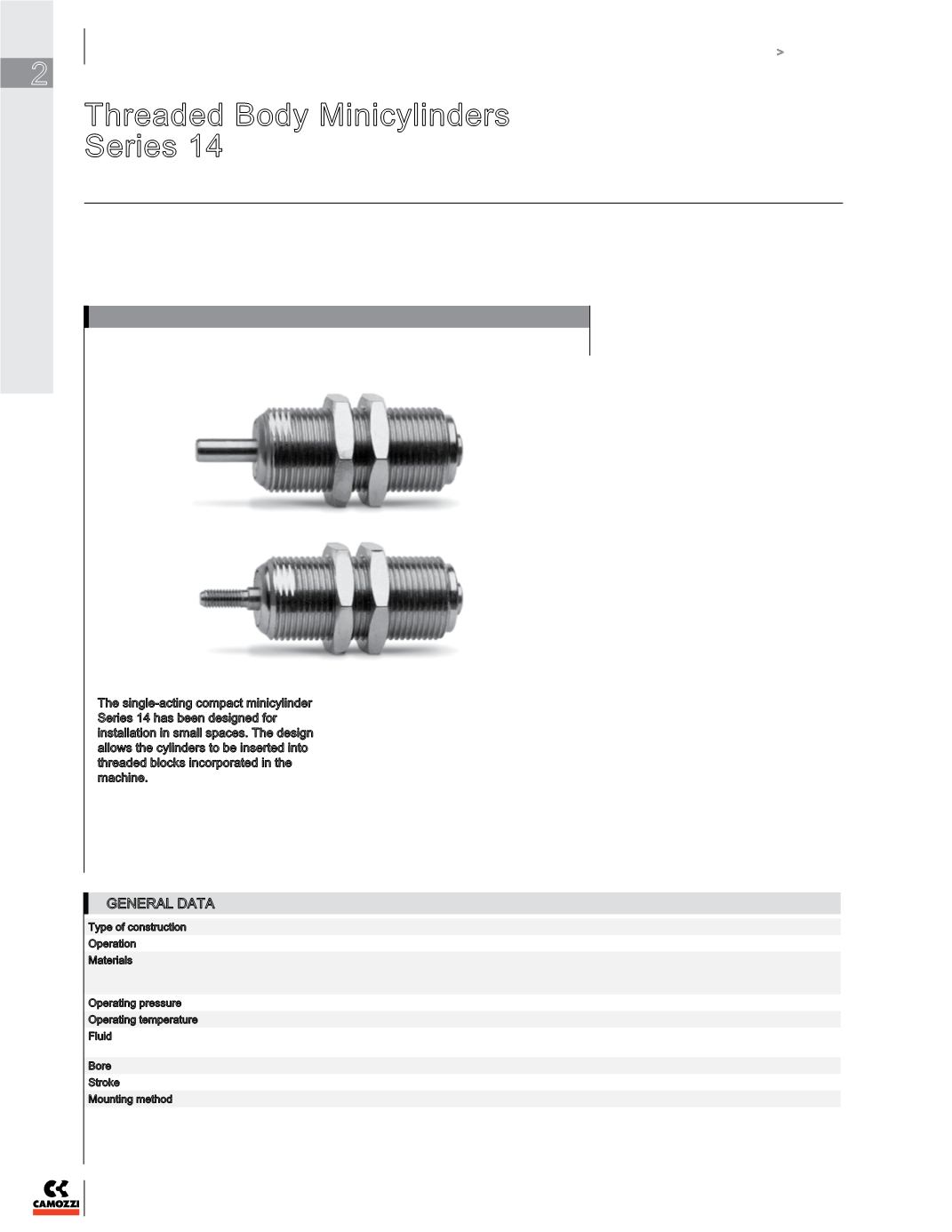

Threaded Body Minicylinders
Series 14
Single-acting
ø 6, 10, 16 - Strokes 5, 10, 15 mm
with super-rapid fitting ø 4 and M5 port
The single-acting compact minicylinder
Series 14 has been designed for
installation in small spaces. The design
allows the cylinders to be inserted into
threaded blocks incorporated in the
machine.
All the minicylinders are supplied with
a super-rapid fitting incorporated in a
tube ø 4 or with a M5 thread. They are
available in two versions with either a
threaded or a non threaded piston rod.
GENERAL DATA
»
»
Compact design
»
»
With threaded or non
threaded piston rod
»
»
Threaded body
Type of construction compact, non magnetic
Operation
single-acting
Materials
body = brass
seals = NBR
other = stainless steel
Operating pressure
P. min 2,5 bar - P. max 8 bar
Operating temperature 0°C – 80°C (with dry air - 20°C) (32 - 176°F, with dry air -4°F)
Fluid
clean air, without lubrication. If lubricated air is used, it is recommended to use oil ISOVG32. Once applied the lubrication should
never be interrupted.
Bore
ø 6, 10, 16
Stroke
see table
Mounting method
by means of threaded body
