COMPACT AND SHORT-STROKE CYLINDERS
Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
110
It is possible to determine the amount of strokes required in the
general data (excluding radial loads and torque moments).
When imposing radial loads on the cylinder it is important to
respect the maximum stroke of the baricenter.
In the presence of torque moments, respect the maximum stroke
as shown in the diagrams.

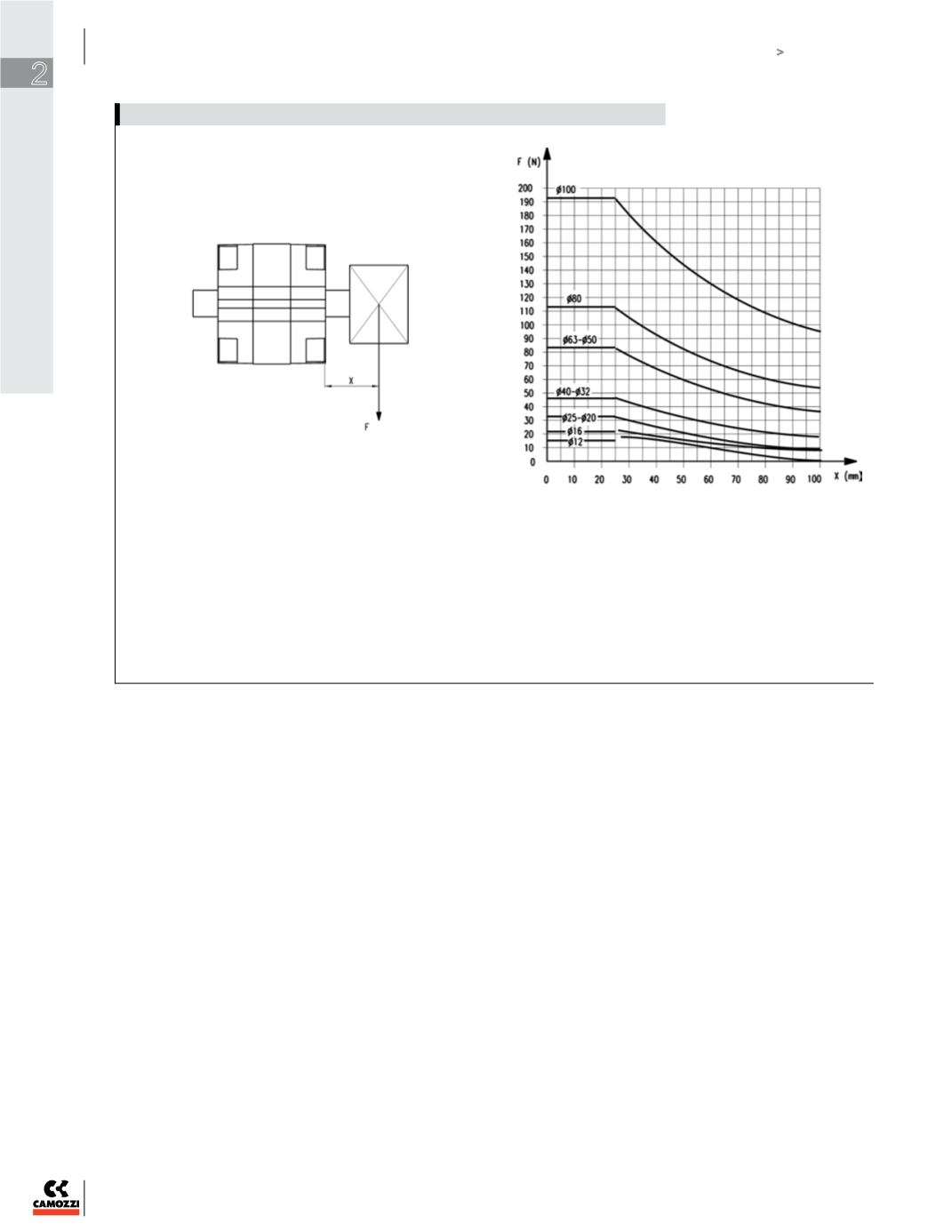

TRANSVERSAL LOAD THROUGH-ROD - dependant on stroke
