Compact and Short-Stroke Cylinders
2
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
COMPACT AND SHORT-STROKE CYLINDERS
109
It is possible to determine the amount of strokes required in the
general data (excluding radial loads and torque moments).
When imposing radial loads on the cylinder it is important to
respect the maximum stroke of the baricenter.
In the presence of torque moments, respect the maximum stroke
as shown in the diagrams.
It is possible to determine the amount of strokes required in the
general data (excluding radial loads and torque moments).
When imposing radial loads on the cylinder it is important to
respect the maximum stroke of the baricenter.
In the presence of torque moments, respect the maximum stroke
as shown in the diagrams.

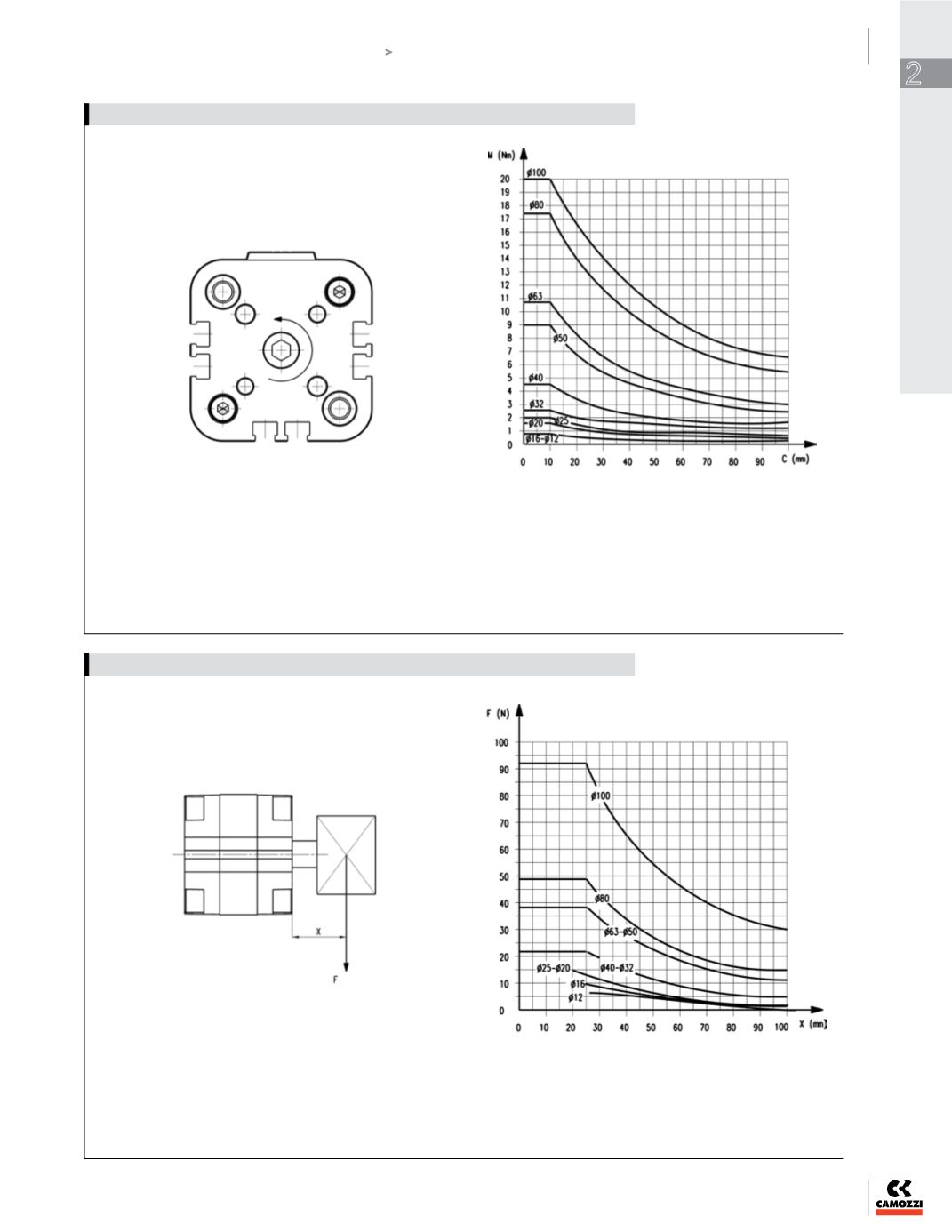

TORQUE MOMENT - dependant on stroke C
TRANSVERSAL LOAD - dependant on stroke
