RODLESS AND GUIDED/TWIN-BORE CYLINDERS
Rodless and Guided/Twin-Bore Cylinders
4
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
228

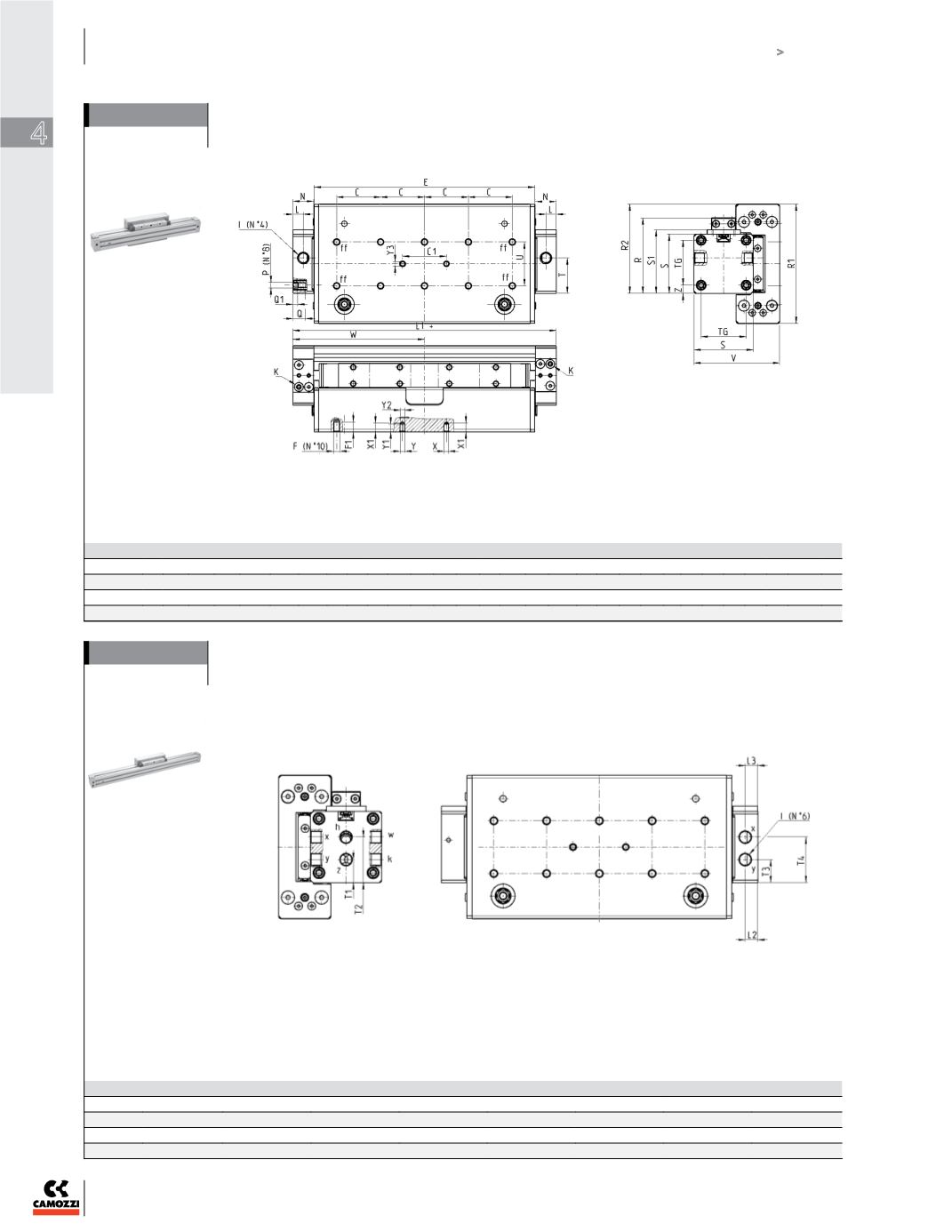

Cylinders with Roller bearings Mod. 52R2P
The cylinder has two supply ports “I” for both endcovers. The operator needs to choose which one of the two
ports to use on each end cover. The remaining port has to be closed with the supplied tap.
DIMENSIONS (mm)
Mod.
Ø W E L1 I
L T U N C F F1 TG Z S R1 P V Q Q1 ØY2 Y ØX Y1 X1 Y3 C1 S1 R2 R
52
R2P25A
25 100 160 200
G1/8 9,5 25 40 19 40 M5 7,5 36 4,5 45 97 M4 68 11 3 4 4,5 4 7 8 4 40 49 71 60
52
R2P32A
32 120 201 240
G1/8 9,5 32,5 40 19 40 M6 9 41 5,5 54 109 M5 78 11 4 4 4,5 4 7 8 4 40 58 81,5 69
52
R2P40A
40 150 252 300
G1/4 11,5 38 55 23 55 M6 12 49 7,5 64 145 M6 90.5 12 4 6 6,5 6 7 8 6 40 68 104,5 82
ff = these holes are not
present in cylinder 25
+ add the stroke
K = cushion regulation
screw
Cylinders with Roller bearings Mod. 52R8P
The cylinder has six ports, three for one direction (x-h-w), and the other three (y-z-k) for the opposite direction.
With supporting feet (Mod. B-52 / BA-52), ports “h” and “z” have to be closed.
DIMENSIONS (mm)
Mod.
Ø
T1
T2
T3
T4
L2
L3
I
52
R8P25A
25
13,5
29,5
13,5
28,5
8
11
G1/8
52
R8P32A
32
17,5
34,5
17,5
34,5
9,5
9,5
G1/8
52
R8P40A
40
15,5
38
20,5
42,5
11,5
11,5
G1/4
Where no dimensions
are presented, refer to
dimensions of cylinder
model 52R2P. The guide
can be applied on the right
side, if requested.
