ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
6

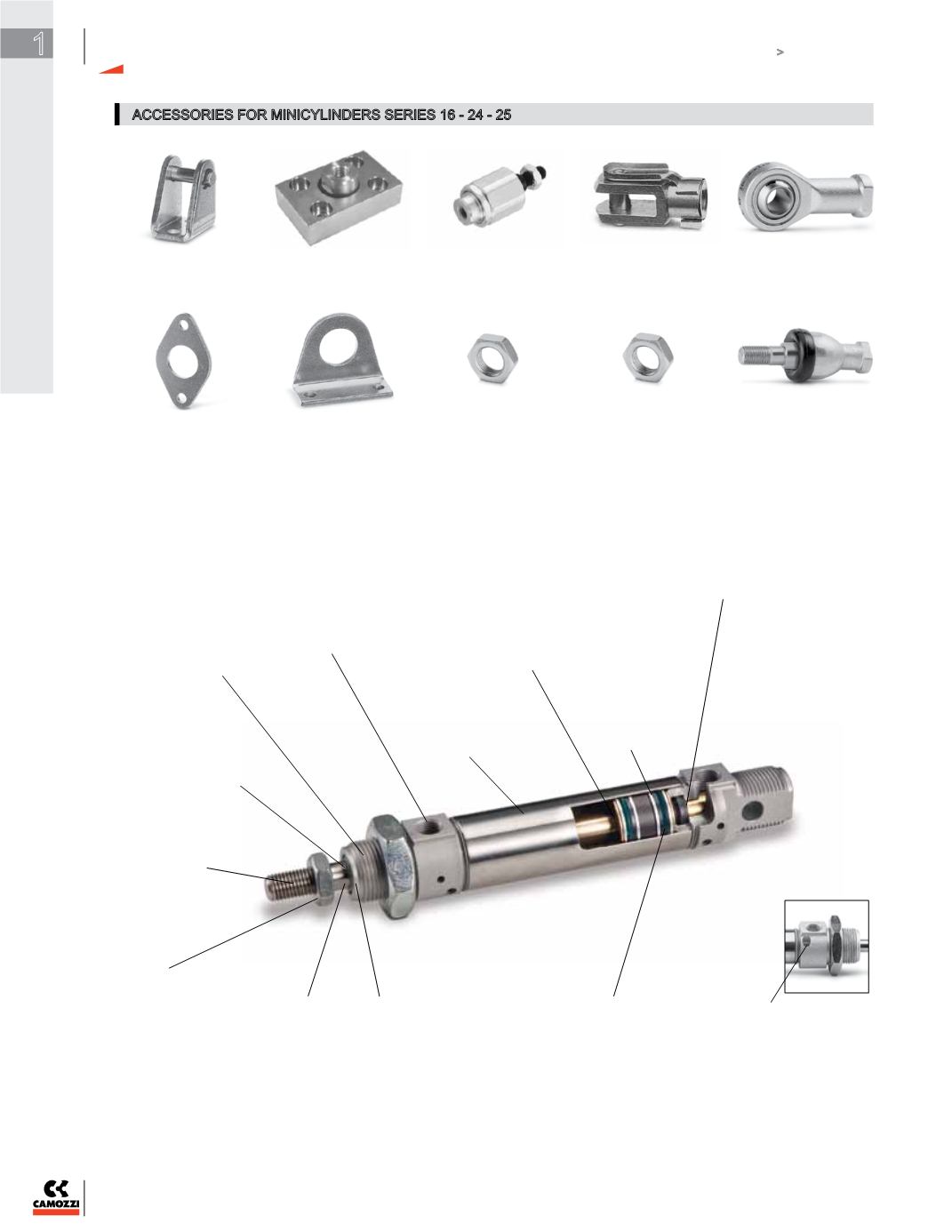

ACCESSORIES FOR MINICYLINDERS SERIES 16 - 24 - 25
Rear trunnion bracket
Mod. I
Coupling piece
Mod. GKF
Self aligning rod
Mod. GK
Rod fork end Mod. G Swivel ball joint Mod. GA
Front/rear flange mount
Mod. E
Foot mount Mod. B
Front Cap nut Mod. V
All accessories are supplied separately, except for Piston rod nut Mod. U and Nose nut Mod. V
Piston rod nut Mod. U Piston rod socket joint
Mod. GY
Rod Gland
Rod Bearing is oil
impregnated, sintered
bronze containing
graphite for high
speed and heavy load
applications.
Heads and Caps
Heads and Caps are
lightweight aluminum
that have been precision
machined and anodized.
Piston Bumpers
Shock absorbing
bumpers reduce
noise and piston
wear. Standard
(
Series 16 and 24).
Piston
Aluminum, two–
piece design allows
for a solid magnet
ensuring consistent
switch sensing.
Nylon wear ring
increases piston
support while
reducing wear and
friction. (Series 24
and 25).
AdjustableCushion
Seal Design
Precision–machined
piston spears combined
with floating cushion
collar allow for a smooth
deceleration at end of
stroke. Cushion collar
is specifically designed
for rapid low–pressure
breakaway when stroke
reverses (Series 25).
Cylinder Tube
Stainless Steel tube that
provides superior seal life
and wear resistance.
Piston Rod
All stainless steel ground
and polished rods,
burnished for improved
seal life and reduced
wear. Standard.
Rod Threads
Threads are rolled
Stainless Steel for greater
strength..
Rod Nut
Threads are rolled
Stainless Steel for
greater strength.
Key Flat
Hydraulically
pressed key flat.
Rod and Wiper Seal
Piston rod lip seal and wiper
combination. A compact
design, allowing for greater
bushing support without
sacrificing sealing ability.
Standard polyurethane.
Cushion Adjustment
Recessed and captive
cushion adjustment screws.
Fine thread adjustment for
greater repeatability and
accuracy. Standard Viton
(
Series 25).
Piston Seals
Rounded lip u–cup seal
reduces friction; specifically
designed for lube or non–
lube service. Maintains
factory prelube against
the cylinder wall. Standard
polyurethane.
