ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
8
ø Rod extension [X]
(
mm)
Holding force
[
static load] (N)
20
+50
300
25
+48
400

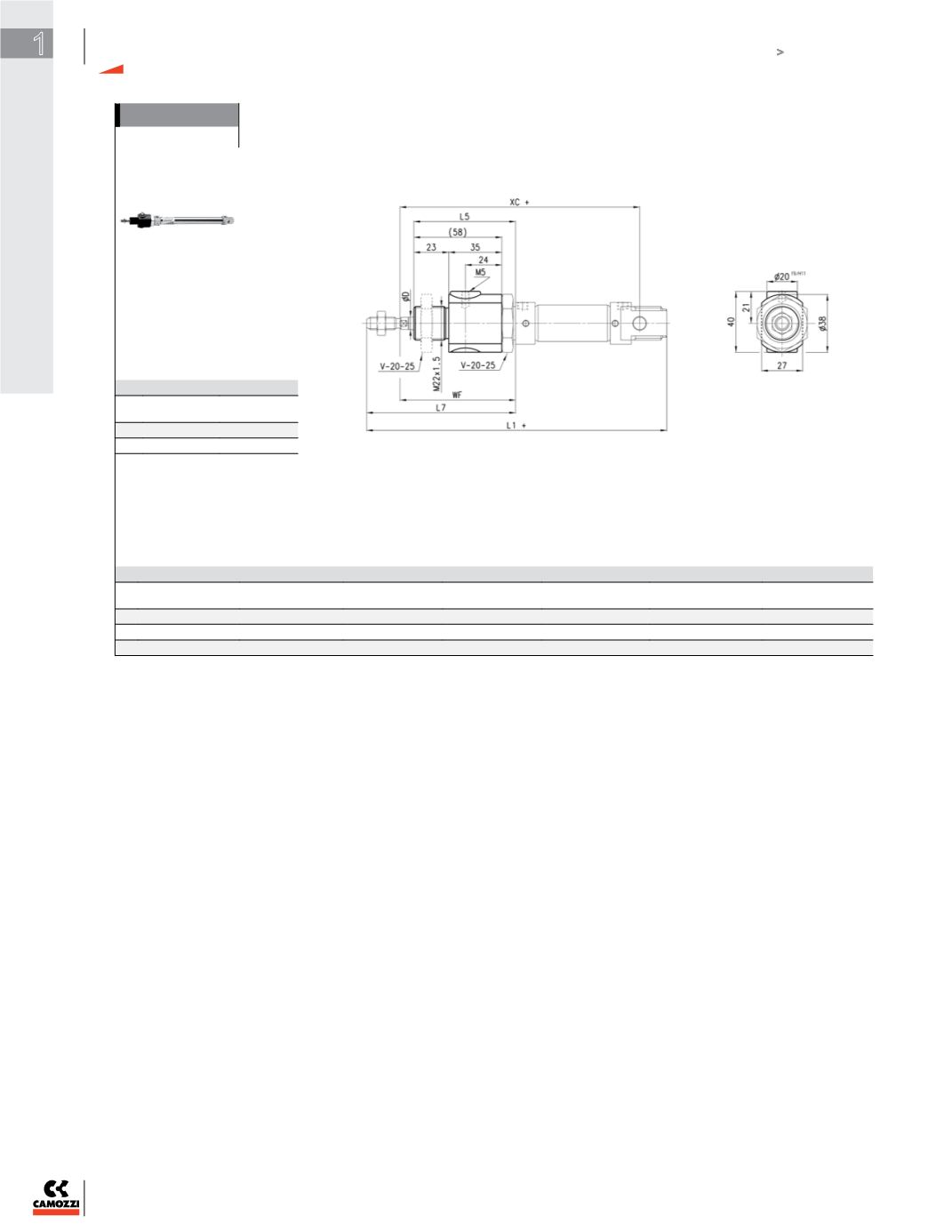

Minicylinders Series 16, 24 and 25 with rod lock (Mod. RLC)
DIMENSIONS (mm)
Clamping Force
(
Static Load)
Ø
G7
D
WF
L5
L7
XC+
L1+
F (N)
20
8
74
70
94
145
182
300
25
10
76
70
98
152
189,5
400
+ = add the stroke
