ISO / VDMA CYLINDERS
ISO / VDMA Cylinders
1
7

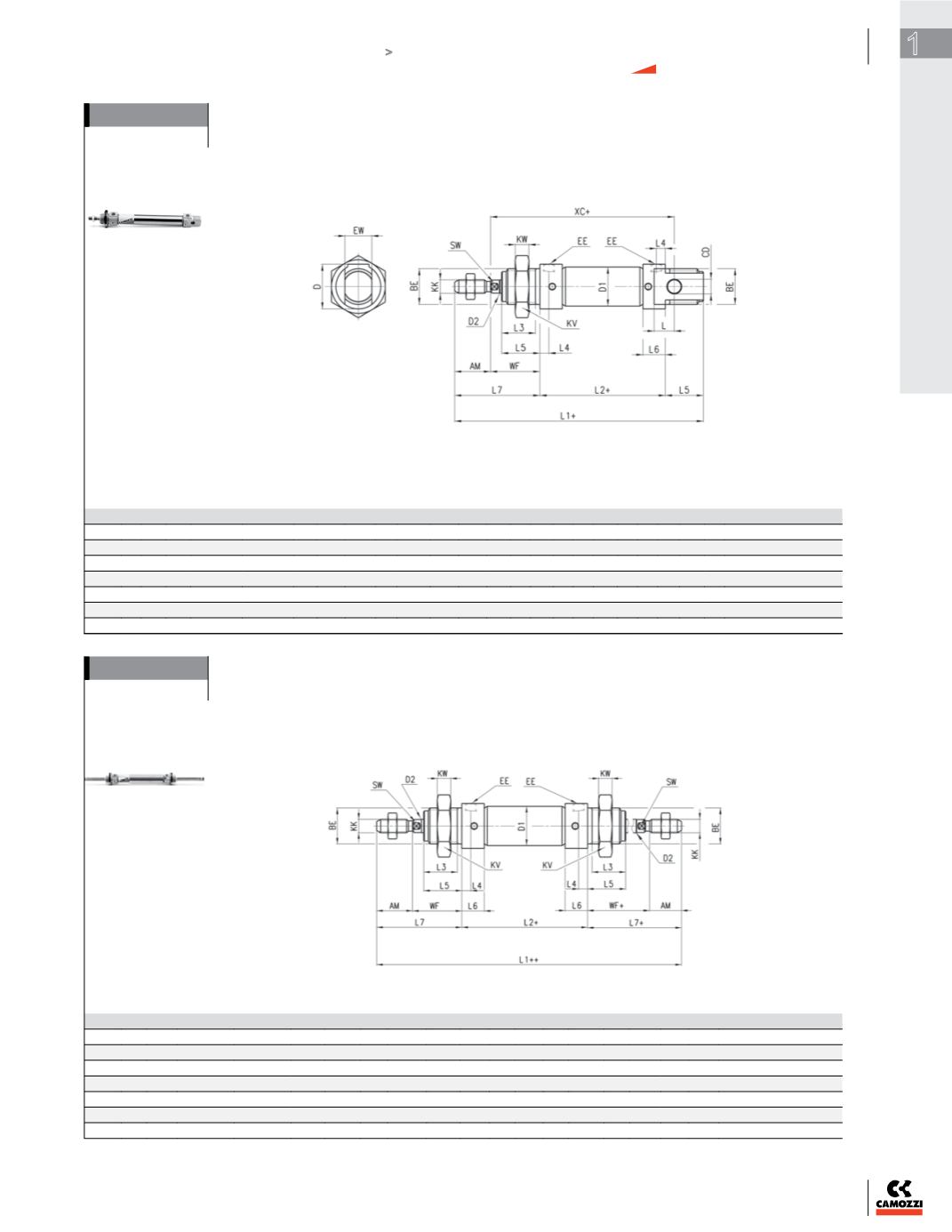

Minicylinders Series 16, 24 and 25
DIMENSIONS (mm)
Mod.
Ø EW KW BE
KK CD D1 EE ØD2 L1+ XC+ L2+ AM L3 L4 L5 L WF L6 L7 KV SW D cushion strokes front/rear
16
8 8 7
M12x1,25 M4x0,7 4 9,3 M5 4 86 64 46 12 10 4,5 12 6 16 9 28 19 -
15
- / -
16
10 8 7
M12x1,25 M4x0,7 4 11,3 M5 4 86 64 46 12 10 4,5 12 6 16 9 28 19 -
15
- / -
16
12 12 8
M16x1,5 M6x1 6 13,3 M5 6 105 75 50 16 15 4,5 17 9 22 9 38 24 5 20
- / -
24-25
16 12 8
M16x1,5 M6x1 6 17,3 M5 6 111 82 56 16 15 5,5 17 9 22 10 38 24 5 20
10 / 10
24-25
20 16 10
M22x1,5 M8x1,25 8 21,3 G1\8 8 132 95 68 20 18 8 20 12 24 16 44 32 7 27
13 / 15
24-25
25 16 10
M22x1,5 M10x1,25 8 26,5 G1\8 10 141,5 104 69,5 22 20 8 22 12 28 16 50 32 9 27
16 / 14
+ = add the stroke
Minicylinders Series 16, 24 and 25 - through-rod
DIMENSIONS (mm)
Mod.
Ø KW BE
KK ØD1 EE ØD2 L1++ L2+ AM L3 L4 L5 WF+ L6 L7+ KV SW cushion strokes front/rear
16
8 7
M12x1,25 M4x0,7 9,3 M5 4 102 46 12 10 4,5 12 16 9 28 19 -
- / -
16
10 7
M12x1,25 M4x0,7 11,3 M5 4 102 46 12 10 4,5 12 16 9 28 19 -
- / -
16
12 8
M16x1,5
M6x1 13,3 M5 6 126 50 16 15 4,5 17 22 9 38 24 5
- / -
24-25
16 8
M16x1,5
M6x1 17,3 M5 6 132 56 16 15 5,5 17 22 10 38 24 5
10 / 10
24-25
20 10
M22x1,5 M8x1,25 21,3 G1\8 8 156 68 20 18 8 20 24 16 44 32 7
13 / 15
24-25
25 10
M22x1,5 M10x1,25 26,5 G1\8 10 169,5 69,5 22 20 8 22 28 16 50 32 9
16 / 14
+ = add the stroke
++ = add the stroke two
times
