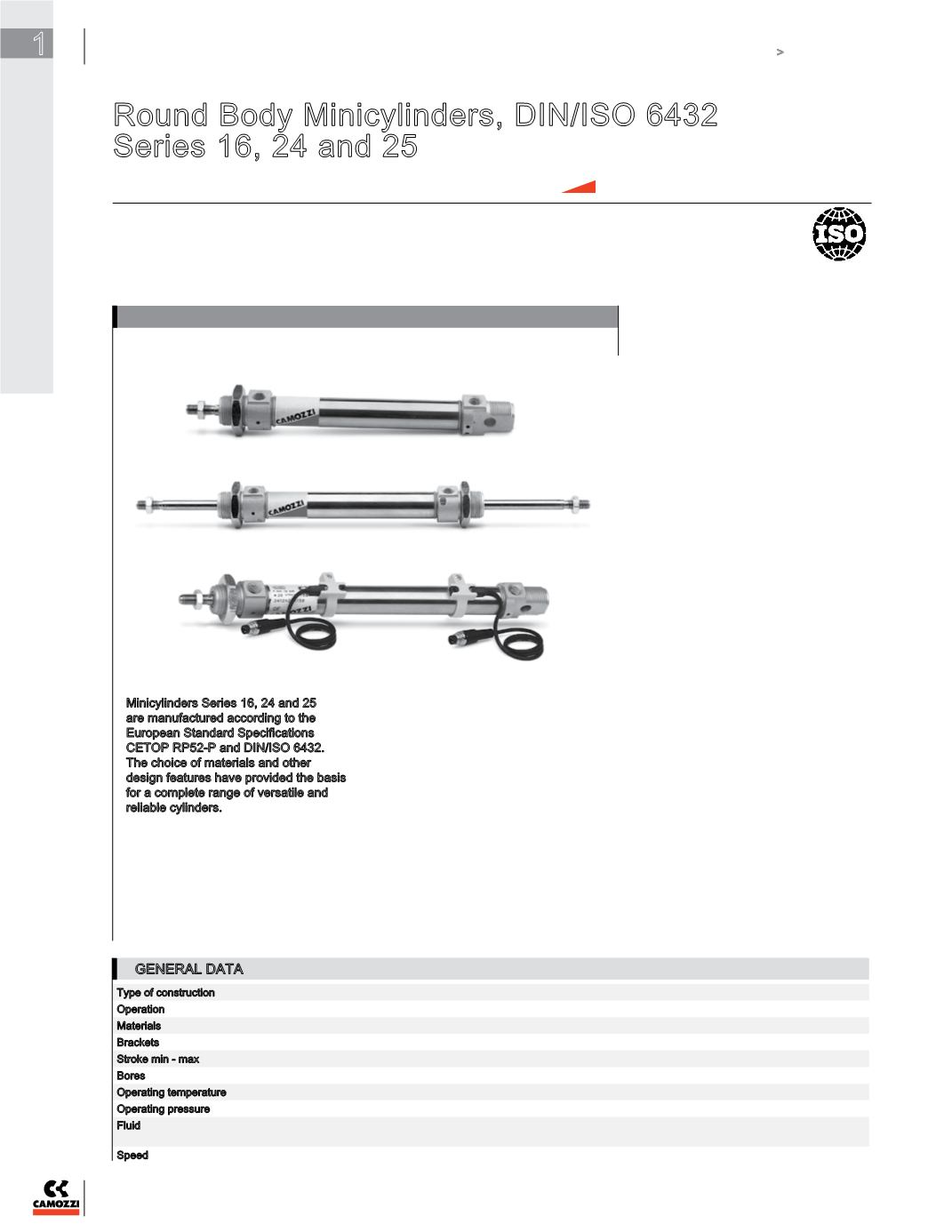

Round Body Minicylinders, DIN/ISO 6432
Series 16, 24 and 25
Series 16: ø 8 - 10 - 12 bumpers
Series 24: ø 16 - 20 - 25 bumpers and magnetic piston
Series 25: ø 16 - 20 - 25 adjustable cushion and magnetic piston
Minicylinders Series 16, 24 and 25
are manufactured according to the
European Standard Specifications
CETOP RP52-P and DIN/ISO 6432.
The choice of materials and other
design features have provided the basis
for a complete range of versatile and
reliable cylinders.
The precise method of crimping the tube
at the head and cap ensures that all the
parts are perfectly aligned. Since the
Series 16 and 24 may operate at very
high speeds, bumpers are attached to
the piston as standard in order to reduce
noise and wear resulting from high
impact loads.
Series 24 and 25 are suitable for
mounting magnetic proximity switches.
Series 25 has an adjustable pneumatic
cushion and a magnetic piston.
Various mounting accessories are
available to enable the cylinders to
function in a variety of applicaitons.
GENERAL DATA
»
»
Single or double-acting
»
»
Standard CETOP
RP52P DIN/ISO 6432
»
»
Stainless steel rod and tube
»
»
Anodized AL heads and caps
Type of construction crimped
Operation
single-acting or double-acting
Materials
end-caps = anodized AL, tube and rod = stainless steel, piston = AL, seals = NBR - PU, other parts = see coding
Brackets
rod end, flange, feet, trunnion (mounting brackets are supplied separately from the cylinders)
Stroke min - max
Series 16 ø 8 – ø 10: 10 - 250 mm / Series 16: ø 12: 10 - 300 mm / Series 24 & 25 ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm
Bores
Series 16: ø 8, 10, 12 / Series 24 & 25: ø 16, 20, 25
Operating temperature 0°C – 80°C (with dry air -20°C) (32 - 176°F, with dry air -4°F)
Operating pressure
1 – 10
bar (double-acting); 2 – 10 bar (single-acting) (14.5 - 145 psi DA, 29 - 145 psi SA)
Fluid
filtered air, without lubrication. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication
should never be interrupted.
Speed
10 – 1000
mm/sec (without load)
