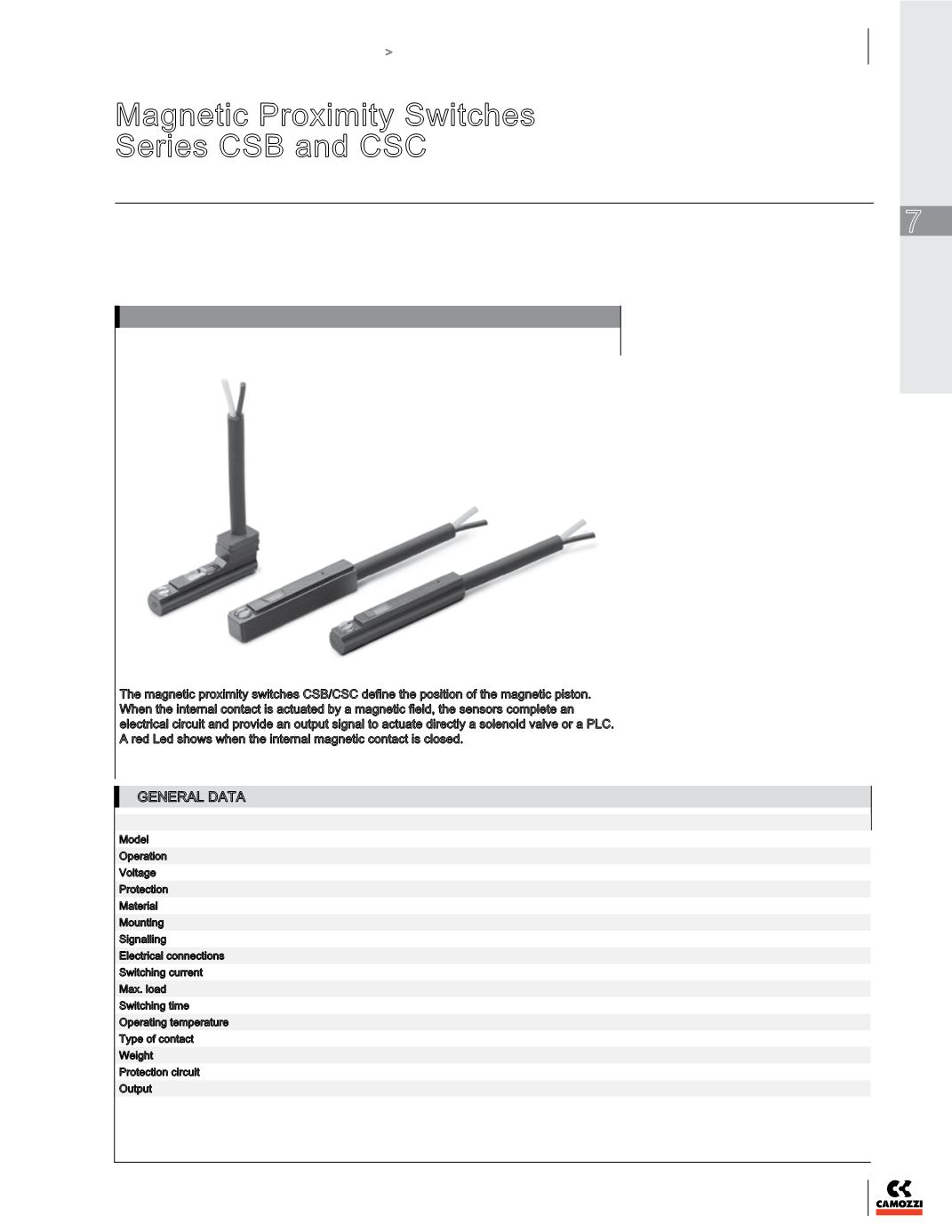

Magnetic Proximity Switches
Series CSB and CSC
Reed switches
The magnetic proximity switches CSB/CSC define the position of the magnetic piston.
When the internal contact is actuated by a magnetic field, the sensors complete an
electrical circuit and provide an output signal to actuate directly a solenoid valve or a PLC.
A red Led shows when the internal magnetic contact is closed.
The reed switch that has a mechanical
switching element, is suitable for voltages,
AC and DC up to 110 V. Proximity
switches mod. CSC are suitable for gripper
mod. CGL. The proximity switches are
impregnated in a sealed isolating cover.
These sensors are designed to fit into the
grooves provided in the profile barrel of the
grippers.
For electrical connections see schemes.
»
»
Mod. CSB for direct
mounting on all gripper
series, except gripper CGL
»
»
Mod. CSC for direct mounting
on series CGL grippers
GENERAL DATA
Model
CSB-220 CSC-220
Operation
Reed contact
Voltage
3 – 110
V AC/DC
Protection
IP66
Material
Plastic body encapsulating epoxy resin
Mounting
directly into the groove
Signalling
by means of LED (red)
Electrical connections 2 x 0,14 cable ( 2 m )
Switching current
3 – 50
mA
Max. load
8
W, 10 VA
Switching time
<1 ms (1/1000 sec)
Operating temperature -10°C – 60°C, ( 14°F - 140°F )
Type of contact
Normally Open
Weight
18
g
Protection circuit
None
Output
-
