Proximity Switches
7
NORTH AMERICAN CYLINDER & ACTUATOR CATALOG
>
Release 8.5
Proximity Switches
337

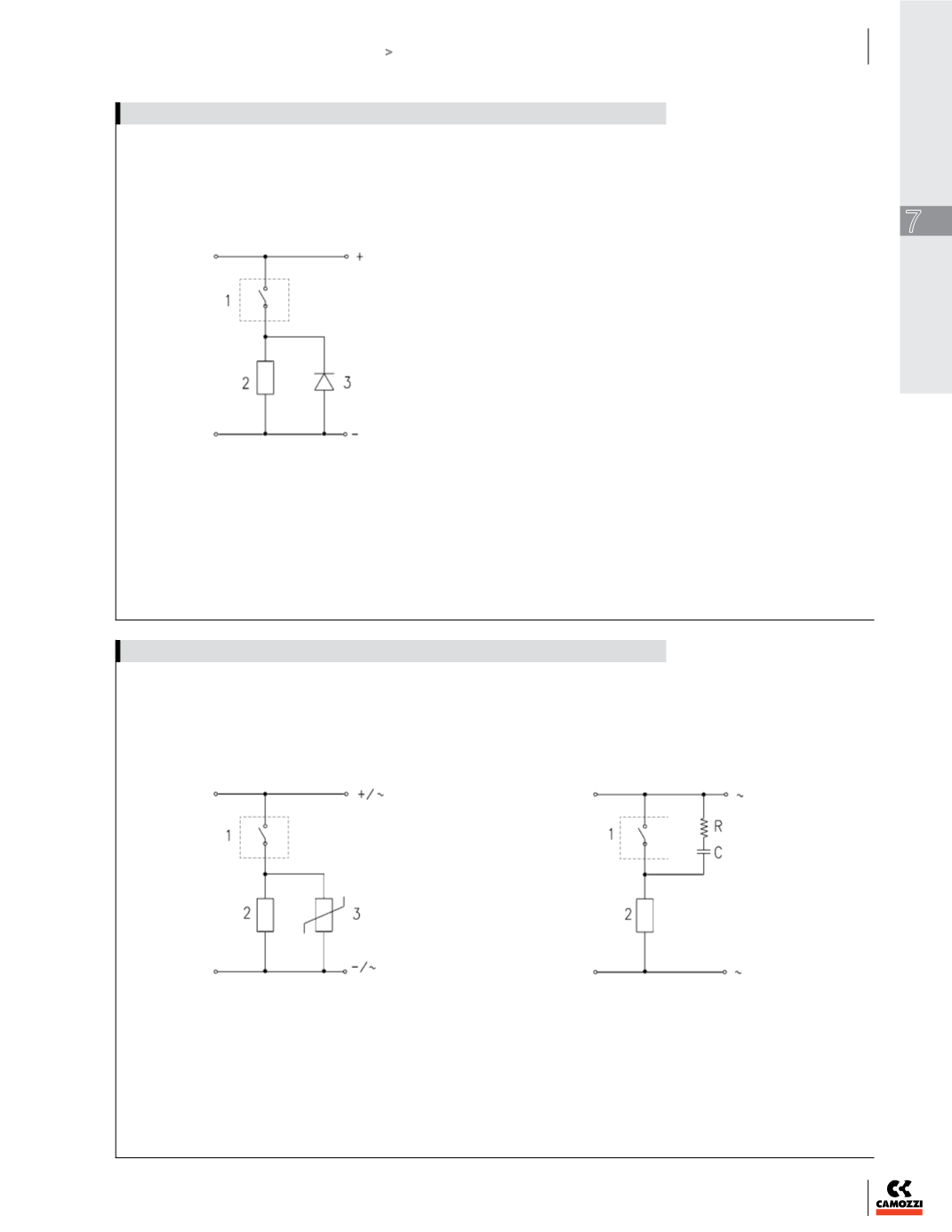

DC applications: there is no protection on the Reed sensors on
the inductive load, therefore it is advisable to use an electric ciruit
with protection against the voltage spikes.
See picture above for a typical example.
Legend:
1
= Sensor
2
= Load
3
= Protection diode
DC and AC applications: there is no protection on the Reed
sensors on the inductive load, therefore it is advisable to use an
electric ciruit with protection against the voltage spikes.
See picture above for a typical example.
Legend:
1
= Sensor
2
= Load
3
= Protection varistor
AC applications: there is no protection on the Reed sensors on
the inductive load, therefore it is advisable to use an electric
circuit with protection against the voltage spikes.
See picture above for a typical example.
Legend:
1
= Sensor
2
= Load
C + R = Series of resistor and protection capacitor
Electric circuit with protection against voltage spikes
Electric circuit with protection against voltage spikes
