Magnetic proximity switch Series CST
Length cable 2 mt. or 5 mt.
*
= Mod. CST-220 and CSV-220 suitable up to 230 V AC.

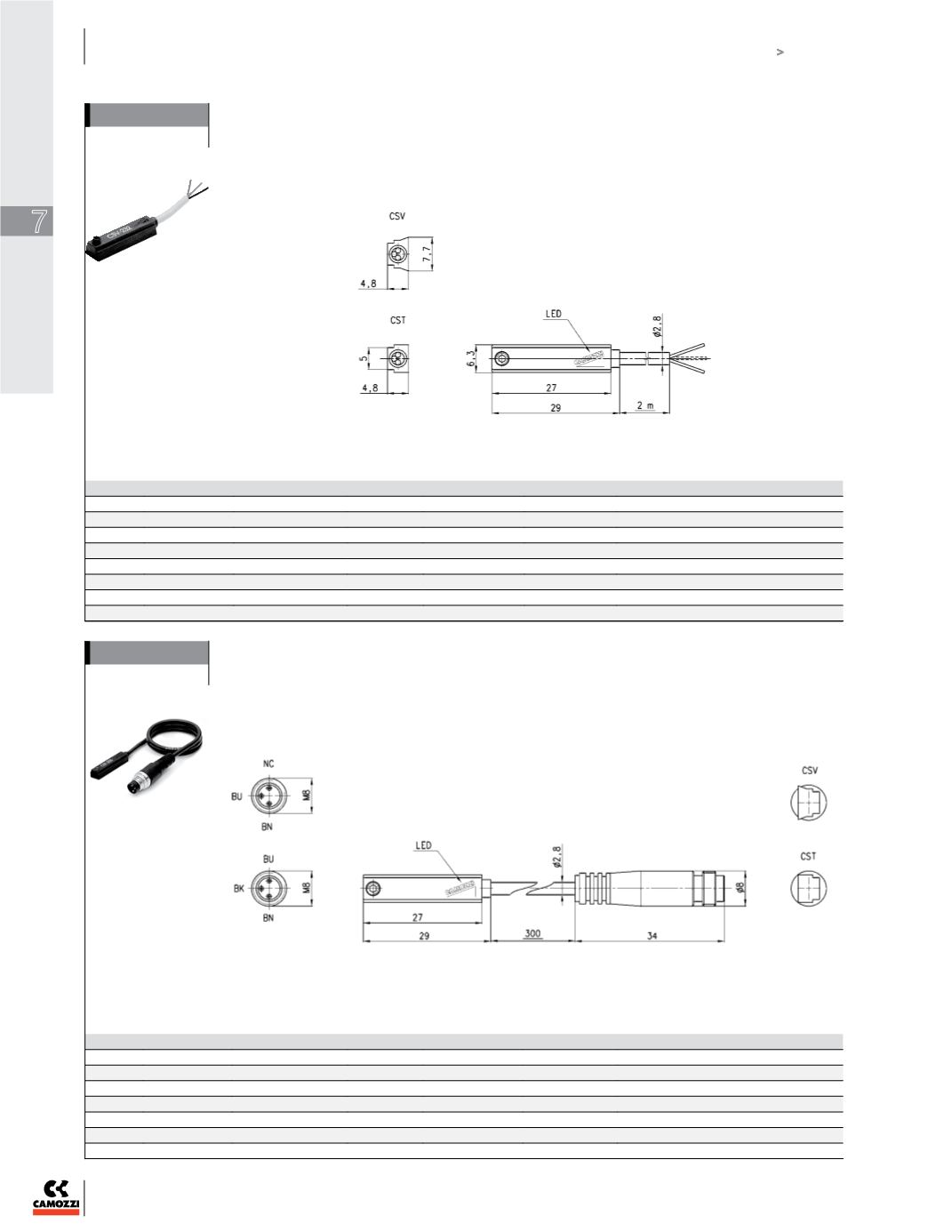

DIMENSIONS (mm)
Mod.
Operation
Voltage (V)
Output
Max. current
Max. Load
Protection
CST-220
Reed
10-110*
AC/DC
-
250
mA
None
CSV-220
Reed
10-110*
AC/DC
-
250
mA
None
CST-220-5
Reed
10-110*
AC/DC
-
250
mA
None
CST-232
Reed
5-30
AC/DC
PNP
250
mA
Against polarity reversing
CSV-232
Reed
5-30
AC/DC
PNP
250
mA
Against polarity reversing
CST-332
Electronic
10-27
DC
PNP
100
mA
Against polarity reversing and overvoltage
CSV-332
Electronic
10-27
DC
PNP
100
mA
Against polarity reversing and overvoltage
In case of polarity reversing
the sensor will still be
operating, but the LED
diode won’t turn on.
Magnetic proximity switch Series CST with male connector M8
Length cable 0,3 mt.
Mod.
Operation
Voltage (V)
Output
Max. current
Max. Load
Protection
CST-250N
Reed
10-110*
AC/DC
-
250
mA
None
CSV-250N
Reed
10-110*
AC/DC
-
250
mA
None
CST-262
Reed
5-30
AC/DC
PNP
250
mA
Against polarity reversing
CSV-262
Reed
5-30
AC/DC
PNP
250
mA
Against polarity reversing
CST-362
Electronic
10-27
DC
PNP
100
mA
Against polarity reversing and overvoltage
CSV-362
Electronic
10-27
DC
PNP
100
mA
Against polarity reversing and overvoltage
In case of polarity reversing
the sensor will still be
operating, but the LED
diode won’t turn on.
