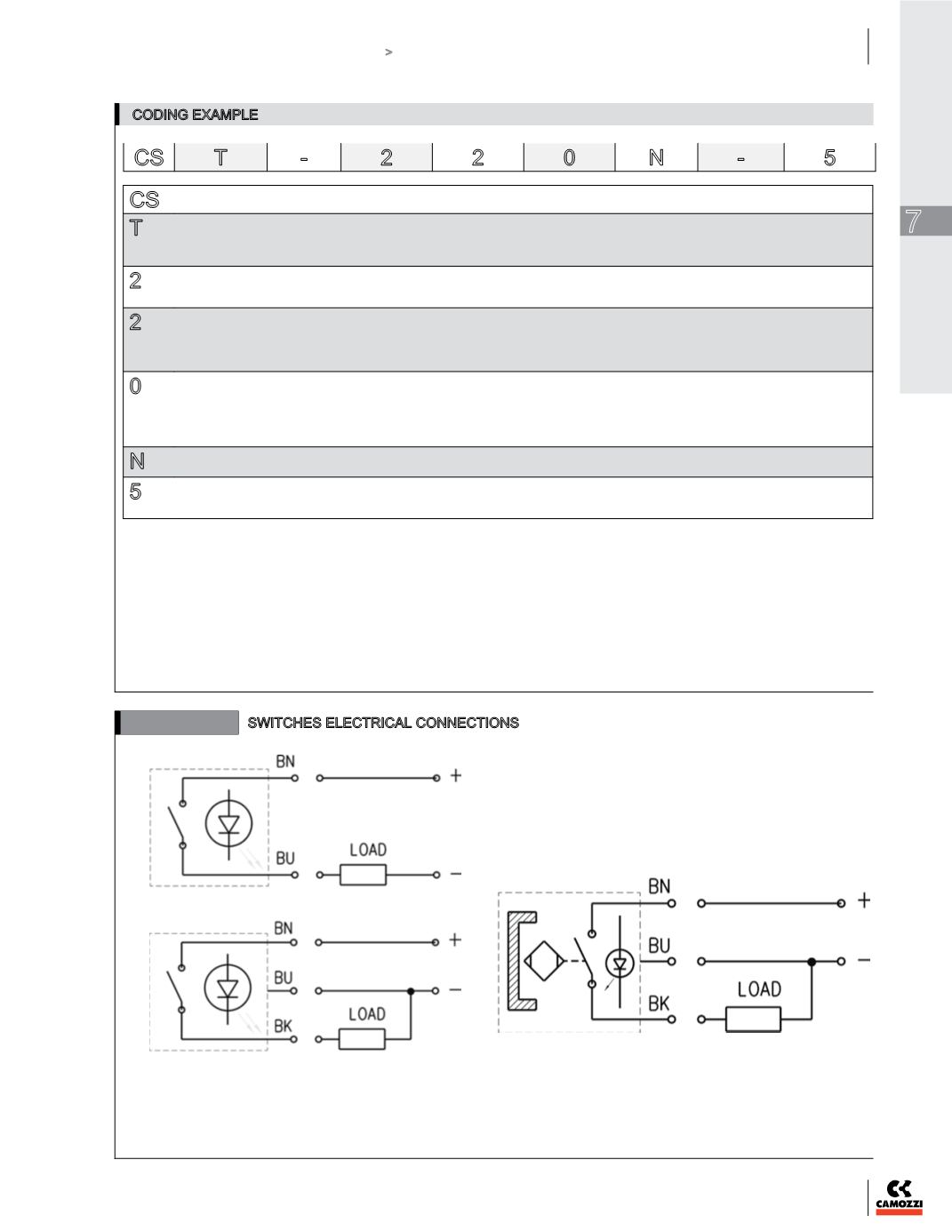

SWITCHES ELECTRICAL CONNECTIONS
Reed switches
BN = brown
BU = blue
BK = black
Electronic switches
BN = brown
BU = blue
BK = black
CODING EXAMPLE
CS T
-
2
2
0
N -
5
CS
SERIES
T
SLOT TYPE
T = T-slot
V = V-slot
H = frontal inserting slot
2
OPERATION
2
= reed
3
= electronic
2
CONNECTIONS
2
= 2 wires (Reed only )
3
= 3 wires
5
= 2 wires with M8 connector (Reed only )
6
= 3 wires with M8 connector
0
POWER SUPPLY VOLTAGE
0
= 10-110V DC; 10-230V AC (PNP)
1
= 30-110V DC; 30-230V AC (PNP)
2
= 3 wires cst (PNP)
3
= 10-30V AC/DC (PNP)
4
= 10-27V DC (PNP)
N
NOTE
N = ACCORDING TO NORM (CST/CSV-250N only)
5
LENGTH OF THE CABLE (for CSH only):
2
= 2 mt
5
= 5 mt
