Wegeventile Serie CFB Edelstahl
ANSTEUERN >
KATALOG
>
Version 8.8
/1.31.02
2
ANSTEUERN

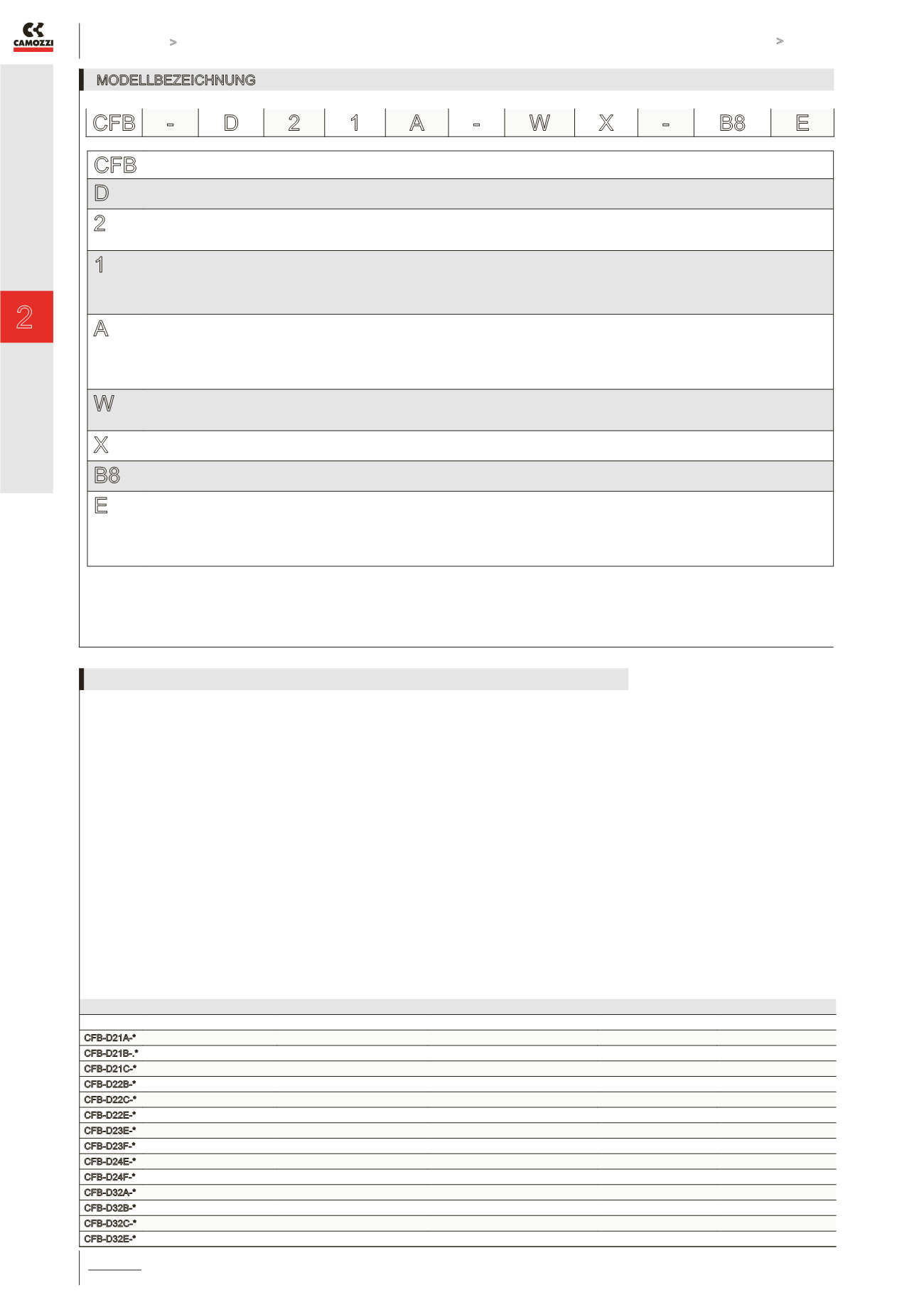

MODELLBEZEICHNUNG
CFB
SERIE
D
BAUART
D = direktgesteuert (Sitzventil)
2
FUNKTION
2 = 2/2-Wege NC
3 = 3/2-Wege NC
1
ANSCHLÜSSE
1 = G1/8
2 = G1/4
3 = G3/8
4 = G1/2
A
NENNWEITE
A = 1,5 mm
B = 2 mm
C = 2,5 mm
E = 3 mm
F = 4 mm
W
WERKSTOFFE DICHTUNGEN
W = FKM
E = EPDM (auf Anfrage)
X
WERKSTOFFE KÖRPER
X = Edelstahl
B8
SPULENABMESSUNGEN
B8 = 30 mm
E
SPANNUNGEN
B = 24 V AC 50 Hz
D = 110 V AC 50/60 Hz
E = 230 V AC 50/60 Hz
2 = 12 V DC
3 = 24 V DC
CFB -
D 2 1 A -
W X -
B8 E
Spulenarten und Stecker (Mod. 124-800) siehe Seite 2/2.35.
* Bitte Code gemäß Modellbezeichnung ergänzen
PRODUKTÜBERSICHT
Mod.
24V AC 50 Hz
110V AC 50/60 Hz
220/230V AC 50/60 Hz
12V DC
24V DC
CFB-D21A-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D21B-.*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D21C-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D22B-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D22C-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D22E-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D23E-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D23F-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D24E-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D24F-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D32A-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D32B-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D32C-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
CFB-D32E-*
B8B (15VA)
B8D (15VA)
B8E (15VA)
B82 (19W)
B83 (19W)
SPULENAUSWAHL-TABELLE
