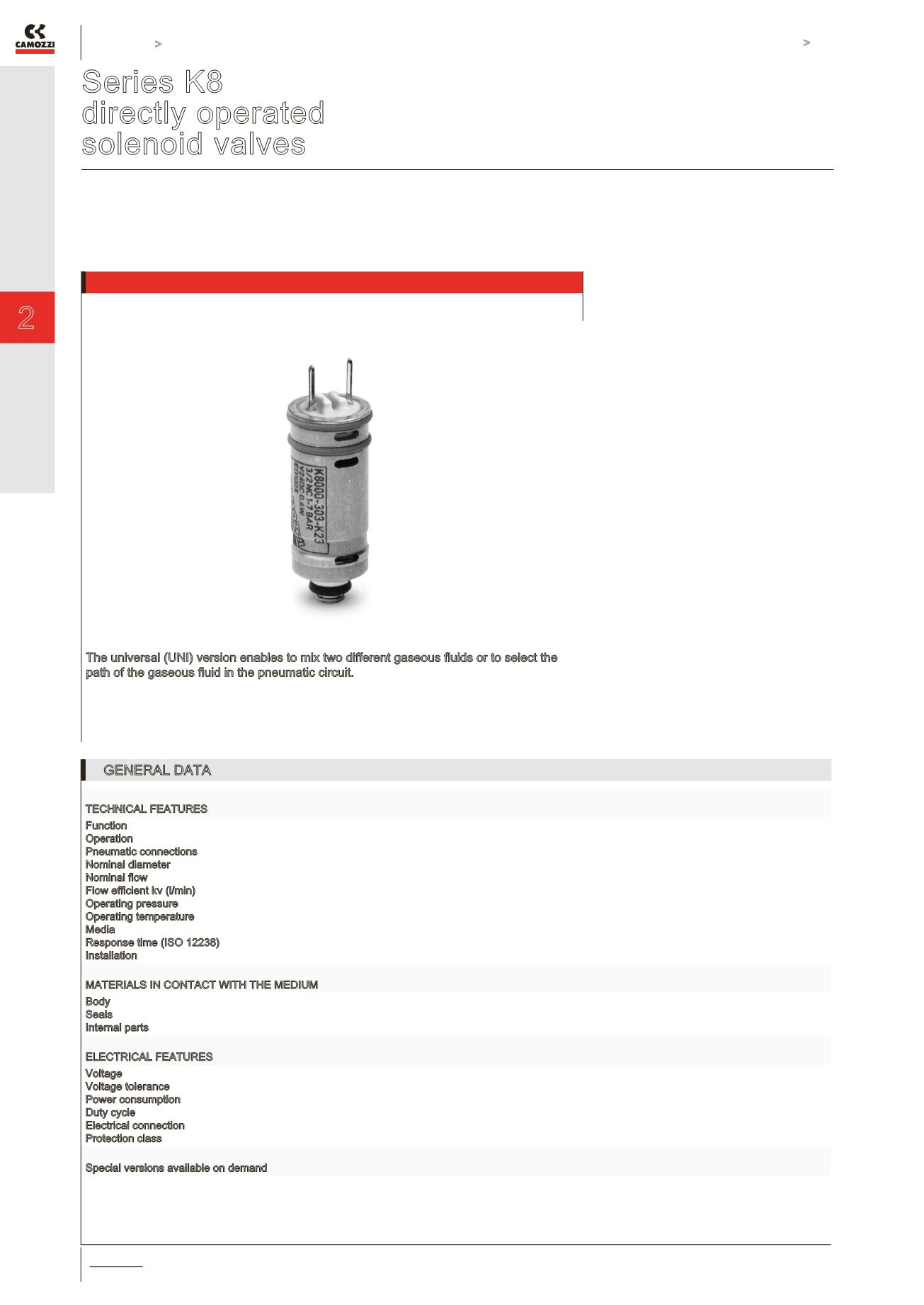

Series K8 solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
11
CONTROL
Series K8
directly operated
solenoid valves
2/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Universal (UNI)
The universal (UNI) version enables to mix two different gaseous fluids or to select the
path of the gaseous fluid in the pneumatic circuit.
Thanks to their particular design these
valves can be used in applications where
very compact solutions are required as well
as high performances.
Series K8 is used to control actuators
or very small devices and it is suitable
for portable equipments thanks to low
power consumption, reduced weight and
dimensions.
» » Compact design
»
» High performances
» » Manifold mounting
» » Long life
»
» Version for use with
oxygen available
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow efficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time (ISO 12238)
Installation
2/2 NC - 3/2 NC - 2/2 NO - 3/2 NO - 3/2 UNI
direct acting poppet type
manifold cartridge
0.5 - 0.7 mm
see kv
0.08 - 0.15
-1 ÷ 3 ... 7 bar
0°C ÷ 50°C
filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas
ON <10 msec – OFF <10 msec
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
brass - stainless steel - PBT technopolymer
FKM
stainless steel
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - 6 V DC - other voltages on demand
±10%
0.6 W
ED 100%
2 Pin 0.5 x 0.5 spacing 4 mm
IP00
Special versions available on demand To order the version for use with oxygen, please add OX1 at the end of the standard code.
