Series K8 solenoid valves
CONTROL >
C_FLUID CONTROL CATALOGUE
>
2018
13
CONTROL

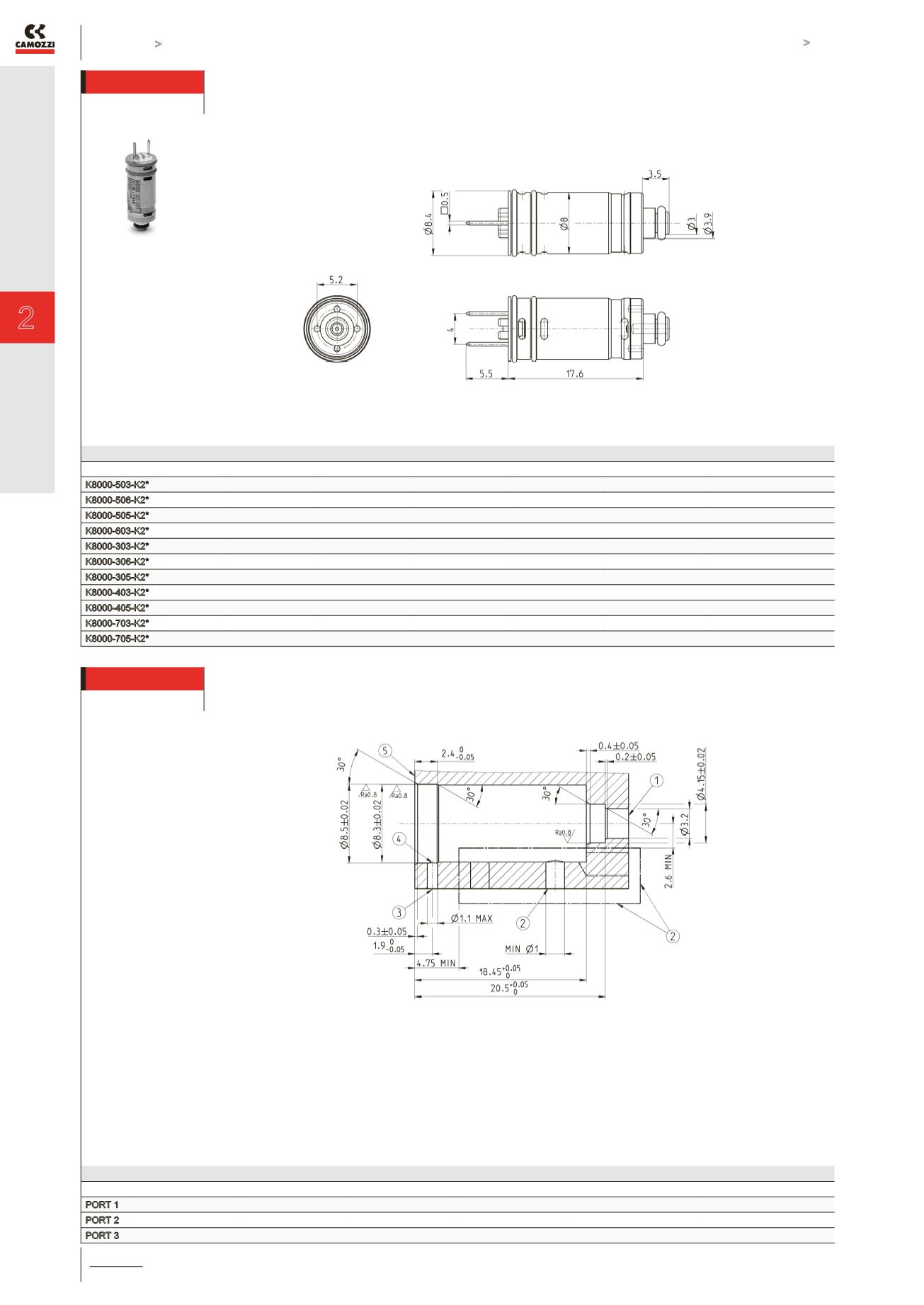

8 mm solenoid valve, 2/2-way NC, NO - 3/2 NC, NO, UNI
Mod.
Function
Orifice Ø (mm)
kv (l/min) 1 → 2
Qn (Nl/min) 1 → 2
kv (l/min) 2 → 3
Qn (Nl/min) 2 → 3
Min÷max pressure (bar)
K8000-503-K2*
2/2 NC
0.5
0.08
5
-
-
1 ÷ 7
K8000-506-K2*
2/2 NC
0.5
0.08
-
-
-
-1 ÷ 4
K8000-505-K2*
2/2 NC
0.7
0.15
-
-
-
-1 ÷ 3
K8000-603-K2*
2/2 NO
0.6
0.10
6.5
-
-
1 ÷ 7
K8000-303-K2*
3/2 NC
0.5
0.08
5
0.10
6.5
1 ÷ 7
K8000-306-K2*
3/2 NC
0.5
0.08
-
0.10
-
-1 ÷ 4
K8000-305-K2*
3/2 NC
0.7
0.15
-
0.10
-
-1 ÷ 3
K8000-403-K2*
3/2 NO
0.6
0.10
6.5
0.08
5
1 ÷ 7
K8000-405-K2*
3/2 NO
0.6
0.10
6.5
0.15
9.5
1 ÷ 7
K8000-703-K2*
3/2 UNI
0.5
0.08
-
0.10
-
0 ÷ 3
K8000-705-K2*
3/2 UNI
0.7
0.15
-
0.10
-
-1 ÷ 2
NOTE TO THE TABLE:
* to complete the code add
VOLTAGE - POWER
CONSUMPTION (see the
CODING EXAMPLE)
8 mm solenoid valve seat, 2/2-way NC, NO - 3/2 NC, NO, UNI
Note: better performances can be achieved if the valve seat holes are in line with the respective valve holes.
FUNCTION
2/2 NC
2/2 NO
3/2 NC
3/2 NO
3/2 UNI (mix.)
3/2 UNI (sel.)
PORT 1
Inlet
-
Inlet
Exhaust
Inlet
Outlet
PORT 2
Outlet
Outlet
Outlet
Outlet
Outlet
Inlet
PORT 3
-
Inlet
Exhaust
Inlet
Inlet
Outlet
LEGEND:
1 = Port 1
2 = Port 2
3 = Port 3
4 = Free from burrs
5 = Surface to be aligned
with the upper
surface of the valve
reinforcement
