www.camozzi.com.Series K8 solenoid valves
C_FLUID CONTROL CATALOGUE
2
12
>
2018
CONTROL >
CONTROL

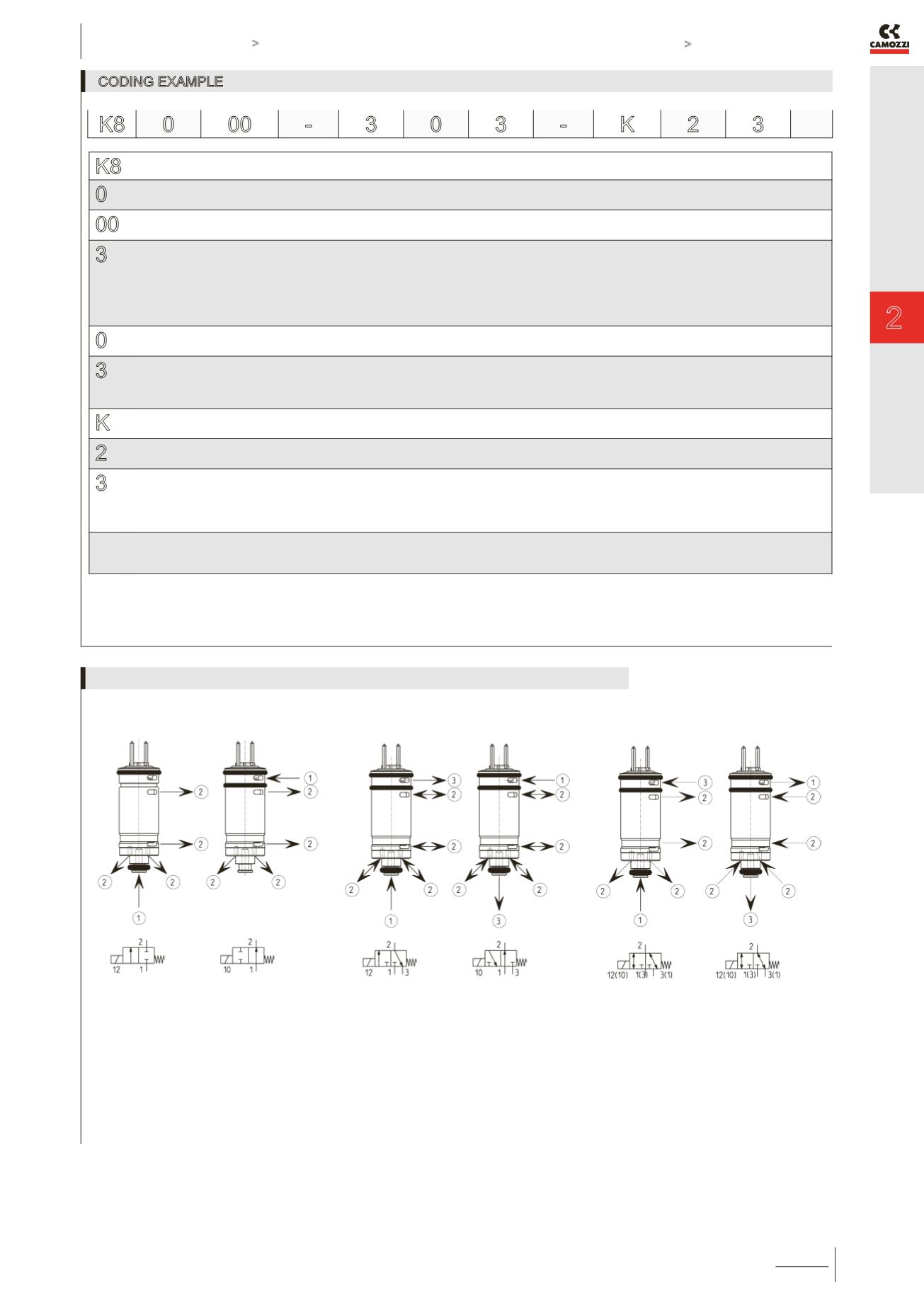

CODING EXAMPLE
K8
SERIES
0
BODY DESIGN:
0 = single valve
00
NUMBER OF POSITIONS:
00 = valve without seat
3
NUMBER OF WAYS - FUNCTIONS:
0 = single base
3 = 3-way NC
4 = 3-way NO
5 = 2-way NC
6 = 2-way NO
7 = 3-way UNI
0
MATERIALS AND SEALS:
0 = poppet, FKM seals
3
NOMINAL DIAMETER:
3 = Ø 0.5 mm (max pressure 7 bar)
5 = Ø 0.7 mm
6 = Ø 0.5 mm (max pressure 4 bar)
K
MATERIALS:
K = stainless steel body, brass cage
2
ELECTRICAL CONNECTION:
2 = pin interface size 4 mm
3
VOLTAGE - POWER CONSUMPTION:
1 = 6V DC - 0.6 W
2 = 12V DC - 0.6 W
3 = 24V DC - 0.6 W
5 = 5V DC - 0.6 W
OPTIONS:
= standard
OX1 = for use with oxygen (non volatile residual less than 550 mg/m²)
K8 0 00 -
3 0 3 -
K 2 3
2/2 NC 2/2 NO
1 = supply
2 = inlet
3/2 NC 3/2 NO
1 = supply
2 = inlet
3 = exhaust
AVAILABLE FUNCTIONS
3/2 UNI (mix.) 3/2 UNI (sel.)
1 = supply
2 = inlet
3 = exhaust
The 3/2 UNI version can be used also for
3/2 NC or 3/2 NO functions.
