Series K8B solenoid valves C_FLUID CONTROL CATALOGUE
2
16
> 2018 CONTROL >
CONTROL

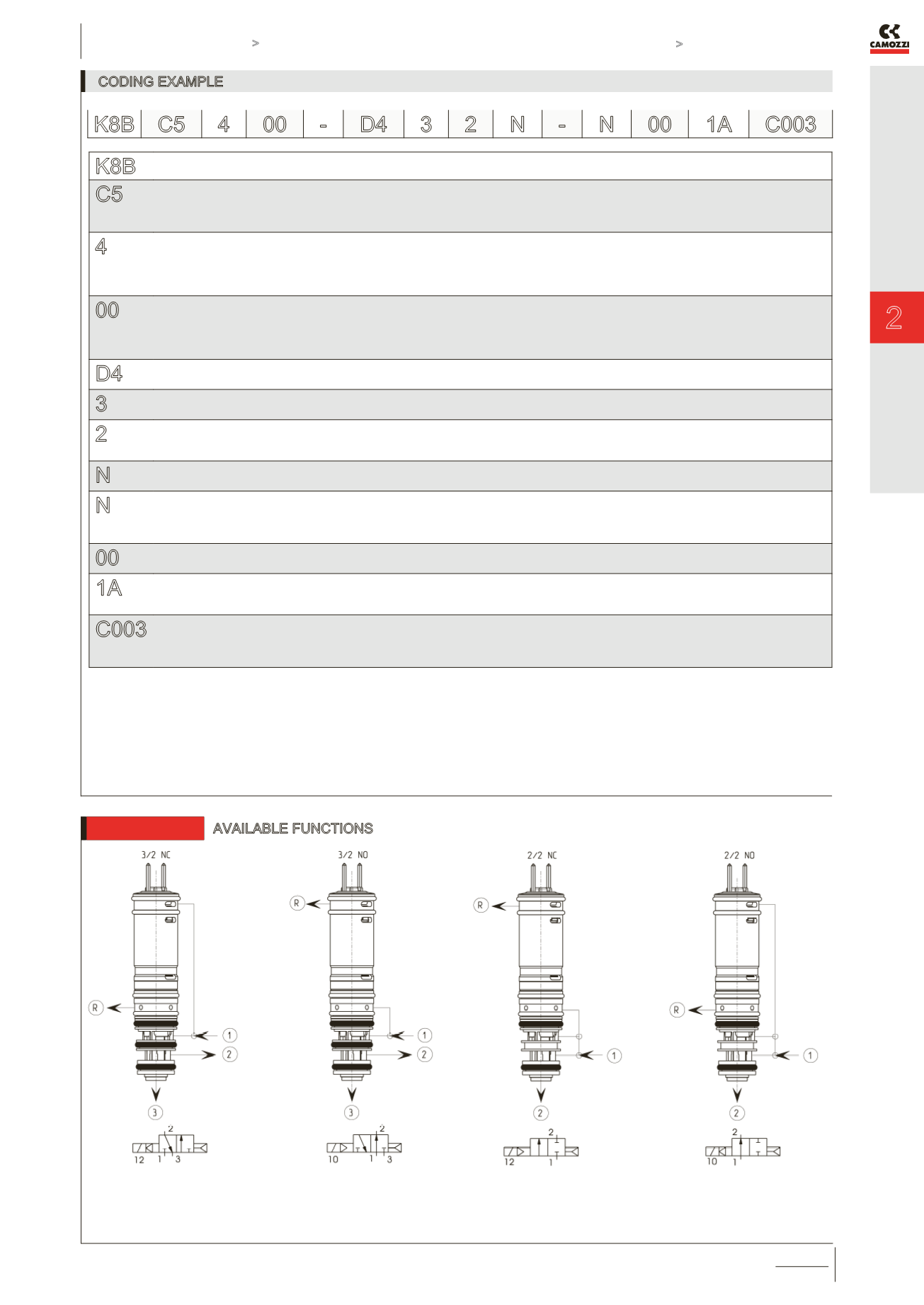

CODING EXAMPLE
K8B SERIES
C5 BODY DESIGN:
C0 = body with interface for subbase
C3 = threaded body
C5 = cartridge
4 NUMBER OF WAYS - FUNCTIONS:
1 = 2/2-way NC
2 = 2/2-way NO
4 = 3/2-way NC
5 = 3/2-way NO
00 PNEUMATIC CONNECTIONS:
00 = cartridge
03 = M7
18 = K8B-type interface, 2-way
19 = K8B-type interface, 3-way
D4 NOMINAL DIAMETER:
D4 = Ø 3.6mm
3 SEALS MATERIALS:
3 = FKM
2 BODY MATERIALS:
1 = aluminium
2 = brass
N MANUAL OVERRIDE:
N = not foreseen
N FIXING ACCESSORIES:
N = not foreseen
P = screws for plastics
M = screws for metal
00 OPTION:
00 = no option
1A ELECTRICAL CONNECTION:
1A = only pins, pitch 4mm
1B = JST connector, pitch 4mm
C003 VOLTAGE - POWER CONSUMPTION:
C001 = 6V DC (0.6 W)
C002 = 12V DC (0.6 W)
C003 = 24V DC (0.6 W)
K8B C5 4 00 - D4 3 2 N - N 00 1A C003
6512 AVAILABLE FUNCTIONS
1 = supply 1 = supply
2 = inlet 2 = inlet
3 = exhaust 3 = exhaust
R = K8 exhaust R = K8 exhaust
1 = supply 1 = supply
2 = inlet 2 = inlet
R = K8 exhaust R = K8 exhaust
