Series K8B solenoid valves CONTROL > C_FLUID CONTROL CATALOGUE > 2018
15
CONTROL

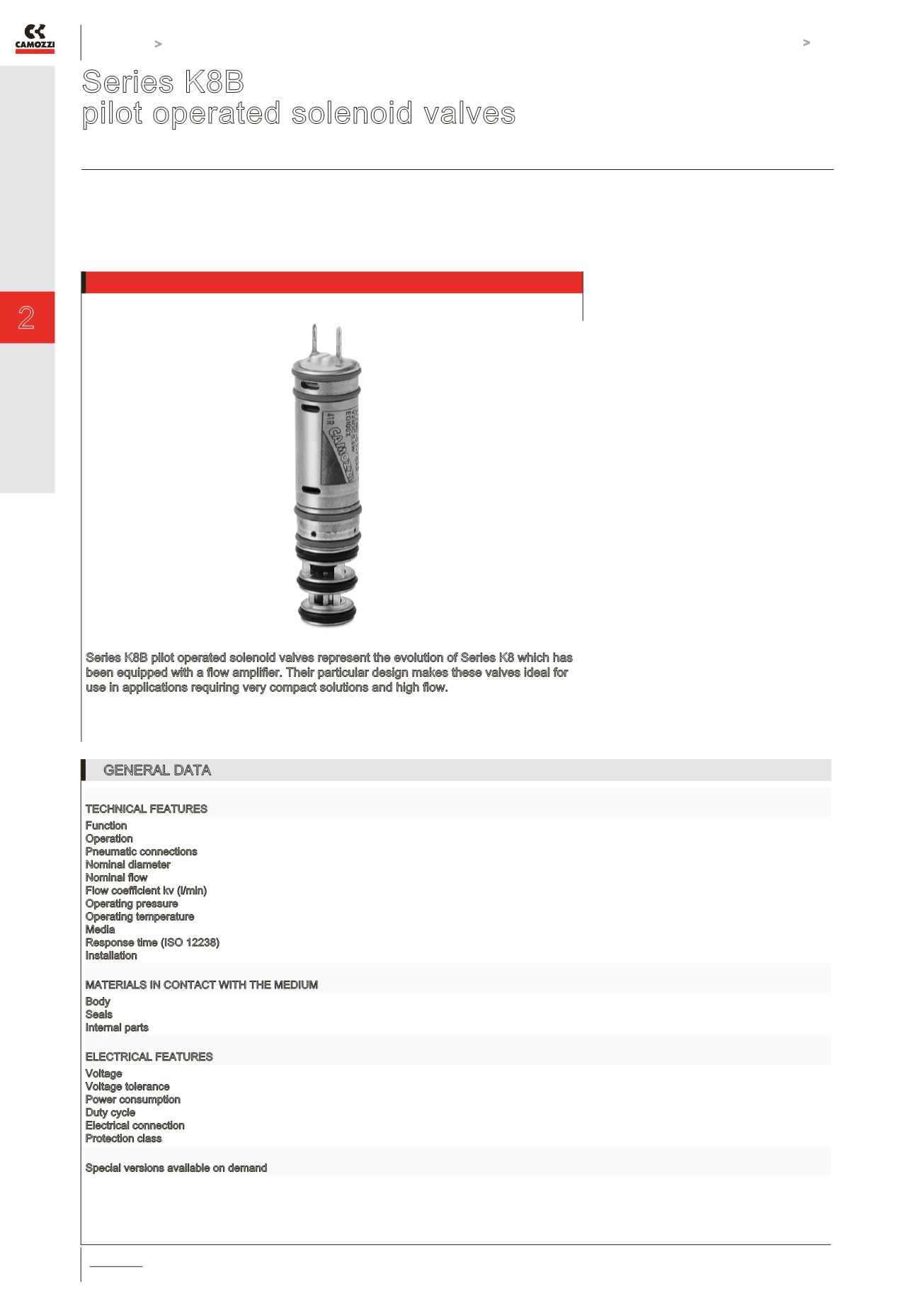

Series K8B
pilot operated solenoid valves
2/2-way - Normally Closed (NC) and Normally Open (NO)
3/2-way - Normally Closed (NC) and Normally Open (NO)
Series K8B pilot operated solenoid valves represent the evolution of Series K8 which has
been equipped with a flow amplifier. Their particular design makes these valves ideal for
use in applications requiring very compact solutions and high flow.
Thanks to their low power consumption and
light weight Series K8B solenoid valves are
particularly suitable for use with portable
equipment too.
» » Compact design
»
» High flow
» » Manifold mounting
» » Long life
GENERAL DATA
TECHNICAL FEATURES
Function
Operation
Pneumatic connections
Nominal diameter
Nominal flow
Flow coefficient kv (l/min)
Operating pressure
Operating temperature
Media
Response time (ISO 12238)
Installation
2/2 NC - 3/2 NC - 2/2 NO - 3/2 NO
pilot operated poppet type
manifold cartridge - M7 threads - on subbase with M3 screws
3.6 mm
180 Nl/min (air @ 6 bar ΔP 1 bar)
2.8
1 ÷ 7 bar
0°C ÷ 50°C
filtered compressed air, unlubricated, according to ISO 8573-1 class 3.4.3, inert gas
ON <15 msec – OFF <15 msec
in any position
MATERIALS IN CONTACT WITH THE MEDIUM
Body
Seals
Internal parts
brass - stainless steel - PBT technopolymer - aluminium
FKM
stainless steel
ELECTRICAL FEATURES
Voltage
Voltage tolerance
Power consumption
Duty cycle
Electrical connection
Protection class
24 V DC - 12 V DC - 6 V DC - other voltages on demand
±10%
0.6 W
ED 100%
2 Pin 0.5 x 0.5 pitch 4mm - JST connector with flying leads L = 300mm
IP00
Special versions available on demand
