Series CLR micro pressure regulators C_FLUID CONTROL CATALOGUE
3
176
> 2018 TREATMENT >
TREATMENT

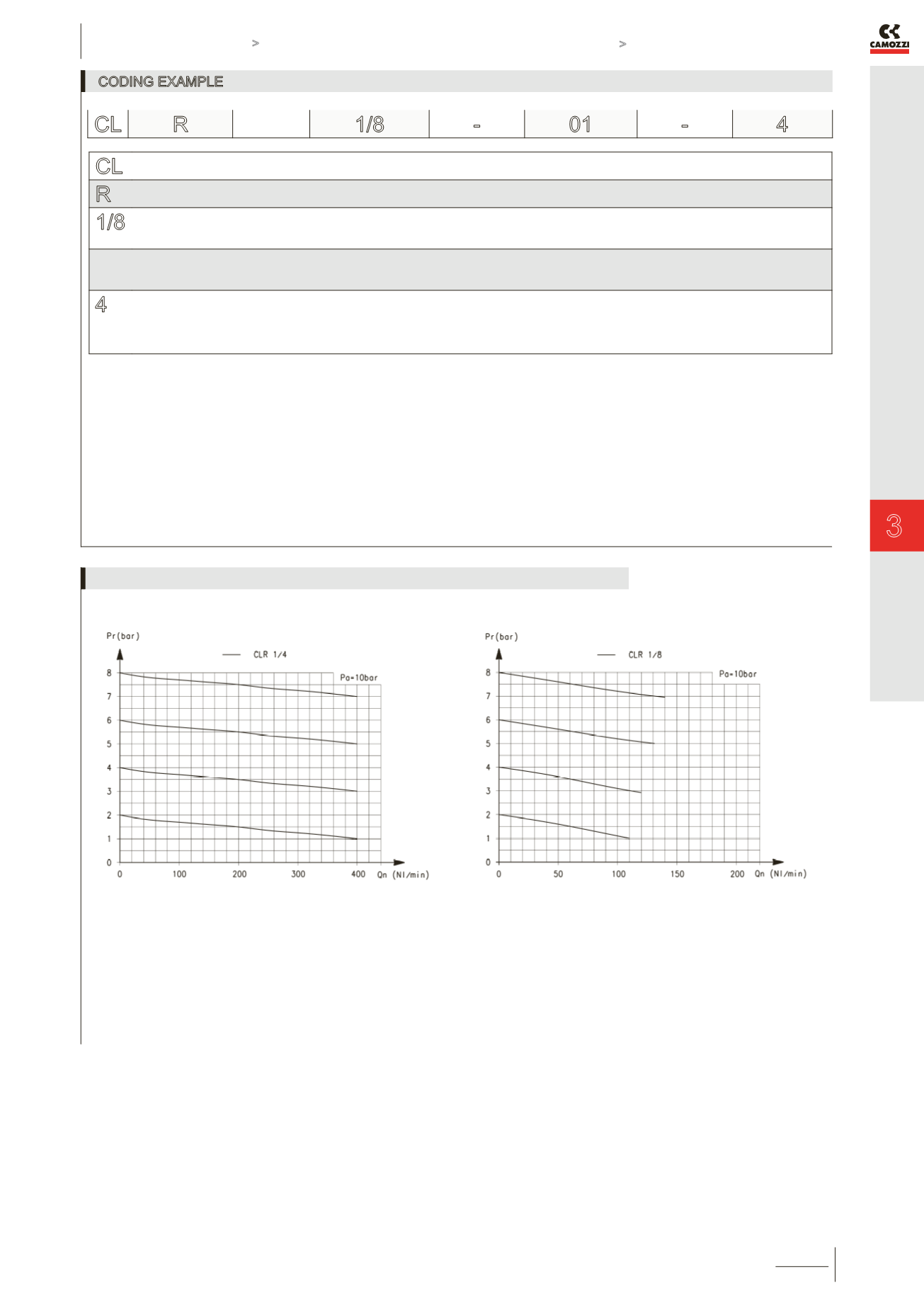

CODING EXAMPLE
CL SERIES
R R = REGULATOR
1/8 PORTS:
1/8 = G1/8
1/4 = G1/4
DESIGN TYPE:
= with relieving
01 = without relieving
4 TUBE:
= without banjo
4 = Ø4 mm (G1/8 only)
6 = Ø6 mm
8 = Ø8 mm
CL R 1/8 - 01 - 4
Pa = Inlet pressure - Pr = Regulated pressure
Qn = Flow
CLR 1/4-6 = 209 Nl/min
CLR 1/4-8 = 310 Nl/min
Pa = Inlet pressure - Pr = Regulated pressure
Qn = Flow
CLR 1/8-4 = 90 Nl/min; CLR 1/8-6 = 120 Nl/min - CLR 1/8-8 =
120 Nl/min
FLOW DIAGRAMS at 6 bar with ΔP1
