Series CLR micro pressure regulators TREATMENT > C_FLUID CONTROL CATALOGUE > 2018
177
TREATMENT
Series CLR Micro pressure regulators with banjo
Mod. A B G H L M N O S W SW SW1 SW2 Z
CLR 1/8-4 G1/8 4 11,6 5 52 M11x1 21 0÷6,5 7,75 14 14 7 14 59
CLR 1/8-6 G1/8 6 11,6 5 52 M11x1 21 0÷6,5 7,75 14 14 7 14 59
CLR 1/8-8 G1/8 8 13,9 5 52 M11x1 22,5 0÷6,5 7,75 14 14 7 14 59
CLR 1/4-6 G1/4 6 13,9 6 59,5 M12x1 24,5 0÷8 9,25 18,6 17 7 17 68
CLR 1/4-8 G1/4 8 13,9 6 59,5 M12x1 24,5 0÷8 9,25 18,6 17 7 17 68

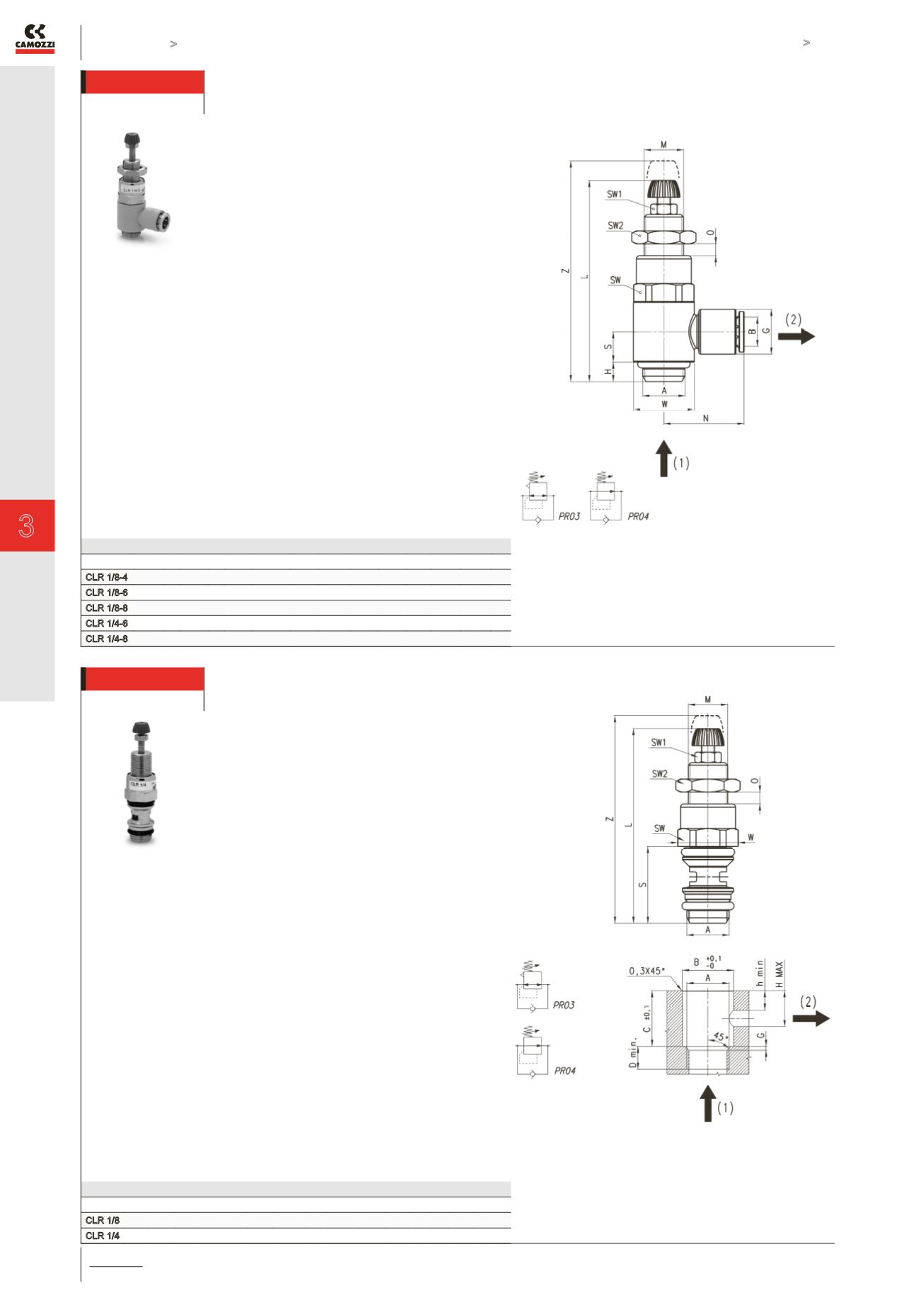

DRAWING NOTE
( 1 ) = inlet pressure
( 2 ) = regulated pressure
PR03 = Regulator with relieving
and by-pass valve
PR04 = Regulator without
relieving and with by-pass valve
Series CLR Micro pressure regulators without banjo
DIMENSIONS
Mod. A B C D min G h min H MAX L M O S W SW SW1 SW2 Z
CLR 1/8 G1/8 11 15.5 6 1 5.5 10 52 M11x1 0÷6.5 20.5 15.2 14 7 14 59
CLR 1/4 G1/4 15.65 18.5 7 1.25 7 12 59.5 M12x1 0÷8 24.5 18.5 17 7 17 68
DRAWING NOTE
( 1 ) = inlet pressure
( 2 ) = regulated pressure
PR03 = Regulator with relieving
and by-pass valve
PR04 = Regulator without
relieving and with by-pass valve
